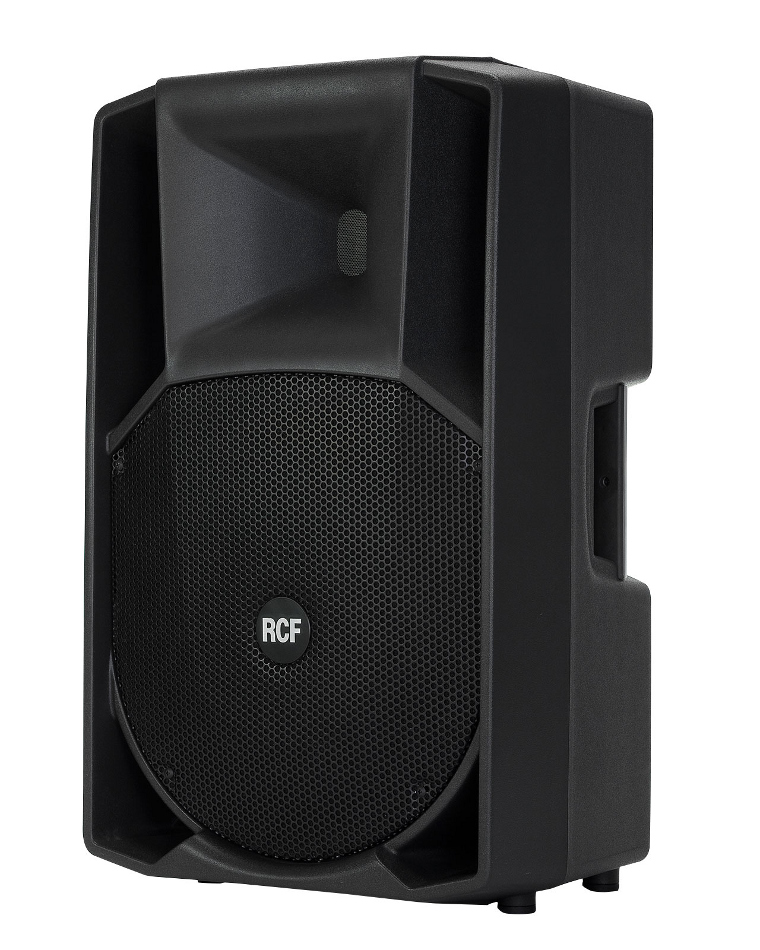

RCF ART 735-A
2-Way, 15" Active Speaker

OUR PART #  ART-735-A

Our Price: $999.00
List Price: $1,399.00
You save 29%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

RCF's ART 735-A - an active two-way speaker - is a unique product in its category. The titanium dome, 3.0” voice coil, neo compression driver offers a unique vocal clarity and sound projection. The 15” woofer offers a linear response and a precise, deep low frequency control. The transducers are built using the most advanced assembly technologies. The amplifier delivers 1,400 Watts and is controlled by a DSP that takes care of crossover, equalization, phase alignment, soft limiting and speaker protections. This speaker is best suited for compact live sound reinforcement or stage monitoring (high-output drums or keyboard), as well as frontfill and sidefill, houses of worship, ballrooms, clubs and theme parks.

RCF ART 735-A Features:

  • 1,400 Watt Peak, 700 Watt RMS digital amplifier
  • 132 dB Max SPL
  • 90° x 60°, Wide dispersion constant directivity horn
  • 15" high power woofer, bass reflex housing
  • 3.0" voice coil, titanium, compression driver
  • PFC power factor correction
  • DSP Processing
  • 20.8 Kg / 45.8 lbs.

RCF ART 735-A Specifications:

  • Acoustical:
    • Frequency Response -3 dB: 45 Hz ÷ 20 kHz
    • Max SPL: 132 dB
    • Horizontal coverage angle: 90°
    • Vertical coverage angle: 60°
    • Compression Driver: 1.4", 3.0" v.c.
    • Woofer: 15", 3.0" v.c.
  • Input/Output Section:
    • Input signal: Bal / Unbal
    • Input connectors: Combo XLR-jack
    • Output connectors: XLR
    • Input sensitivity: -2 dBu / +4 dBu
  • Processor Section:
    • Crossover frequencies: 900 Hz
    • Protections: Thermal, rms
    • Limiter: Soft limiter
    • Controls: Volume, EQ shape
  • Amplifier Section:
    • Total power: 1,400 W PEAK
    • High frequencies: 400 W PEAK
    • Low frequencies: 1,000 W PEAK
    • Total power: 700 W RMS
    • High frequencies: 200 W RMS
    • Low frequencies: 500 W RMS
    • Cooling: Convection / forced
    • Connections: VDE connector in
  • Cabinet:
    • Cabinet Material: Composite PP
    • Hardware: 2xM10 flying p.
    • Handles: 2 side, 1 top
    • Pole Mount/Cap: Yes
    • Color: Black
  • Physical Specifications:
    • Height: 708 / 27.87 mm/inch
    • Width: 437 / 17.2 mm/inch
    • Depth: 389 / 15.31 mm/inch
    • Net Weight: 19.6 / 43.2 kg/lbs.

RCF ART 735-A
2-Way, 15" Active Speaker

OUR PART #  ART-735-A

Product Information:

RCF's ART 735-A - an active two-way speaker - is a unique product in its category. The titanium dome, 3.0” voice coil, neo compression driver offers a unique vocal clarity and sound projection. The 15” woofer offers a linear response and a precise, deep low frequency control. The transducers are built using the most advanced assembly technologies. The amplifier delivers 1,400 Watts and is controlled by a DSP that takes care of crossover, equalization, phase alignment, soft limiting and speaker protections. This speaker is best suited for compact live sound reinforcement or stage monitoring (high-output drums or keyboard), as well as frontfill and sidefill, houses of worship, ballrooms, clubs and theme parks.

RCF ART 735-A Features:

  • 1,400 Watt Peak, 700 Watt RMS digital amplifier
  • 132 dB Max SPL
  • 90° x 60°, Wide dispersion constant directivity horn
  • 15" high power woofer, bass reflex housing
  • 3.0" voice coil, titanium, compression driver
  • PFC power factor correction
  • DSP Processing
  • 20.8 Kg / 45.8 lbs.

RCF ART 735-A Specifications:

  • Acoustical:
    • Frequency Response -3 dB: 45 Hz ÷ 20 kHz
    • Max SPL: 132 dB
    • Horizontal coverage angle: 90°
    • Vertical coverage angle: 60°
    • Compression Driver: 1.4", 3.0" v.c.
    • Woofer: 15", 3.0" v.c.
  • Input/Output Section:
    • Input signal: Bal / Unbal
    • Input connectors: Combo XLR-jack
    • Output connectors: XLR
    • Input sensitivity: -2 dBu / +4 dBu
  • Processor Section:
    • Crossover frequencies: 900 Hz
    • Protections: Thermal, rms
    • Limiter: Soft limiter
    • Controls: Volume, EQ shape
  • Amplifier Section:
    • Total power: 1,400 W PEAK
    • High frequencies: 400 W PEAK
    • Low frequencies: 1,000 W PEAK
    • Total power: 700 W RMS
    • High frequencies: 200 W RMS
    • Low frequencies: 500 W RMS
    • Cooling: Convection / forced
    • Connections: VDE connector in
  • Cabinet:
    • Cabinet Material: Composite PP
    • Hardware: 2xM10 flying p.
    • Handles: 2 side, 1 top
    • Pole Mount/Cap: Yes
    • Color: Black
  • Physical Specifications:
    • Height: 708 / 27.87 mm/inch
    • Width: 437 / 17.2 mm/inch
    • Depth: 389 / 15.31 mm/inch
    • Net Weight: 19.6 / 43.2 kg/lbs.
