Martin Professional RUSH FiberSource 1
78W LED Fiber Optic Engine


Martin's Professional RUSH FiberSource 1, a highly anticipated update to the FiberSource QFX 150, and welcome addition to the RUSH by Martin family...
Learn More
Our Price: $699.00
List Price: $873.75
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Martin Professional RUSH FiberSource 1
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

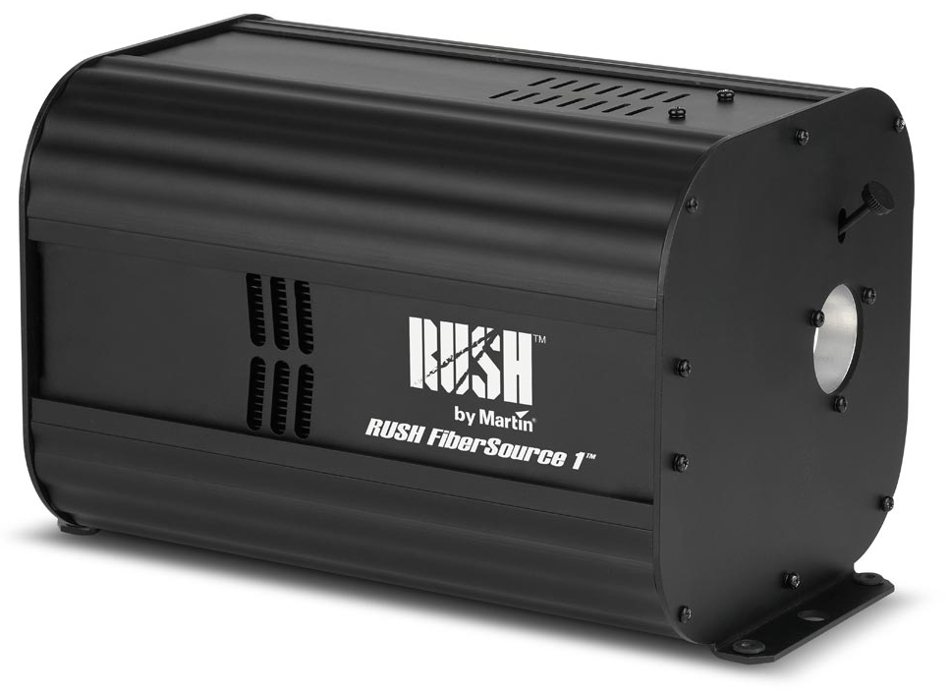

Martin's Professional RUSH FiberSource 1, a highly anticipated update to the FiberSource QFX 150, and welcome addition to the RUSH by Martin family, is a powerful tool for illuminating fiber optic cables in permanent installations. With a 78 W LED fiber projector, the RUSH FiberSource 1 boasts solid efficiency and reliability while retaining all the key features of its predecessor, such as 9 interchangeable colors, a twinkle effects wheel, electronic dimming, and DMX/stand-alone control.

Martin Professional RUSH FiberSource 1 Includes:

  • Power cable, 1.5 m (4.9 ft.), without mains plug
  • Color filter M05, blue 108L with adaptor
  • Color filter M05, yellow 603L with adaptor
  • Color filter M05, green 206L with adaptor
  • Color filter M05, red 308L with adaptor

Martin Professional RUSH FiberSource 1 Features:

  • 78 W LED fiber projector
  • 9 interchangeable colors
  • 0-100% electronic intensity control
  • Twinkle effect wheel
  • DMX or stand-alone control
  • Up to 300 fiber cables (1 mm)

Martin Professional RUSH FiberSource 1 Specifications:

  • Manufacturer part #: 90280070
  • Physical:
    • Dimensions: 12.0" L x 8.3" W x 7.9 H (305 x 210 x 200mm)
    • Weight: 16.8 lbs. (7.6 kg)
  • Dynamic Effects:
    • Color wheel: 9 interchangeable filters + open, indexing, continuous rotation
    • Twinkle effect: Continuous rotation, variable speed and direction
    • Dimmer: 0 - 100% continuous dimming
  • Control and Programming:
    • Control options: DMX, standalone, master/slave
    • DMX channels: 5
    • Standalone programming: DIP switch
    • Settings and DMX addressing: DIP switch
    • DMX compliance: USITT DMX512/1990
  • Optics:
    • Light source: CREE 78 W LED
    • Color temperature: 6000–7000 K CRI (color rendering index): >70 Minimum LED lifetime: 35 000 hours (to >70% luminous output)*
      *Figure obtained under test conditions
  • Construction:
    • Color: Black (RAL 9005)
    • Housing: Steel and aluminum
    • Protection rating: IP20
  • Installation:
    • Mounting points: Four rubber-mounting grommets, two Ø13 mm holes for rigging clamps
    • Location: Indoor use only, must be fastened to surface or structure
    • Minimum distance to combustible materials: 0.2 m (7.9 in.)
    • Minimum clearance around fans and vents: 0.1 m (4.0 in.)
    • Orientation: Any
  • Connections:
    • AC power in/out: Neutrik PowerCon
    • DMX data in/out: 3-pin and 5-pin locking XLR
  • Electrical:
    • AC power: 100-240 V, 50/60 Hz
    • Power supply unit: Auto-ranging electronic switch-mode
  • Typical Power and Current:
    • 110 V, 60 Hz: 0.8 A, 87 W, PF 0.986
    • 230 V, 50 Hz: 0.5 A, 86 W, PF 0.909
      Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
  • Thermal:
    • Cooling: Forced air (regulated, low noise)
    • Maximum ambient temperature (Ta max.): 40° C (104° F)
    • Minimum ambient temperature (Ta min.): 5° C (41° F)
    • Maximum surface temperature, steady state, Ta=40º C: 50º C (122° F)
  • Approvals:
    • EU Safety: EN 60598-2-1
    • EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61547
    • US Safety: ANSI/UL 1598
    • US EMC: FCC Part 15 Class A
    • Canadian Safety: CSA C22.2 No. 250.0
    • Australia/NZ: C-TICK N4241
