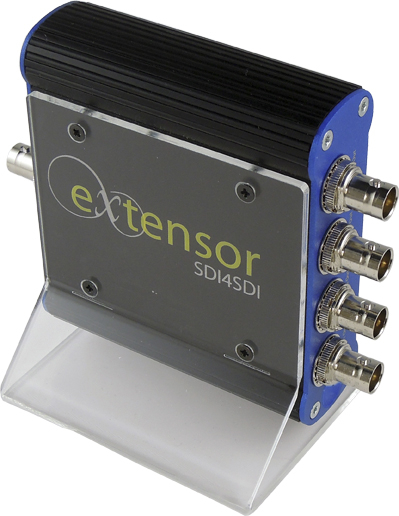

Vitec Extensor SDI4SDI
1x 4 HD-SDI DA

OUR PART #  SDI4SDI

Our Price: $339.48
List Price: $345.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Vitec Extensor SDI4SDI allows simultaneous distribution of a SDI, HD-SDI, and 3G- SDI video source to (4) SDI, HD-SDI, and 3G -SDI devices. It automatically adapts the video formats between SD and HD, plus it supports the full range of video resolution formats and frame rates.  This compact device features a lockable connector to the power supply to prevent accidental disconnection, can be placed on a table or wall mounted, and has a LED indicator to signal the unit is operational.

Vitec Extensor SDI4SDI Features:

  • Distributes (1) SDI , HD-SDI and 3G-SDI video source to HD-SDI x 4 @ 3 GB / s
  • Automatic adaptation between SD and HD formats
  • Supported Frame Rates:
    • 1080p @ 23.98 / 24 / 25 / 29.97 / 30/50 / 59.94 / 60 frames per second
    • 1080i @ 25 / 29.97 / 30 fps
    • 720p @ 50 / 59.94 / 60 fps
    • 576i , 480i @ 25 / 29.97 fps
  • Flexible mounting options

Vitec Extensor SDI4SDI Specifications:

Video

  • Input: 1x HD-SDI (3Gb/s)
  • Output: 4x HD-SDI (3Gb/s) loop through

Standards Supported

  • Inputs & Outputs: SMPTE-259M, SMPTE-292M, SMPTE-424M, and SMPTE-425

Advanced Features

  • Auto-adaptation between Standard Definition and High Definition video formats
  • Power supply provided with a lockable connector and country adapter
  • Led notifications

Frame Rates Supported

  • 1080p @ 23.97 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 frames per second
  • 1080i @ 25 / 29.97 / 30 frames per second
  • 720p @ 50 / 59.94 / 60 frames per second
  • 480p, 576p, PAL, NTSC

Power

  • DC Input: 12VDC, Max 9W

Vitec Extensor SDI4SDI
1x 4 HD-SDI DA

OUR PART #  SDI4SDI

Product Information:

The Vitec Extensor SDI4SDI allows simultaneous distribution of a SDI, HD-SDI, and 3G- SDI video source to (4) SDI, HD-SDI, and 3G -SDI devices. It automatically adapts the video formats between SD and HD, plus it supports the full range of video resolution formats and frame rates.  This compact device features a lockable connector to the power supply to prevent accidental disconnection, can be placed on a table or wall mounted, and has a LED indicator to signal the unit is operational.

Vitec Extensor SDI4SDI Features:

  • Distributes (1) SDI , HD-SDI and 3G-SDI video source to HD-SDI x 4 @ 3 GB / s
  • Automatic adaptation between SD and HD formats
  • Supported Frame Rates:
    • 1080p @ 23.98 / 24 / 25 / 29.97 / 30/50 / 59.94 / 60 frames per second
    • 1080i @ 25 / 29.97 / 30 fps
    • 720p @ 50 / 59.94 / 60 fps
    • 576i , 480i @ 25 / 29.97 fps
  • Flexible mounting options

Vitec Extensor SDI4SDI Specifications:

Video

  • Input: 1x HD-SDI (3Gb/s)
  • Output: 4x HD-SDI (3Gb/s) loop through

Standards Supported

  • Inputs & Outputs: SMPTE-259M, SMPTE-292M, SMPTE-424M, and SMPTE-425

Advanced Features

  • Auto-adaptation between Standard Definition and High Definition video formats
  • Power supply provided with a lockable connector and country adapter
  • Led notifications

Frame Rates Supported

  • 1080p @ 23.97 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 frames per second
  • 1080i @ 25 / 29.97 / 30 frames per second
  • 720p @ 50 / 59.94 / 60 frames per second
  • 480p, 576p, PAL, NTSC

Power

  • DC Input: 12VDC, Max 9W
