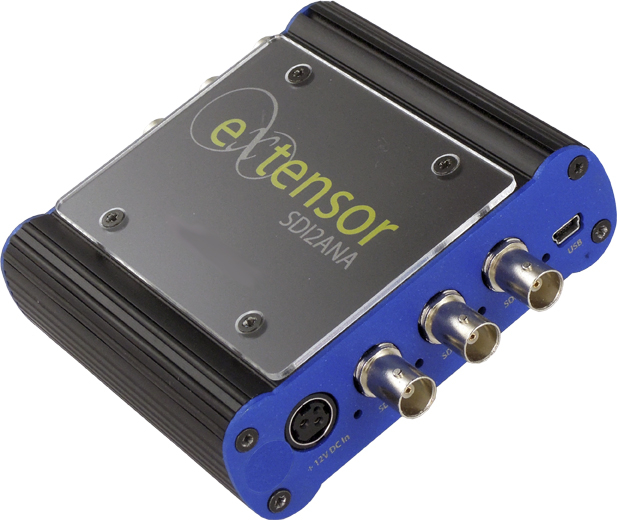

Vitec Extensor SDI2ANA
SDI to Analog Video Converter

OUR PART #  SDI2ANA

Our Price: $595.32
List Price: $605.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

With Vitec's Extensor SDI2ANA you'll be able to seamlessly convert HD-SDI video to analog video with optional downscaling, as well as convert the first pair of audio embedded in SDI to stereo unbalanced audio and digital audio AES/EBU. The full range of video resolution formats and frame rates is supported, with progressive to progressive, interlaced to interlaced and interlaced to progressive downscaling available on the output. Its on-screen display overlays all status information directly on the video output signal and an embedded standardized color bar pattern facilitates equipment calibration. Extensor SDI2ANA features a lockable connector on the power supply to prevent accidental disconnection. The compact device may be placed on a tabletop or wall mounted. Settings can be easily adjusted with the mini-switch on the side of the converter; software upgrades can be installed via the USB connector, and a LED indicator signals that the unit is operating.

Vitec Extensor SDI2ANA Feature Highlights:

  • Converts SDI (BNC) to 1 x YUV (3 BNC) or 1 x RGB (3 BNC)
  • Converts 1 x embedded audio in SDI to 1 x stereo unbalanced audio and 1 x digital audio AES/EBU
  • Inputs: 2 x HD-SDI 3 Gb/s
  • Outputs: 1 x Analog, 1 x HD-SDI 3 Gb/s loop-through
  • Frame rates supported include: 1080p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 frames per second;  1080i at 25 / 29.97 / 30 frames per second;  720p at 50 / 59.94 / 60 frames per second; 576i, 480i at 25 / 29.97 frames per second
  • PsF mode

Vitec Extensor SDI2ANA Specifications:

Video I/O

  • Input:
    • 2x HD-SDI (3 Gb/s) with embedded audio (up to 8 pairs)
    • SDI Compliance:
      • SMPTE-259M, SMPTE-292M, SMPTE-424M, and SMPTE-425-A
  • Output:
    • 1x Analog
    • 1x HD-SDI (3Gb/s) loop through
    • Downscaling available for each output (progressive > progressive or interlaced > interlaced or interlaced > progressive)

Conversion I/O

  • Video:
    • Input: 1x HD-SDI (BNC)
    • Output:
      • 1x YUV (3 BNC)
      • 1x RGB (3 BNC)
  • Audio:
    • Input: 1x Embedded audio in SDI (up to 48 pairs)
    • Output:
      • 1x Stereo unbalanced audio
      • 1x Digital audio AES / EBU

Frame Rates Supported

  • 1080p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 frames per second
  • 1080i at 25 / 29.97 / 30 frames per second
  • 720p at 50 / 59.94 / 60 frames per second
  • 576i, 480i at 25 / 29.97 frames per second

Vitec Extensor SDI2ANA
SDI to Analog Video Converter

OUR PART #  SDI2ANA

Product Information:

With Vitec's Extensor SDI2ANA you'll be able to seamlessly convert HD-SDI video to analog video with optional downscaling, as well as convert the first pair of audio embedded in SDI to stereo unbalanced audio and digital audio AES/EBU. The full range of video resolution formats and frame rates is supported, with progressive to progressive, interlaced to interlaced and interlaced to progressive downscaling available on the output. Its on-screen display overlays all status information directly on the video output signal and an embedded standardized color bar pattern facilitates equipment calibration. Extensor SDI2ANA features a lockable connector on the power supply to prevent accidental disconnection. The compact device may be placed on a tabletop or wall mounted. Settings can be easily adjusted with the mini-switch on the side of the converter; software upgrades can be installed via the USB connector, and a LED indicator signals that the unit is operating.

Vitec Extensor SDI2ANA Feature Highlights:

  • Converts SDI (BNC) to 1 x YUV (3 BNC) or 1 x RGB (3 BNC)
  • Converts 1 x embedded audio in SDI to 1 x stereo unbalanced audio and 1 x digital audio AES/EBU
  • Inputs: 2 x HD-SDI 3 Gb/s
  • Outputs: 1 x Analog, 1 x HD-SDI 3 Gb/s loop-through
  • Frame rates supported include: 1080p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 frames per second;  1080i at 25 / 29.97 / 30 frames per second;  720p at 50 / 59.94 / 60 frames per second; 576i, 480i at 25 / 29.97 frames per second
  • PsF mode

Vitec Extensor SDI2ANA Specifications:

Video I/O

  • Input:
    • 2x HD-SDI (3 Gb/s) with embedded audio (up to 8 pairs)
    • SDI Compliance:
      • SMPTE-259M, SMPTE-292M, SMPTE-424M, and SMPTE-425-A
  • Output:
    • 1x Analog
    • 1x HD-SDI (3Gb/s) loop through
    • Downscaling available for each output (progressive > progressive or interlaced > interlaced or interlaced > progressive)

Conversion I/O

  • Video:
    • Input: 1x HD-SDI (BNC)
    • Output:
      • 1x YUV (3 BNC)
      • 1x RGB (3 BNC)
  • Audio:
    • Input: 1x Embedded audio in SDI (up to 48 pairs)
    • Output:
      • 1x Stereo unbalanced audio
      • 1x Digital audio AES / EBU

Frame Rates Supported

  • 1080p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 frames per second
  • 1080i at 25 / 29.97 / 30 frames per second
  • 720p at 50 / 59.94 / 60 frames per second
  • 576i, 480i at 25 / 29.97 frames per second
