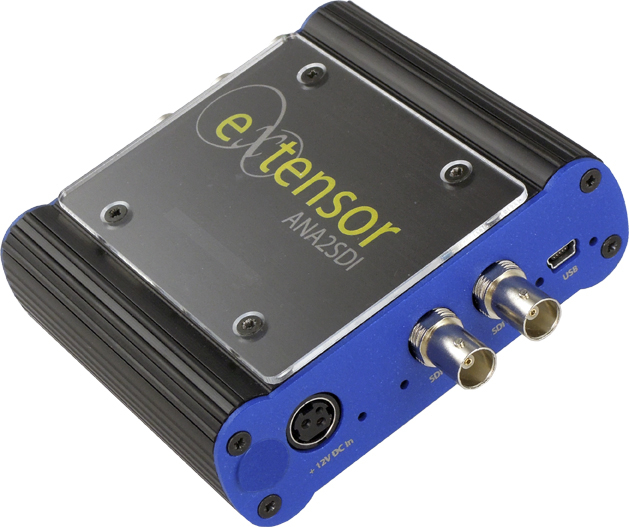

Vitec Extensor ANA2SDI
Analog to SDI Video Converter

OUR PART #  ANA2SDI

Our Price: $595.32
List Price: $605.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

With the Vitec Extensor ANA2SDI, you can seamlessly convert analog video to HD-SDI with optional downscaling, as well as convert stereo unbalanced audio and digital audio AES/EBU to embedded audio in SDI. The full range of video resolution formats and frame rates is supported, with progressive to progressive and interlaced to interlaced downscaling available on each output.  The Extensor ANA2SDI features two 3Gb/s HD-SDI outputs that can operate redundantly or stream HD-SDI video simultaneously to two devices at identical or different resolutions. Its on-screen display overlays all status information directly on the video output signal and an embedded standardized color bar pattern facilitates equipment calibration. Extensor ANA2SDI features a lockable connector on the power supply to prevent accidental disconnection. The compact device may be placed on a tabletop or wall mounted. Extensor ANA2SDI settings can be adjusted easily using the mini-switch on the side of the converter; software upgrades can be installed via the USB connector, and a LED indicator signals that the unit is operating.

Vitec Extensor ANA2SDI Feature Highlights:

  • Converts 1 x YUV, 1 x S-video or composite to 2 x SDI (BNC)
  • Converts 1 x stereo unbalanced audio or 1 x digital audio AES/EBU to 1 x embedded audio in SDI (stereo)
  • Inputs: 1 x YUV (3 BNC), 1 x S-video (2 BNC) and 1 x composite (1 BNC)
  • Outputs: 2 x HD-SDI 3 Gb/s for redundant output
  • Frame rates supported include 1080p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 frames per second; 1080i at 25 / 29.97 / 30 frames per second; 720p at 50 / 59.94 / 60 frames per second; 576i, 480i, 576p, 480p at 25 / 29.97 frames per second
  • PsF mode

Vitec Extensor ANA2SDI Specifications:

Video I/O

  • Input:
    • 1x YUV (3 BNC)
    • 1x S-video (2 BNC)
    • 1x Composite (1 BNC)
  • Output:
    • 2x HD-SDI (3Gb/s) for redundant output
    • Downscaling available for each output (progressive > progressive or interlaced > interlaced or interlaced > progressive)
    • SDI Compliance: SMPTE-259M, SMPTE-292M, SMPTE-424M & SMPTE-425-A

Conversion I/O

  • Video:
    • Input:
      • 1x YUV
      • 1x S-video
    • Output:
      • 2x HD-SDI (BNC)
  • Audio:
    • Input:
      • 1x Stereo unbalanced audio
      • 1x Digital audio AES / EBU
    • Output:
      • 1x Embedded audio in SDI (Stereo)

Frame Rates Supported

  • 1080p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 frames by second
  • 1080i at 25 / 29.97 / 30 frames by second
  • 720p at 50 / 59.94 / 60 frames by second
  • 576p, 480p, 576i, 480i at 25 / 29.97 frames by second

Vitec Extensor ANA2SDI
Analog to SDI Video Converter

OUR PART #  ANA2SDI

Product Information:

With the Vitec Extensor ANA2SDI, you can seamlessly convert analog video to HD-SDI with optional downscaling, as well as convert stereo unbalanced audio and digital audio AES/EBU to embedded audio in SDI. The full range of video resolution formats and frame rates is supported, with progressive to progressive and interlaced to interlaced downscaling available on each output.  The Extensor ANA2SDI features two 3Gb/s HD-SDI outputs that can operate redundantly or stream HD-SDI video simultaneously to two devices at identical or different resolutions. Its on-screen display overlays all status information directly on the video output signal and an embedded standardized color bar pattern facilitates equipment calibration. Extensor ANA2SDI features a lockable connector on the power supply to prevent accidental disconnection. The compact device may be placed on a tabletop or wall mounted. Extensor ANA2SDI settings can be adjusted easily using the mini-switch on the side of the converter; software upgrades can be installed via the USB connector, and a LED indicator signals that the unit is operating.

Vitec Extensor ANA2SDI Feature Highlights:

  • Converts 1 x YUV, 1 x S-video or composite to 2 x SDI (BNC)
  • Converts 1 x stereo unbalanced audio or 1 x digital audio AES/EBU to 1 x embedded audio in SDI (stereo)
  • Inputs: 1 x YUV (3 BNC), 1 x S-video (2 BNC) and 1 x composite (1 BNC)
  • Outputs: 2 x HD-SDI 3 Gb/s for redundant output
  • Frame rates supported include 1080p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 frames per second; 1080i at 25 / 29.97 / 30 frames per second; 720p at 50 / 59.94 / 60 frames per second; 576i, 480i, 576p, 480p at 25 / 29.97 frames per second
  • PsF mode

Vitec Extensor ANA2SDI Specifications:

Video I/O

  • Input:
    • 1x YUV (3 BNC)
    • 1x S-video (2 BNC)
    • 1x Composite (1 BNC)
  • Output:
    • 2x HD-SDI (3Gb/s) for redundant output
    • Downscaling available for each output (progressive > progressive or interlaced > interlaced or interlaced > progressive)
    • SDI Compliance: SMPTE-259M, SMPTE-292M, SMPTE-424M & SMPTE-425-A

Conversion I/O

  • Video:
    • Input:
      • 1x YUV
      • 1x S-video
    • Output:
      • 2x HD-SDI (BNC)
  • Audio:
    • Input:
      • 1x Stereo unbalanced audio
      • 1x Digital audio AES / EBU
    • Output:
      • 1x Embedded audio in SDI (Stereo)

Frame Rates Supported

  • 1080p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 frames by second
  • 1080i at 25 / 29.97 / 30 frames by second
  • 720p at 50 / 59.94 / 60 frames by second
  • 576p, 480p, 576i, 480i at 25 / 29.97 frames by second
