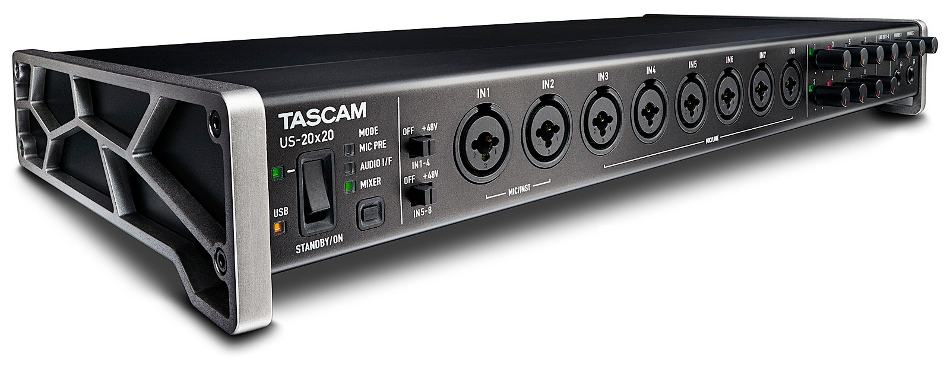

Tascam US-20x20
20x20 Celesonic USB 3.0/2.0 Audio Interface and Digital Mixer

OUR PART #  US20X20

Our Price: $499.99
List Price: $649.99
You save 23%! (Low Price Guarantee)
In Stock

Tascam’s US-20x20 "Celesonic", the flagship of their audio interface line, is designed for use in professional recording facilities or project studios while supporting 192 kHz and utiliziling USB 3.0. With added features such as Mic Preamp Mode and Mixer Mode, it becomes a versatile tool – along with being an interface for multi-channel recording.

The unit’s eight Tascam Ultra-HDDA mic preamps have an equivalent input noise (EIN) of –125 dBu, and 20 dB of headroom on the microphone and line inputs allow it to easily handle high SPL transients from percussion and instruments. Utilizing a high-performance Blackfin processor, the US-20x20 offers an advanced DSP mixer including EQ, compression and reverb effects on each channel. The processor not only excels on the dynamics and effects, but enables multi-channel transmission via USB 3.0 for the studio.

Additional features enable the seamless workflow of the professional engineer. Mode switching provides the options of using the US-20x20 as a standalone mic preamp, an audio interface, or as a mixer for sound reinforcement applications.

Complete connectivity to various types of audio equipment is achieved by utilizing the analog inputs and outputs, digital input and output via coaxial and optical connectors, MIDI, and word clock BNC connectors. The radical eye-catching style and angled industrial design of the US-20x20 make desktop recording a breeze.

The original Ultra-HDDA mic preamps allow you to input high-quality audio from any audio source just by turning a knob. These are the same mic preamps that are in Tascam’s HS-P82 professional recorders, which are popular in the broadcast and film industry. These preamps can handle both condenser and dynamic mics, and will allow you to enjoy high-quality recording even if you’re not an expert. These versatile preamps also feature line-level inputs for keyboards and other equipment. Guitars can be directly connected enabling the use of 3rd-party plug-in effects, and its wide dynamic range can easily handle the sound pressures of drum recording.

20 inputs and 20 outputs for recording versatility

With eight XLR/TRS inputs and two TRS inputs switchable between -10 dB and +4 dB, multi-channel digital inputs via S/PDIF coaxial, and optical digital connectors, a total of 20 simultaneous inputs is possible when operating at 44.1 kHz or 48 kHz. As with the inputs, 20 simultaneous outputs is possible at 44.1 kHz or 48 kHz utilizing the ten TRS outputs, S/PDIF coaxial and optical digital outputs (which enable connection with an external AD/DA converter). The optical input/output support S/MUX2 and S/MUX4 - required for high sampling rates. It is possible to configure a 16-microphone recording system using two US-20x20s and the optical digital connections.
*Note: When operating at 88.2 kHz or 96 kHz, up to 16 inputs and 16 outputs are possible. When operating at 176.4 kHz or 192 kHz, up to 12 inputs and 12 outputs are possible .

Three switchable modes
The versatile US-20x20 is an Interface for multitrack recording using a personal computer and DAW, a standalone mic preamp, or a mixer for live performances. Mic Preamp mode enables its use as a microphone preamp for analog/digital input, whereas the Mixer mode enables its use for either PA/SR or as a keyboard mixer.

Advanced DSP mixer paired with a USB driver
An obstacle with computer-based recording is latency (delayed audio signals). Driver software has been developed to eliminate latency issues and driver setup problems. The built-in mixer utilizes the high-performance Dual Core BlackFin DSP making it possible to offer 4-band EQ and compression on each channel. A reverb effect for monitoring enhances the performer’s motivation, and driver software can be installed without connecting the interface.
*Note: When operating at 176.4 kHz or 192 kHz, the effects (EQ, compression, phase and reverb) of the DSP mixer cannot be used.

Support for iOS devices and compatibility with many DAW applications
You will not need another audio interface if you decide you want to make music using an iPad or other iOS device. The performance of these interfaces has been tested with major DAWs - you can continue to use them even if you change DAW software. Since these units include MIDI inputs and outputs, they can also be used as MIDI interfaces. They connect with an iPad or other iOS device, and have been tested with Sonar, Pro Tools, Cubase, Live, Studio One and GarageBand. MIDI input and output enables connection with keyboards and other MIDI devices.

Tascam US-20x20 Includes:

  • Rack mount adapter
  • Dedicated AC adapter

Tascam US-20x20 Features:

  • High-quality Ultra-HDDA (High Definition DiscreteArchitecture) microphone pre-amps with ultra-low noise (EIN: –125 dBu)
  • Recording at up to 192 kHz/24 bit
  • Support for Windows and Mac operating systems
  • USB 3.0 or USB 2.0 computer connection for 40-channel audio transmission at 44.1/48 kHz or 24-channel audio transmission at 176.4/192 kH:
    • 20 inputs/20 outputs available at 44.1/48 kHz/24 bit (10 analog channels + 2 digital S/PDIF channels + 8 optical channels)
    • 16 inputs/16 outputs available at 88.2/96 kHz/24 bit (10 analog channels + 2 digital S/PDIF channels + 4 S/MUX optical channels)
    • 12 inputs/12 outputs available at 176.4/192 kHz/24 bit (10 analog channels + 2 digital S/PDIF channels)
  • Three operation modes: audio interface, standalone mic preamp, digital mixer
  • DSP mixer with 4-band EQ and compression on each input channel (can be used in Interface/Mixer mode)
  • Patch bay allows outputs to be assigned freely (can be used in Interface/Mixer mode)
  • DSP mixer settings can be stored in up to 10 scenes
  • USB Audio Compliance 2.0 for iPads and other iOSdevices
  • Reverb effect can be added to the monitored audio
  • Low-latency monitoring via the DSP mixer
  • Inputs and outputs:
    • Eight XLR/TRS combo jack analog inputs with switchable phantom power (48 V)
    • Inputs 1 and 2 can be used for direct guitar input
    • Two TRS (balanced) inputs on rear panel
    • Input level range of 56 dB for using dynamic mics
    • Ten TRS (balanced) analog outputs
    • TOS LINK optical digital multi-channel input and output (8 channels at 44.1/48 kHz, supporting S/MUX2 and S/MUX4)
    • S/PDIF coaxial digital input and output
    • BNC word clock input and output
    • Two standard TRS headphones outputs with 2 x 70 mW output power
    • Separate controls for line and headphones output levels
    • MIDI input/output
  • Other features:
    • DAW compatibility (Sonar, ProTools, Cubase, Live, Studio One, Garage Band)
    • Angled industrial design provides excellent usability on a desktop

Tascam US-20x20 Specifications:

  • General:
    • Sampling frequencies:
      • USB 3.0: 44.1/48/88.2/96/176.4/192 kHz
      • USB 2.0: 44.1/48/88.2/96 kHz
    • Quantization bit depth: 16/24-bit
  • Analog Inputs:
    • Mic inputs (balanced, IN1–IN2): XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)
      • Input impedance: 2.4 kOhm
      • Nominal input level (gain knob at MAX): -68 dBu (0.0003 Vrms)
      • Nominal input level (gain knob at MIN): -12 dBu (0.195 Vrms)
      • Maximum input level: +8 dBu (1.947 Vrms)
      • Gain range: 56 dB
    • Instrument inputs (unbalanced, IN1–IN2): 6.3mm (1/4") standard TS jacks (Tip: HOT, Sleeve: GND)
      • Input impedance: 1 MOhm or more
      • Nominal input level (gain knob at MAX): -68 dBV (0.0004 Vrms)
      • Nominal input level (gain knob at MIN): -12 dBV (0.251 Vrms)
      • Maximum input level: +8 dBV (2.512 Vrms)
      • Gain range: 56 dB
    • Line inputs (balanced, IN1–IN8): 6.3mm (1/4") standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
      • Input impedance: 10 kOhm
      • Nominal input level (gain knob at MAX): -52 dBu (0.0019 Vrms)
      • Nominal input level (gain knob at MIN): +4 dBu (1.228 Vrms)
      • Maximum input level: +24 dBu (12.282 Vrms)
      • Gain range: 56 dB
    • Line inputs (unbalanced, LINE IN 9–10, LEVEL switch set to -10dBV): 6.3mm (1/4") standard TS jacks (Tip: HOT, Sleeve: GND)
      • Input impedance: 10 kOhm
      • Nominal input level: -10 dBV (0.3162 Vrms)
      • Maximum input level: +10 dBV (3.162 Vrms)
    • Line inputs (balanced, LINE IN 9–10, LEVEL switch set to +4dBu): 6.3mm (1/4") standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
      • Input impedance: 10 kOhm
      • Nominal input level: +4 dBu (1.228 Vrms)
      • Maximum input level: +24 dBu (12.282 Vrms)
  • Analog Outputs:
    • Line outputs (balanced, LINE OUT 1–10): 6.3mm (1/4") standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
    • Output impedance: 100 Ohm
    • Nominal output level: +4 dBu (1.228 Vrms)
    • Maximum output level: +24 dBu (12.277 Vrms)
    • Headphones outputs (PHONES 1/2): 6.3mm (1/4") standard stereo jacks
    • Maximum output power: 70mW + 70mW (THD+N 0.1% or less, into 32 O load)
    • Frequency response (Input to PHONES 1/2 output):
      • At 44.1 kHz and 48 kHz: 20 Hz – 20 kHz, ±1.0 dB (JEITA)
      • At 88.2 kHz and 96 kHz: 20 Hz – 40 kHz, ±2.0 dB (JEITA)
      • At 176.4 kHz and 192 kHz: 20 Hz – 80 kHz, ±5.0 dB (JEITA)
  • Digital Audio Inputs and Outputs:
    • COAXIAL IN: RCA pin jacks
      • Signal format: IEC 60958-3 (S/PDIF)
      • Input impedance: 75 Ohm
      • Input level: 0.5 Vpp/75 Ohm
    • COAXIAL OUT: RCA pin jacks
      • Signal formats: IEC 60958-3 (S/PDIF) or IEC 60958-4 (AES/EBU), selectable on the Settings Panel
      • Output impedance: 75 Ohm
      • Output level: 0.5 Vpp/75 Ohm
    • OPTICAL (S/MUX) IN/OUT: OPTICAL (JEITA RC-5720C)
      • Signal format: Multi-channel optical format (supports S/MUX at 88.2 kHz, 96 kHz, 176.4 kHz or 192 kHz)
  • Other Inputs and Outputs:
    • USB: USB 3.0 B type
      • Transfer rate: USB 3.0 Super Speed (5 GBit/s)
    • MIDI IN: 5-pin DIN
      • Format: Standard MIDI
    • MIDI OUT: 5-pin DIN
      • Format: Standard MIDI
    • WORD IN: BNC (Termination on/off switch included)
      • Input voltage: 2.0Vpp - 5.0Vpp
      • Input impedance: 75 Ohm ±10 %
      • Permitted frequency deviation during external synchronization: ±100 ppm
    • WORD OUT: BNC (OUT/THRU switch included)
      • Output voltage: 2.0 Vpp (into 75-Ohm load)
      • Output impedance: 75 Ohm ±10 %
      • Sampling frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
  • Audio Performance:
    • Mic amp EIN (equivalent input noise): -125 dBu or lower
    • Frequency response (Input to LINE OUT (BALANCED))
      • At 44.1/48 kHz: 20 Hz – 20 kHz, ±0.5 dB (JEITA)
      • At 88.2/96 kHz: 20 Hz – 40 kHz, ±0.5 dB (JEITA)
      • At 176.4/192 kHz: 20 Hz – 80 kHz, ± 5 dB (JEITA)
    • S/N ratio: 104 dB or higher (MIC/LINE IN to LINE OUT, gain knob at MIN, JEITA)
    • Distortion: 0.004 % or less (MIC/LINE IN to LINE OUT, 1 kHz sine wave, at nominal input level and maximum output level)
    • Crosstalk 100 dB or more (MIC/LINE IN to LINE OUT, 1 kHz)
  • Computer System Requirements:
    • Windows
      • Supported operating systems: Windows 8 (including 8.1) 32-bit
        • Windows 8 (including 8.1) 64-bit
        • Windows 7 32-bit SP1 or later
        • Windows 7 64-bit SP1 or later
        • (Windows Vista and Windows XP are not supported)
      • Computer hardware requirements: Windows computer with a USB 3.0 or USB 2.0 port
      • CPU/processor speed: 2 GHz or faster dual core processor (x86)
      • Memory: 2 GB or more
      • Screen resolution: 1280×800 pixels or more
    • Mac OS X
      • Supported operating systems: OS X Yosemite (10.10.1 or later)
        • OS X Mavericks (10.9.5)
        • OS X Mountain Lion (10.8.5)
      • Computer hardware requirements: Mac with a USB 3.0 or USB 2.0 port
      • CPU/processor speed: 2 GHz or faster dual core processor
      • Memory: 2 GB or more
      • Screen resolution: 1280×800 pixels or more
    • Apple iOS devices
      • Operating system: iOS 7 or later
      • Supported audio drivers:
        • Windows: USB Audio Class 2.0, ASIO 2.0, WDM(MME), MIDI
        • Mac: Core Audio, Core MIDI
  • Power Supply and Other Specifications:
    • Power supply: DC12V AC adapter (GPE248-120200-Z)
    • Power consumption: 12 W
    • Dimensions (W × H × D):
      • 445 mm × 59 mm × 222 mm (with standard frame attached)
      • 483 mm × 44 mm × 222 mm (with rack mount adapters attached)
    • Weight: 2.8 kg
    • Permissible operating temperature range: 5–35 °C
