Atlas Sound I128SYSM
1' x 2' Speaker with Microphone for Suspended Ceiling Systems


Model I128SYSM IP speaker from Atlas Sound consists of a factory assembled loudspeaker, baffle, microphone...
Learn More
Our Price: $740.95
List Price: $923.95
You save 20%!
Write the first review.
Atlas Sound I128SYSM
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

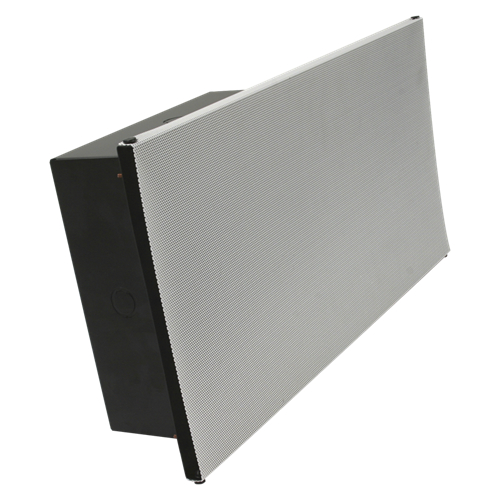

Model I128SYSM IP speaker from Atlas Sound consists of a factory assembled loudspeaker, baffle, microphone, tile support, enclosure system with PCB amp/control board securely mounted to the rear of the speaker via concealed weld studs.

The amp / control board is capable of producing 9 Watts RMS into the 8 Ohm loudspeaker with 9VDC minimum power provided by IEEE 802.3 AF compliant POE switches. (local 12-18VDC PSUs may also be used instead of POE switches). Interconnection is via a board mounted female RJ-45 connector.

The industry standard C10A loudspeaker used in the I128SYSM is a dual cone 8" (205mm) loudspeaker with a 10oz (260g) ceramic magnet. It includes a curvelinear paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" (25mm) diameter copper voice coil with aluminum former for better heat dissipation.

A omni directional subminiature (1/4" / 6mm), electret condenser microphone is mounted behind the stainless steel perf material adjacent the loudspeaker to allow 2-way communication and/or monitoring from the loudspeaker location to any PC or IP phone in the system.

The 18-gauge construction of the metal baffle provides security and durability in commercial applications. The baffle is finished in neutral white electrostatic powder coat and is packaged with all necessary mounting screws.

Atlas Sound I128SYSM Features:

  • Use with ControlKom® or InformaCast® software to send live, prerecorded or ad hoc messages along with control data to Atlas Sound IP Speaker and zone controller end points over new or existing multicast enabled local area networks.
  • Loudspeakers are Also Compatible with SIP (Session Initiation Protocol) VoIP Systems.
    • Contact Atlas Sound for SIP Configuration Info.
  • Highly Efficient 10 oz Dual Cone Loudspeaker System Provides 94 dB Average SPL @ 1W/1m and is Capable of 103 dB @ 1 meter via the Rated Power of the Internal IP Addressable Amplifier
  • Built-In Microphone for 1/2 Duplex Communication
  • 105° Dispersion in the 2kHz Octave Band (-6 dB)
  • ETL Certified, Safety Listed to UL60950-1
  • Wide Frequency Response of 86Hz - 8kHz is Perfect for Speech and General Messaging Playback

Atlas Sound I128SYSM Specifications:

  • Height: 23.67" (601mm)
  • Connector Type: RJ-45
  • Sensitivity: 94 dB
  • Width: 11.94" (303mm)
  • Depth: 4.89" (124mm)
  • Dispersion: 105°
  • Shipping Weight: 12.8 lbs. (5.81 kg)
  • Safety Listed: 60950-1, 2043
