Atlas Sound I8SCH
IP Horn Speaker, w/ Clock, SingleWire

OUR PART #:  I8SCH

Our Price: $740.95
List Price: $923.95
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound I8SCH
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

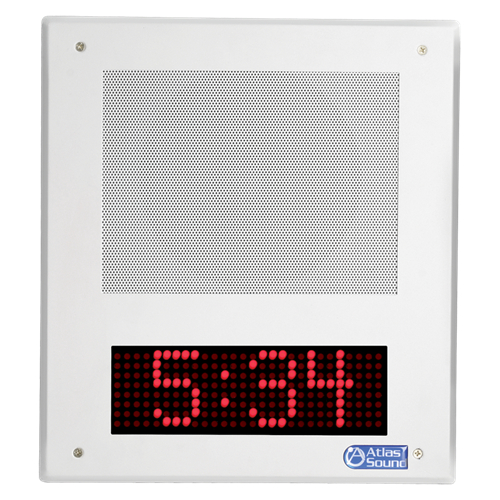

The Model I8SCH IP speaker from Atlas Sound consists of a factory assembled loudspeaker/ baffle/digital clock with PCB amp/control board securely mounted to the rear of the baffle via concealed weld studs.

The amp/control board is capable of producing 9 Watts RMS into the 8 Ohm loudspeaker with 9VDC minimum power provided by IEEE 802.3 AF compliant POE switches, (local 12-18VDC PSU's may also be used instead of POE switches). Interconnect is via a board mounted female RJ-45 connector.

The clock display is a brilliant red 5 element device capable of creating 2.75" (70mm) high x 1.25" (32mm) wide clock numbers. The industry standard APF-15 loudspeaker is a highly efficient 15 Watt compression driver with a proven record of outstanding service reliability. A double re-entrant design provides superior audibility of voice and tone signaling.

The 18-gauge construction of the metal baffle provides security and durability in commercial applications. A perforated 22-gauge metal screen is provided over the loudspeaker to maximize performance by allowing the optimum percentage of open area forward of the loudspeaker. The baffle is finished in neutral white electrostatic powder coat and is packaged with all necessary mounting screws.

Atlas Sound I8SCH Features:

  • Use with ControlKom® or InformaCast® software to send live, prerecorded or ad hoc messages along with control data to Atlas
  • Sound IP Speaker and zone controller end points over new or existing multicast enabled local area networks.
  • Loudspeakers are Also Compatible with SIP (Session Initiation Protocol) VoIP Systems. Contact Atlas Sound for SIP Configuration Info.
  • Frequency Response of 700Hz - 5.5kHz is Perfect for High Intelligibility Speech and General Messaging Playback
  • Network Controlled, High Visibility Red LED Clock
  • ETL Certified, Safety Listed to UL60950-1
  • 95° Dispersion in the 2kHz Octave Band (-6dB)
  • NOT COMPATIBLE WITH CONTROLKOM 2.0 USE MODEL IDT12M-CK FOR USE WITHCONTROLKOM 2.0

Atlas Sound I8SCH Specifications:

  • Connector Type: RJ-45
  • Height: 14" (36.5 cm)
  • Width: 12" (32.7 cm)
  • Depth: 4" (12.3 cm)
  • Safety Listed: 60950-1
Flush Mount Straight Enclosure, for 18SC Speakers
Atlas Sound FEST-I8SC Flush Mount Straight Enclosure, for 18SC Speakers
Flush mount enclosure is designed for use only with Atlas Sound loudspeaker system models I8SC, I8SC-CK, I8SCM, I8SCM-CK, I8SCH, and I8SCH-CK. The unit includes a slot style mounting system to accommodate most any material thickness. The ...
