Atlas Sound I8SC
IP Speaker, w/ clock, SingleWire

OUR PART #:  I8SC

Our Price: $732.99
List Price: $913.99
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound I8SC
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

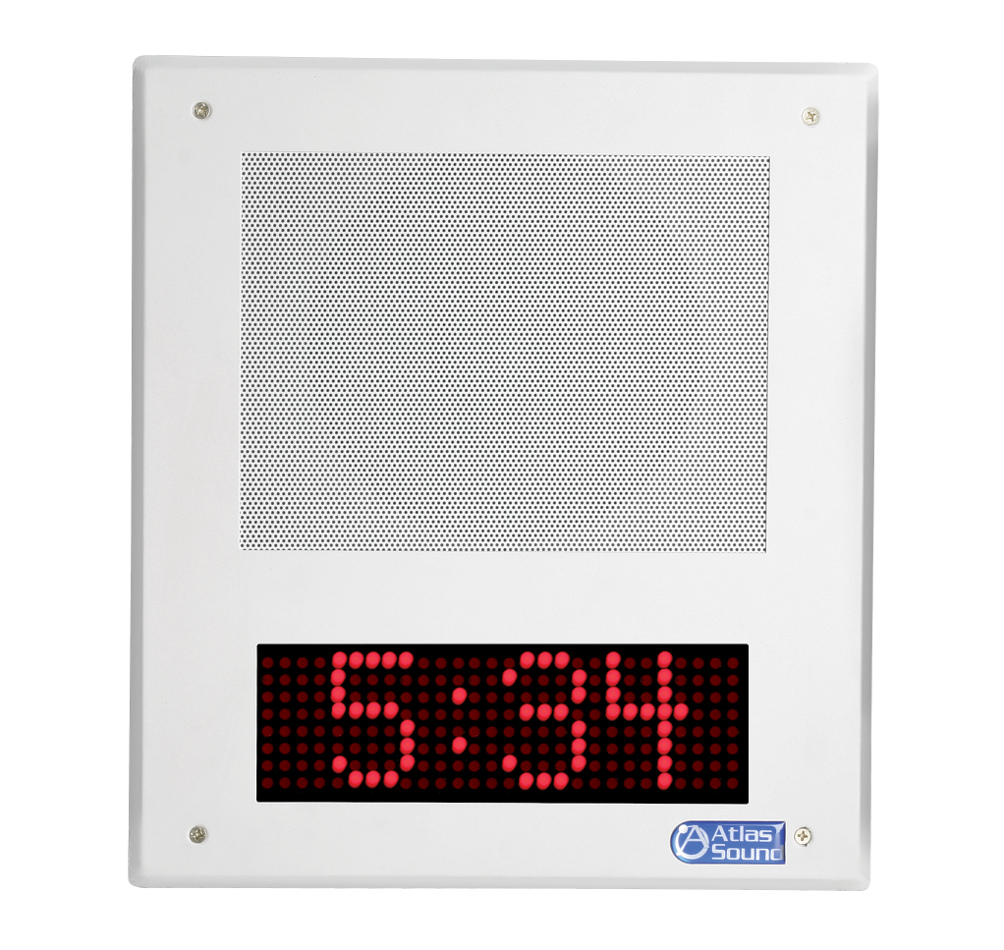

The Model I8SC IP speaker from Atlas Sound consists of a factory-assembled loudspeaker/baffle/digital clock with PCB amp/control board securely mounted to the rear of the baffle via concealed weld studs.

The amp/control board is capable of producing 9 Watts RMS into the 8 Ohm loudspeaker with 9VDC minimum power provided by IEEE 802.3 AF compliant POE switches (local 12-18VDC PSU’s may also be used instead of POE switches). Interconnect is via a board mounted female RJ-45 connector.

The clock display is a brilliant red 5 element device capable of creating 2.75" (70mm) high x 1.25" (32mm) wide clock numbers. The industry standard C10A loudspeaker used in the I8SC is a dual cone 8" (205mm) loudspeaker with a 10oz (260g) ceramic magnet. It includes a curve-linear paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" (25mm) diameter copper voice coil with aluminum former for better heat dissipation.

The 18-gauge construction of the metal baffle provides security and durability in commercial applications. A perforated 22-gauge metal screen is provided over the loudspeaker to maximize performance by allowing the optimum percentage of open area forward of the loudspeaker. The baffle is finished in neutral white electrostatic powder coat and is packaged with all necessary mounting screws.

Atlas Sound I8SC Features:

  • Use with ControlKom® or InformaCast® software to send live, prerecorded or ad hoc messages along with control data to Atlas
  • Sound IP Speaker and zone controller end points over new or existing multicast enabled local area networks.
  • Loudspeakers are Also Compatible with SIP (Session Initiation Protocol) VoIP Systems. Contact Atlas Sound for SIP Configuration
  • Info.
  • Highly Efficient 10oz Dual Cone Loudspeaker System Provides 94dB Average SPL @ 1W/1m and is Capable of 103dB @ 1 Meter via the Rated Power of the Internal IP Addressable Amplifier
  • Network Controlled, High Visibility Red LED Clock
  • Use with Berbee InformaCast® software, Cisco® POE networks & Cisco® IP Telephones to create extremely versatile paging and messaging systems
  • Wide Frequency Response of 86Hz - 8kHz is Perfect for Speech and General Messaging Playback
  • NOT COMPATIBLE WITH CONTROLKOM 2.0 USE MODEL IDT12M-CK FOR USE WITH CONTROLKOM 2.0.
  • 105° Dispersion in the 2 kHz Octave Band (-6 dB)

Atlas Sound I8SC Specifications:

  • Height: 14 3/8" (36.5252 cm)
  • Connector Type: RJ-45
  • Width: 12 7/8" (32.7152 cm)
  • Depth: 2.99" (7.5946 cm)
  • Shipping Weight: 5.5 lbs. (2.49 kg)
  • Safety Listed: 60950-1
