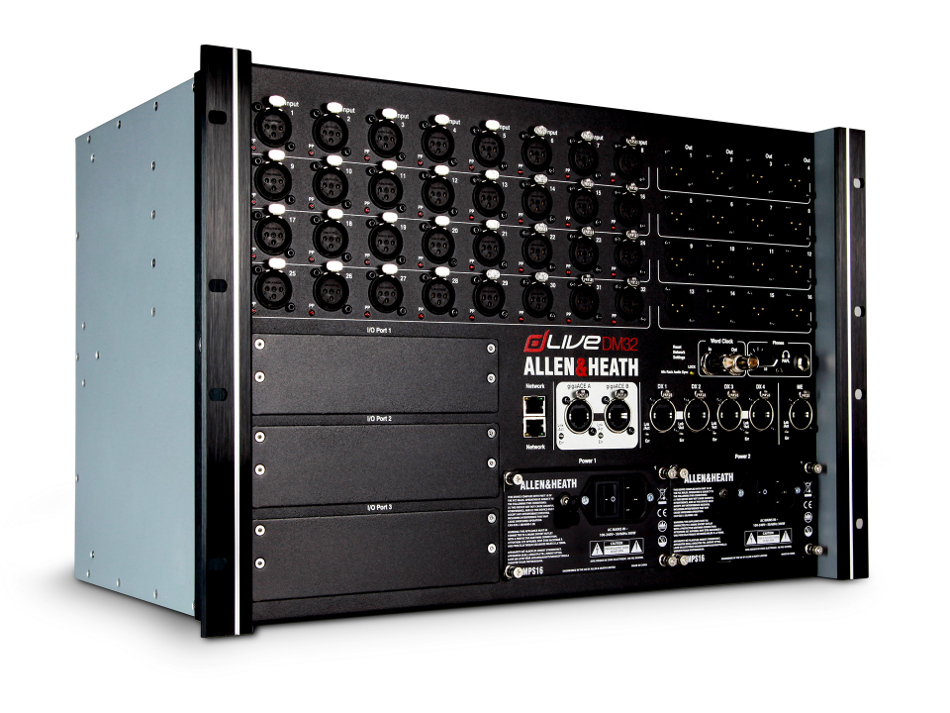

Allen & Heath dLive DM32 S-Class MixRack with 32-Inputs and 16-Outputs

OUR PART #: DM-32 MFR #: AH-DLIVE-DM32

Copied to clipboard

The MixRack is the heart of any dLive system, as it houses the XCVI processing core complete with audio I/O, control and audio networking ports. ...Read more

Allen & Heath dLive DM32 S-Class MixRack With 32-Inputs And 16-Outputs Image 1
Allen & Heath dLive DM32 S-Class MixRack With 32-Inputs And 16-Outputs Image 2
Allen & Heath dLive DM32 S-Class MixRack With 32-Inputs And 16-Outputs Image 3
Allen & Heath dLive DM32 S-Class MixRack With 32-Inputs And 16-Outputs

Call for price! Not available online.

In Stock

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The MixRack is the heart of any dLive system, as it houses the XCVI processing core complete with audio I/O, control and audio networking ports. It is typically connected to a dLive Surface, but can also be controlled at the same time as or even without a Surface using a laptop or iPad, Allen & Heath IP remotes or third party controllers via TCP/IP. There are 3 sizes of dLive MixRack available. All feature the same mix engine and differ only in the number of analog I/O, and all models can work with the full 128 channels by adding DX expanders or patching digital sources.

XCVI Core: The power of dLive emanates from the XCVI Core – next generation FPGA technology - with 36 parallel virtual processing cores generating enough power for 160×64 channels of processing at 96kHz sampling rate. Six parallel mixing engines within the Core calculate over 10,000 cross points per sample, while the FPGA router has capacity for 3,000 x 3,000 audio paths. The massive power of XCVI (25 billion operations per second) allows dLive to deliver 128 full processing inputs and 16 stereo FX returns, a configurable 64 bus architecture, variable bit depth for ultimate precision and noise performance, a virtually infinite mix headroom thanks to a 96-bit accumulator, and class leading latency at an ultra-low 0.6ms.

Deep Processing: DEEP processing architecture embeds class-leading compressors and processing emulations directly within dLive’s input and mix channels. An array of bespoke algorithms including Graphic EQs and Compressor models can be inserted on the fly without burning FX slots and without the setup, latency and license hassles associated with external plug-ins. The compressor models capture the audio nuances and non-linear ballistics of industry classics, ranging from a Slow-Opto model, various RMS detection and soft knee circuits, through to super-fast peak and RMS based compression/limiting devices.

RackExtraFX: The RackExtra FX portfolio combines the pristine quality and wide choice offered by boutique plug-ins with the convenience and low latency of onboard processing. It’s no secret that we have a passion bordering on obsession for crafting painstakingly faithful emulations of the most revered analog outboard equipment. Drawing on the power of the XCVI Core, Allen & Heath has built hugely potent DSP kernels within the FPGA, allowing us to integrate our proven library of reverb, delay and modulator algorithms into dLive, with 16 FX slots available, each with a dedicated stereo return.

Built to Endure: All dLive consoles have been designed to deliver the optimal balance between strength and weight, employing higher grade metal on the sides and folded steel at key points for added rigidity. Not only does every console, MixRack and expander have dual power supply slots for redundancy, but Allen & Heath has also employed the same rugged, hot-swappable PSU design across the range for maximum peace of mind and minimum inventory. Dual redundancy is also built into every audio connection throughout the system. Allen & Heath has paid particular attention to console illumination, conducting rigorous trials to ensure that dLive excels in the sunny, outdoor settings where many digital consoles become almost unusable.

Allen & Heath dLive DM32 Features:

  • 32 mic/line inputs, 16 line outputs
  • XCVI 160×64 FPGA core:
    • 96kHz sample rate
    • Variable bit-depth for ultimate precision and noise performance
    • Virtually infinite mix headroom thanks to 96-bit accumulator
    • Class leading, ultra-low latency < 0.6ms
  • 128 Input Channels with full processing
  • 64 Mix Outputs with full processing
  • Configurable 64 bus architecture (group, FX, aux, matrix, mains):
    • LR, LCR and up to 5.1 mains mode
    • Multiple PFLs
  • 16 RackExtra FX with dedicated stereo returns
  • 16 DCAs
  • Built-in signal generator and RTA
  • New preamp design for extra transparency
  • Unique Active PAD circuit for consistent performance with any source
  • Connection hub:
    • Dual redundant GigaACE gigabit link to Surface
    • 2x redundant DX links for I/O expansion
    • 3x I/O Ports – 128 ch 96 kHz each
    • Dedicated ME-1 48kHz port
    • 2x Network ports
    • Wordclock BNC I/O
  • Dual redundant, hot swappable power supply
  • Flush front panel with ultra quiet fan
  • Reversible rack ears design

Allen & Heath dLive DM32 Specifications:

  • INPUTS:
    • Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
    • Mic/Line Preamp: Fully recallable
    • Input Sensitivity: -60 to +15dBu
    • Analog Gain: +5 to +60dB, 1dB steps
    • Pad: -20dB Active PAD
    • Maximum Input Level: +30dBu (PAD in)
    • Input Impedance:
      • Pad out: >4 kOhm
      • Pad in: >10 kOhm
    • Mic EIN: -127dB with 150 Ohm source
    • Phantom Power indication: Per socket, internal or external phantom power sensing, triggered at 24V
  • OUTPUTS:
    • Output impedance: < 75 Ohm
    • Nominal Output: +4dBu = 0dB meter reading
    • Maximum Output Level: +22 dBu
    • Residual Output Noise:
      • -92dBu (muted, 20-20kHz)
      • -90dBu (muted, 20-40kHz)
    • Analog XLR Outputs: Balanced, Relay protected
  • SYSTEM:
    • Dynamic Range: 110dB
    • System Signal to Noise: -92dB
    • Frequency Response: 20Hz - 30kHz +0/-0.8dB
    • THD+N (analog in to out): 0.0015% @ +16dBu output, 1kHz; 0dB gain
    • Headroom: +18dBu
    • Internal operating level: 0dBu
    • dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
    • Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
    • Meter Peak Indication: -3dBFS (+19dBu at XLR out)
    • Sampling Rate: 96kHz ± 20 PPM
    • ADC: 24-bit Delta-Sigma
    • DAC: 24-bit Delta-Sigma
    • Latency:
      • < 0.6 ms (MixRack XLR in to XLR out, Input to Mix)
      • + 5 samples, Surface to Mixrack (GigaACE hop)
      • + 8 samples, DX32 to Mixrack (DX hop)
    • Operating Temperature Range: 32°F to 95°F (0° to 35°C)
    • Mains Power (MPS16): 100-240V AC, 47-63Hz, 300W max
  • DIMENSIONS & WEIGHTS:
    • Dimensions:
      • Unboxed: 482.6 x 313 x 325 mm (19" x 12.3" x 12.8")
      • Boxed: 590 x 420 x 470 mm (23.2" x 16.5" x 18.5")
    • Weights:
    • Unboxed: 15kg (33 lbs.)
    • Boxed: 17.5 kg (38.6 lbs.)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
