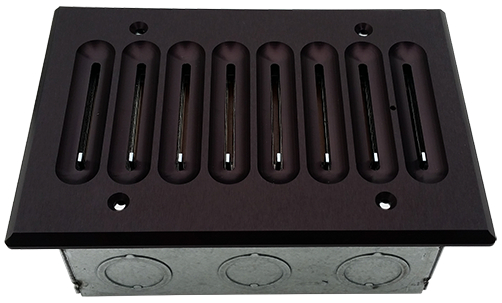

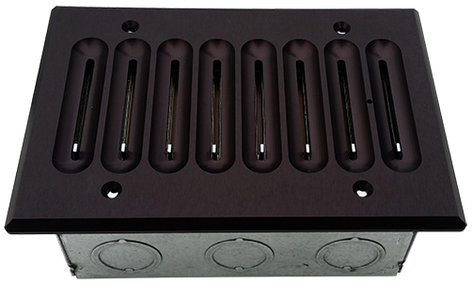

Doug Fleenor Designs Preset 8 Architectural
DMX Wall Control Station with 8 Presets

OUR PART #:  PRE8-A

A wall-mount architectural style lighting control station that can store 8 preset looks - or scenes...
Learn More
Our Price: $908.82
List Price: $1,122.00
You save 19%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Doug Fleenor Designs Preset 8 Architectural
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

A wall-mount architectural style lighting control station that can store 8 preset looks - or scenes, the Doug Fleenor Design Preset 8 features sliders for adjusting the light levels - one associated with each of the 8 looks. The preset looks are recorded into the Preset 8 by capturing the output of any DMX512 console. A Preset 8 system may consist of single or multiple stations, with multiple station systems utilizing a Main/Remote concept in that the looks are recorded into the Main stations with the remote stations controlling some, or all, of the levels. A common “doorbell”-type transformer can be used as a power source for the Preset 8 Architectural version (consult your Sales Professional for more information). The Doug Fleenor Design model XFMR (sold separately) can be used to power up to (4) Preset 8 stations.

Doug Fleenor Design Preset 8 Specifications:

  • Manufacturer Product #: PRE8-A
  • Primary Connector: Phoenix Contact MSTB series 5-position two-part terminal block
  • Secondary Connector: Phoenix Contact MSTB series 3-position two-part terminal block
  • Connector pin outs:
    • 1: DMX512 common
    • 2: DMX512 data -
    • 3: DMX512 data +
    • 4: Supply common (tied to pin1)
    • 5: Supply “hot”
  • Input/Output circuits: ESD protected EIA-485 transceiver (LT1785)
  • Indicators: One red signal LED (Also indicates “locked-out” when in back-off mode)
  • User controls: Eight 45mm sliders. Sliders are recessed in machined finger guides to prevent damage.
  • One recessed record push button
  • Option jumpers: Master / Remote selection
  • Back-off / Merge selection
  • Power input: 9 to 24 volts DC or 6 to 16 volts AC / 100mA per station
    (A 10 volt class 2 “doorbell” transformer is recommended for fixed installations)
  • Color: Black anodized with no nomenclature. Custom nomenclature available on request.
  • Dimensions:
    • Faceplate (HxWxD): 4.5" x 6.5" x 0.2"
    • Depth behind faceplate: 2.5"
    • Overall depth: 2.7"
  • Warranty: 5 years, parts and labor
Transformer for PRE10A, RERUN-A and ES2
Doug Fleenor Designs XFMR Transformer for PRE10A, RERUN-A and ES2
The model XFMR is a class 2 "doorbell" transformer. It is suitable for use with the PRE10-A, PRE10-A2, ES2 and RERUN-A.Doug Fleenor Designs XFMR Transformer Specifications: AC Input (Primary): 120VAC Output Secondary (RMS): 10V, 1.2APower ...
