Draper Shade and Screen 116344L
220" HDTV 16:9 Targa Electric Projection Screen with Low Voltage Motor

OUR PART #:  116344L

Draper offers the 116344L, a member of their Targa electric projection screen lineup.
Learn More
Our Price: $2,851.00
List Price: $3,564.00
You save 20%!
Be the first to review.
Draper Shade and Screen 116344L
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

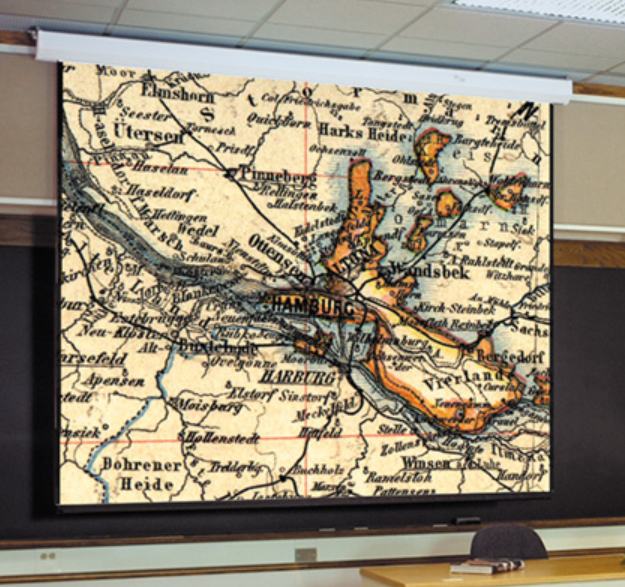

Draper offers the 116344L, a member of their Targa electric projection screen lineup. This style of screen is ideal for auditoriums and lecture halls, hospitals, hotels, churches, boardrooms and conference rooms. The motor is mounted inside the roller, for a trim balanced appearance giving you a low-profile result. The Targa is housed inside a white (standard, black is optional) pentagonal steel case (5-7/8" H x 5-1/4"D 149mm x 133mm) with matching endcaps and universal mounting brackets. For sizes that require a larger case it is an extruded aluminum case (6-3/4" x 6-3/4" 171mm x 171mm).

This model comes with a Matt White XT1000E screen surface, the preferred viewing surface in educational and commercial markets. A matt white surface diffuses projected light in all directions, so the image can be seen from any angle. This offers accurate color rendition, and superior clarity due to its smooth, non-embossed surface. Requires adequate provision for the control of ambient light in the audience area. Unity gain with a panoramic 180° cone. This surface is also GREENGUARD Children and SchoolsSM certified.

Draper 116344L Features:

  • Includes one 110-120V or 220V 3-position switch.
  • Screen operates instantly at the touch of a button and stops automatically in the "up" and "down" positions.
  • Viewing surface can be lowered to any position at the touch of a switch.
  • NTSC, HDTV and 16:10 format screens have black borders on all four sides
  • Available with a ceiling trim kit for ceiling recessed installation.
  • With control options, it can be operated from any remote location.
  • Depending on surface, available in sizes through 16’ x 16’ (488cm x 488cm) and 240" (610cm) NTSC.
  • Custom sizes available.
  • Warranted for one year against defects in materials and workmanship.
  • Plug & Play with built-in Low Voltage Controller (LP) and Plug &Play with built-in Quiet and Low Voltage Controller are now available(QLP).

Draper 116344L Specifications:

  • Part number: 116344L
  • Surface material: Matt White XT1000E
  • Image Format: HDTV
  • Diagonal size: 220"
  • Image/Viewable area: 106" x 188"
  • Overall size: 111" x 192"
  • Case length: 200 7/8"
  • Product weight: 218 pounds
  • Shipping weight: 274 pounds
