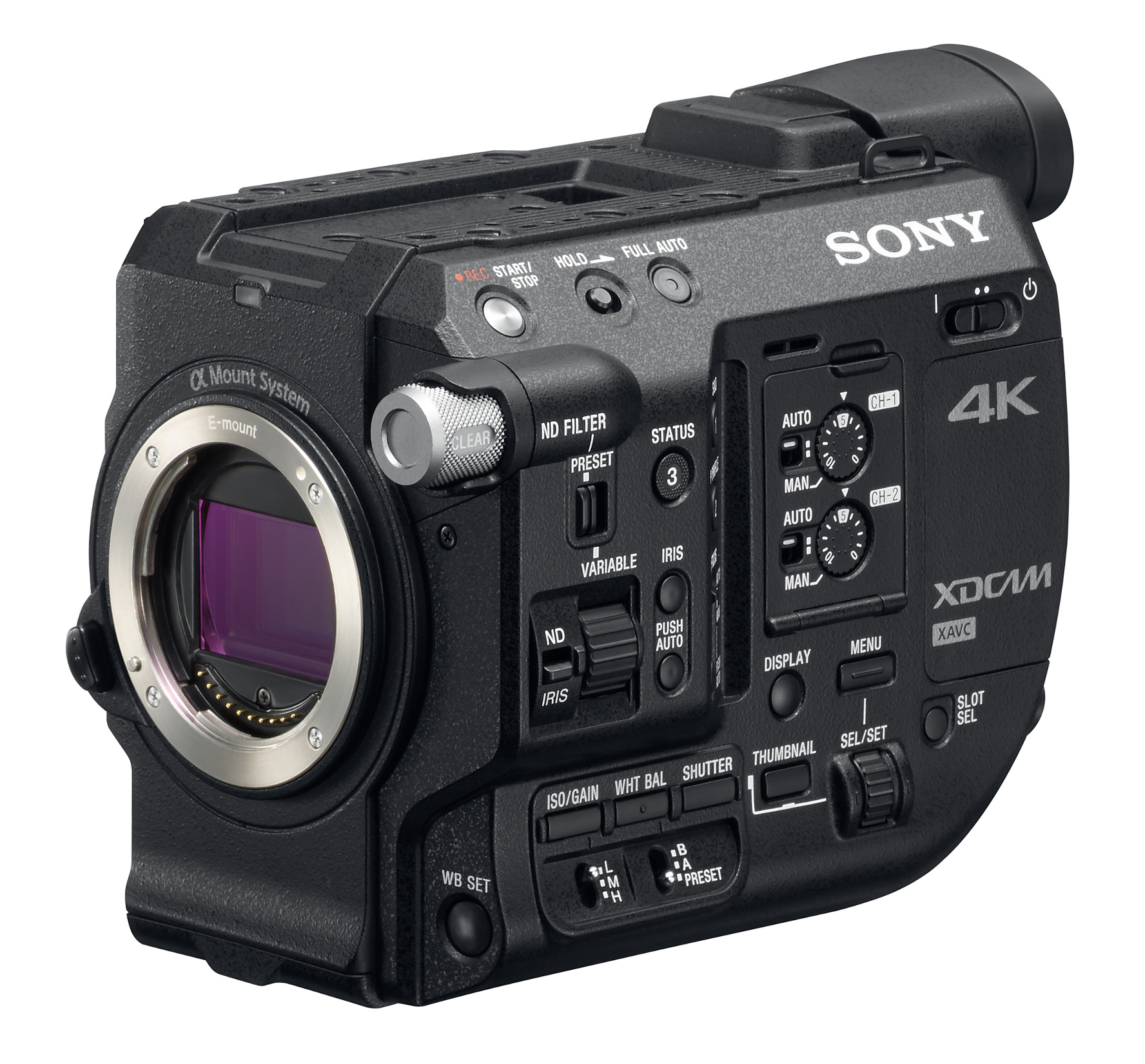

Sony PXW-FS5
4K XDCAM Super35 Handheld Camcorder without Lens

OUR PART #  PXW-FS5

Call for price! Not available online.
List Price: $6,879.00


Recommended Accessories

Sony's PXW-FS5 handheld camera allows you to get a 4K solid-state memory camcorder into tight places. To work in your lap. To move with the talent. To shoot high and low angles with equal agility. And its a handheld camera that functions beautifully against your chest or shoulder, comfortably steadied by your right hand with all the controls at your fingertips. All this and more in Sony’s extraordinary PXW-FS5.

The FS5 is built around a high-sensitivity 4K Super35 "Exmor" CMOS Sensor that offers all the benefits of a large format sensor in combination with the exceptional image readout speeds required for 4K motion-picture shooting and Super Slow Motion. 4K resolution. 11.6 million total pixels and 8.8 million effective pixels deliver 4K resolution. Even if you’re delivering in HD, your recordings will capture detail and image texture that HD sensors simply cannot see. Super 35 size sensor offers "bokeh," the defocused backgrounds made possible by shallow depth of field, as well as excellent low-light sensitivity and an expansive field of view. Thats 14 stops of exposure latitude deliver powerful grayscale rendition without crushing shadow detail or blowing out highlight detail.

The FS5 also offers High Frame Rate (HFR) cache recording at Full HD 10bit 4:2:2 image quality and a frame rate of up to 240 fps. The 8-second cache recording means no moremistimed shots leading to extra takes. It also lets you pick out footage at exactly the point you want.

The FS5 is designed to be taken apart quickly and easily, with no need for custom tools. There are also ¼-inch screw holes on handle, top and bottom of the body to support mounting on a drone, gimbal or in a underwater housing. For tripod mounting, there’s both 1/4 and 3/8 inch screw hole on the bottom. You can even add the FS7’s rosette mount* to securely attach an FS7 arm and compatible third-party accessories.

NOTE: * Rosette mount component available from Sony service centers.

All of the FS5’s key functions are put at your fingertips - from an electronic zoom lever to assignable dials and responsive joystick. The smart grip is located as close as possible to the center of gravity of the camera to avoid rolling, while a grip belt makes your hold completely secure. To adjust the smart grip’s angle, you only need to press one button and turn. Detaching the grip is made fast and simple with a bayonet connection.

However you want to shoot, the FS5 adapts to fit your style. Its 3.5-inch LCD screen can be attached in no less than nine different locations, three on top of the handle and another six on top of the body. And once attached, the positioning of the screen can be freely adjusted – for example either beside the camera body or directly along the axis of the lens.

Sony PXW-FS5 Features:

  • Flexible controls
  • Versatile monitoring
  • Lightweight but robust
  • Modular design for easy integration
  • Networked for high mobility
  • 4K Super 35 Exmor® sensor
  • High Frame Rate (HFR) recording
  • Built-in Electronic Variable ND Filters
  • Clear Image Zoom
  • Center Scan Mode
  • Accurate OLED viewfinder
  • Dual media slots with independent record control
  • Multi-interface (MI) shoe
  • Dual XLR inputs

Sony PXW-FS5 Specifications:

  • General:
    • Battery Operating Time:
      • With battery pack BP-U90: approx. 6 hours, 50 minutes. (While recording with LCD On, EVF Off when the external device connector is not used.)
      • With battery pack BP-U60: approx. 4 hours, 20 minutes. (While recording with LCD On, EVF Off when the external device connector is not used.)
      • With battery pack BP-U30: approx. 2 hours, 10 minutes (While recording with LCD On, EVF Off when the external device connector is not used.)
    • Dimensions (W x H x D):
      • Approx. 4 1/2 x 5 1/8 x 6 7/8 inches (Body only including the projecting parts)
      • Approx. 7 3/8 x 8 5/8 x 14 5/8 inches (with SELP18105G and lens hood[optional], large eyecup, LCD viewfinder, handle, grip w/o grip belt and the projecting parts)
    • Mass:
      • Approx. 1lb 13.2 oz (Body only)
      • Approx. 4lb 14.5 oz (with SELP18105G and lens hood[optional], battery pack BP-U30, large eyecup, LCD viewfinder, handle, grip w/o gripbelt)
    • Operating Temperature: 32°F to 104°F
    • Power Consumption:
      • Approx. 11.5W (while recording with LCD Off, EVF On when the external device connector is not used.)
      • Approx. 12.3W (while recording with LCD On, EVF On when the external device connector is used.)
    • Power Requirements:
      • DC 14.4V (battery pack)
      • DC 12.0V (AC adaptor)
    • Recording Format:
      • Video: XAVC QFHD : MPEG-4 AVC/H.264 4:2:0 Long profile
      • Video: XAVC HD : MPEG-4 AVC/H.264 4:2:2 Long profile
      • Video: AVCHD : MPEG-4 AVC/H.264 AVCHD 2.0 format compatible
      • Audio: AVC : Linear PCM 2ch, 24bit, 48kHz
      • Audio: AVCHD : Linear PCM 2ch, 16bit, 48kHz / Dolby Digital 2ch, 16bit, 48kHz
    • Recording Frame Rate:
      • XAVC QFHD (3840 x 2160) @29.97p, 25p, 23.98p 100Mbps/60Mbps
      • XAVC HD (1920 x 1080) @59.94p, 50p, 50Mbps/35Mbps
      • XAVC HD (1920 x 1080)@59.94i, 50i, 50Mbps/35Mbps/25Mbps
      • XAVC HD (1920 x 1080)@29.97p, 25p, 23.98p, 50Mbps/35Mbps
      • XAVC HD (1280 x 720)@59.94p, 50p, 50Mbps
      • AVCHD (1920 x 1080)@59.94p, 50p, PS mode(28Mbps)
      • AVCHD (1920 x 1080) @59.94i/50i/29.97p/25p/23.98p,
      • FX mode (24Mbps)
      • FH mode(17Mbps)
      • AVCHD (1280 x 720)@59.94p, 50p,
      • FX mode(24Mbps)
      • FH mode(17Mbps)
      • HQ mode(9Mbps)
    • Recording/Playback Time:
      • XAVC-L QFHD 100 mode Approx. 65 min with 64 GB memory card
      • XAVC-L QFHD 60 mode Approx. 100 min with 64 GB memory card
      • XAVC-L HD 50 mode Approx. 120 min with 64 GB memory card
      • XAVC-L HD 35 mode Approx. 170 min with 64 GB memory card
      • XAVC-L HD 25 mode Approx. 220 min with 64 GB memory card
      • AVCHD @ LPCM 2ch PS Mode Approx. 290 min with 64 GB memory card Approx. 145 min with 32 GB memory card
      • AVCHD @ LPCM 2ch FX Mode Approx. 340 min with 64 GB memory card Approx. 170 min with 32 GB memory card
      • AVCHD @ LPCM 2ch FH Mode Approx. 450 min with 64 GB memory card Approx. 225 min with 32 GB memory card
    • Storage Temperature: -4°F to +140°F
  • Inputs/Outputs:
    • Audio Input: XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable
    • Audio Output: Integrated into Multi/Micro USB jack
    • DC Input: DC jack
    • HDMI Output: HDMI connector (Type A)
    • Headphone Output: Stereo mini mini jack (x1)
    • Remote: Stereo mini-minijack (F2.5 mm)
    • SDI Output:
      • BNC type (x1), SD/HD/3G(Level-B) selectable
      • SMTPE 259M/292M/424M/425M standards
    • Speaker Output: Monaural
    • USB: Multi/Micro USB jack (x1)
    • Video Output:
      • Integrated into Multi/Micro USB jack
      • Composite
      • 1.0Vp-p, 75 ohm
  • Lens:
    • Lens Mount: E-mount
  • Monitoring:
    • Built-in LCD Monitor: 3.5 inch type Approx. 1.56M dots
    • Viewfinder: 0.39 inch type OLED Approx. 1.44M dots
