Neutrik NE8MX6
etherCON CAT6A Cable Connector with Nickel Plating

OUR PART #:  NE8MX6

Neutrik's NE8MX6 is an etherCON CAT6a cable connector with self-termination and nickel plating.
Learn More
Our Price: $12.52
List Price: $15.00
Save up to 30% when you order by quantity!
  • Buy 25: $11.31 each.
  • Buy 50: $10.91 each.
  • Buy 100: $10.50 each.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NE8MX6
Qty:
Similar Products

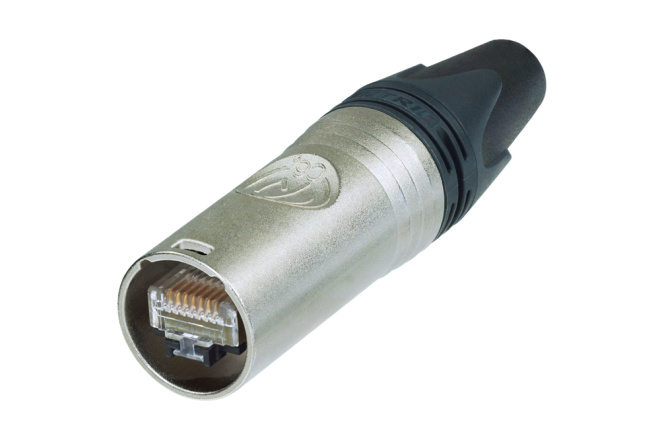

Neutrik's NE8MX6 is an etherCON CAT6a cable connector with self-termination and nickel plating.

The NE8MX6 consists of a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A compliant RJ45 plug. Suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG24 - AWG22/1 (solid) or AWG24 - AWG22/7 (stranded).

Neutrik NE8MX6 Features:

  • Ruggedized connector with CAT6A component compliance according to ISO/IEC11801 and TIA/EIA 568-C.2
  • PoE+ compliant according to 802.3 at Type2
  • IP65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
  • Rugged latch lock system million fold proven
  • Intermateable with the existing etherCON CAT5 range
  • Unique Neutrik chuck-type strain relief

Neutrik NE8MX6 Specifications:

  • Dielectric strength: 1 kVdc
  • Insulation resistance: > 0.5 GOhms
  • Rated current per contact: 1.5 A
  • Cable O.D.: 7.0 - 9.5 mm
  • Lifetime: > 1000 mating cycles
  • Solid wiresize: AWG 24 - AWG 22/1
  • Stranded wiresize: AWG 24 - AWG 22/7
  • Locking device: Latch lock
  • Insulation diameter: 1.1 - 1.6 mm
  • Contact plating: Au
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel
  • Temperature range: -40°C to +70°C
