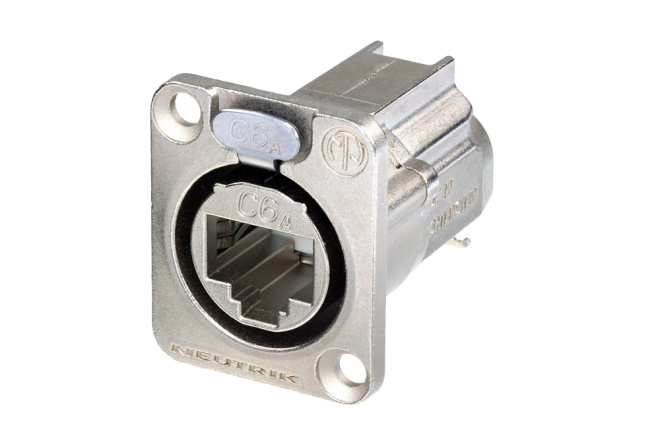

Neutrik NE8FDX-Y6 ethercon CAT6A Panel Connector, Nickel

Neutrik's NE8FDX-Y6 is a shielded D-shape CAT6a panel connector with IDC termination and nickel housing.

Features

• Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
• PoE+ compliant according to 802.3 at Type2
• Rugged latch lock system million fold proven
• Intermateable with the existing ethercon CAT5 range
• Shielded system - high noise immunity and EMI protection

Specifications

• Dielectric strength: 1 kVdc
• Insulation resistance: > 0.5 GOhms
• Rated current per contact: 1.5 A
• Lifetime: > 1000 mating cycles
• Solid wiresize: AWG 26/1 - AWG 22/1
• Stranded wiresize: AWG 26/7 - AWG 22/7
• Locking device: Latch lock
• Insulation diameter: 0.85 - 1.6 mm
• Contact plating: Au
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel
• Temperature range: -40°C to +70°C
