ETC/Elec Theatre Controls 4M36L-T-1

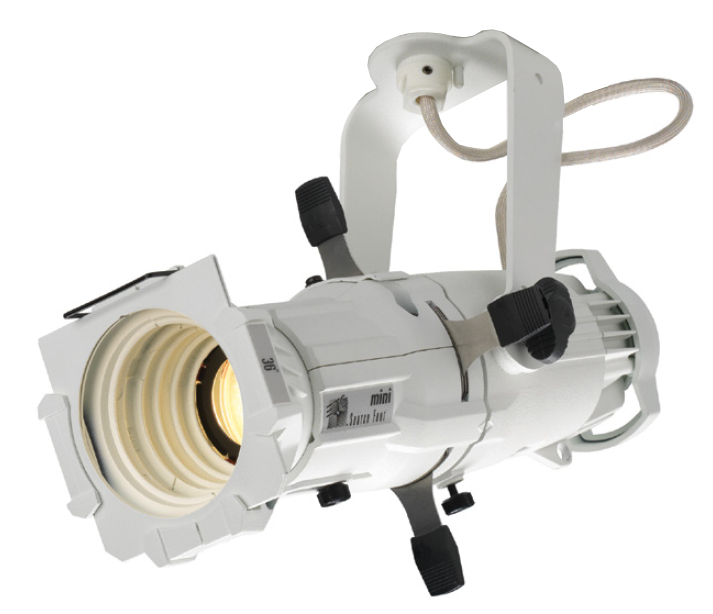

36° Source Four Mini LED with Track Mount Adapter in White

OUR PART #:  4M36L-T-1

NOTE : Some gear shown above are NOT INCLUDED and sold separately . For more information on this and other products, please contact your Sales Pro.
Learn More
Similar Products

NOTE: Some gear shown above are NOT INCLUDED and sold separately. For more information on this and other products, please contact your Sales Pro.

Good things come in small packages. The Source Four Mini™ from ETC is everything you expect from the Source Four® brand - ease of use, superior optics, crystal-clear image projection and a bright, even field - but packaged in a tiny fixture that's just one-third the size of a traditional Source Four. A mere nine inches long, the Source Four Mini can go where no full-sized Source Four® can go while producing the same crisp optics, user-friendly functionality and sleek look of the legendary Source Four fixture, but in a compact format at a fraction of the size.

The Source Four Mini is available in four field angles: 19°, 26°, 36° and 50°, with a 2.5-inch diameter lens. This model, the 4M36L-T-1 comes in a 36° field angle. It comes in a portable version with a miniature C-clamp, a canopy-mount design with an integral transformer, or a track-mounted design (this version is the track-mounted design). There is also a low-voltage (12V) tungsten version. All Source Four Mini models include an E-sized pattern holder and a gel media frame, with a range of additional accessories.

Venues this LED fixture is commonly used in installations where size matters including:

  • Museums
  • Retail stores
  • Restaurants
  • Lobbies
  • Light labs
  • Theaters

ETC 4M36L-T-1 Features:

  • 36° field angle
  • 9" long, 2.5" diameter
  • 12W LED (35,000-hour life)
  • Portable, canopy-mount and track-mount versions
  • E-size pattern holder
  • Gel media frame
  • Rotating barrel ± 175°
  • Three-plane stainless-steel shutter blade assembly
  • Tool-free lamp replacement
  • Insulated rear handle
  • Rugged die-cast aluminum construction
  • Black, white, silver or custom colors available
  • ETL-Listed and compatible with EUTRAC-brand track
  • Factory-installed, integral 12V transformer or LED driver in color-matched (black or white) adapter

ETC 4M36L-T-1 Specifications:

  • Part #: 7063A1062-1
  • Physical:
    • Die-cast aluminum construction (A380 grade)
    • Fine-texture, high-temperature powder-coated paint
    • Steel yoke with 0.406” diameter mounting hole
    • Rotating shutter assembly ±175°
    • E-size gobo pattern holder (included)
    • 37.5mm with a 25.4mm image area
    • Holds patterns up to .05” thick (1.27mm)
    • Stainless steel, full hard shutters in a tri-plane assembly, 0.40mm (A301 grade)
    • Fixed-beam angles to suit a range of throw distances
    • Tool-free tilt and beam adjustment
    • High-impact resistant, thermally insulated knobs and shutter handles
    • Dual captive accessory slots for 2.75” (70mm) media frame(included)
  • Track mount:
    • Compatible and ETL-listed for EUTRAC brand track
    • EUTRAC (#98-549) two-circuit track adapter included
    • LED factory-installed in color-matched adapter (black adapter for silver fixtures)
    • For ceiling mount installations only
    • Black or white power lead
    • IP20 for Portable and Canopy versions
    • IP40 for Track version
  • Electrical:
    • Power at full intensity: 12W typical, 14W max
    • 18 AWG input wire size
    • Input voltage options:
    • 90-135V, 50/60Hz
    • 190-250V, 50/60Hz
    • Dimmable (forward and reverse phase)
    • Inrush (first half-cycle)
    • 120V: <1A
    • 240V: <1A
  • Lamp:
    • Cree LED (Available in 80+ and 90+ CRI)
    • Long-life lamp: 35,000 hours L70 lumen maintenance
    • 3000K color temperature (standard)
  • Optical:
    • Fixed-beam options of 19°, 26°, 36° and 50° field angles
    • Projector-quality, high-contrast lenses
    • Beam edge continually adjustable hard to soft
  • Thermal:
    • 0°C to +40°C
  • Weights and Dimensions:
    • Track Mount version:
    • Weight: 2.4 lbs (1.1kgs)
    • Shipping Weight: 3.6 lbs (1.6kgs)
