Decimator Design DMON-16S
16 Channel Video Multiviewer with HDMI and SDI


Decimator Design's DMON-16S is a 1 to 16 Channel MultiViewer with SDI and HDMI outputs for 3G/HD/SD and Custom Layouts, UMDs, Audio Meters, Graticules, and Tallies.
Learn More
Our Price: $1,495.00
Write the first review.
Decimator Design DMON-16S
In Stock

Related Products

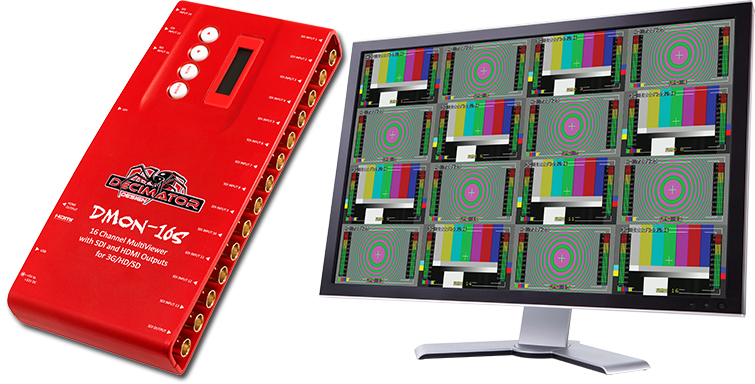

Decimator Design's DMON-16S is a 1 to 16 Channel MultiViewer with SDI and HDMI outputs for 3G/HD/SD and Custom Layouts, UMDs, Audio Meters, Graticules, and Tallies. The DMON-16S is a truly portable converter that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.

Decimator Design DMON-16S Includes:

  • 32 GPI on 37-pin D-SUB connector for Tallies and Remote Switching
  • RS422/485 on 37-pin D-SUB connector for Dynamic UMD and
  • Tallies via TSL protocol
  • USB port for control and firmware updates
  • Heavy duty metal box
  • Metal Thread Locking DC Power Socket
  • Power Supply, HDMI Cable and USB Cable

Decimator Design DMON-16S Features:

  • Support both 3G level A and B on the input and output, allowing conversion between 3G level A and B.
  • Low cost miniature (3G/HD/SD)-SDI 1-to-16 channel Multi-Viewer or 16-to-1 input multiplexer
  • Custom Layouts with various standard layouts
  • 16 Character UMD overlay per window with individual enables, custom positioning and size
  • 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
  • Safe Action and Safe Title overlay per window with individual enables and adjustment
  • Center Cross overlay per window with individual enable
  • Audio ID overlay
  • Tallies can be applied to either Tally Boxes (Default), outside Safe Action Area or Border
  • Tally boxes allows for up to 4 Tallies per window (Green, Red, Blue and Yellow)
  • Load and restore Custom Layouts
  • Fast switching between inputs using Full-Screen scaling
  • Selectable output format in both Full-Screen and Multi-Viewer mode
  • Low latency buffering for each input allowing non-synchronous inputs
  • Linked (3G/HD/SD)-SDI and HDMI outputs
  • 16 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
  • Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
  • Variable aspect ratios per window
  • Pass-Through mode allowing any of the 16 inputs to be elected and routed to both the (3G/HD/SD)-SDI and HDMI outputs

Decimator Design DMON-16S Specifications:

  • SDI Input & Output Formats:
    • 3G:
      • SMPTE 424M @2.97 and 2.967Gb/s
        - 1080p @60/59.94/50Hz
      • HD:SMPTE 292M/274M/296M @1.485 and 1.435Gb/s
        - 1080i @60/59.94/50Hz
        - 1080p/psf @30/29.97/25/24/23.98Hz
        - 720p @60/59.94/50/30/29.97/25/24/23.98Hz
      • SD:SMPTE 259M @270Mb/s
        - 625i50
        - 525i59.94
  • LCD / Button Menu Options:
    • HDMI output type
    • Output Select
    • Multi-Viewer Output Format
    • Multi-Viewer Number of Windows
    • Multi-Viewer Layout
    • Multi-Viewer Audio Source
    • Multi-Viewer Reference
    • Full Screen is Scaled
    • Input Routing
    • GPI mode
    • Setup
  • HDMI Output Formats:
    • 1080p @60/59.94/50Hz
    • 1080i @60/59.94/50Hz
    • 1080p @30/29.97/25/24/23.98Hz
    • 720p @60/59.94/50/30/29.97/25
    • 625i50
    • 525i59.94
  • Inputs:
    • 16 x (3G/HD/SD)-SDI
    • Input Equalization > 100M using Belden 1694A
    • USB for control and updates
  • Power:
    • +5V to +32V DC
    • Positive Center Pin
  • Outputs:
    • HDMI Type A
    • 1 x SDI (3G/HD/SD)-SDI
  • Physical:
    • Dimension: 8.7” x 4.1” x 1.2” (220 x 103.7 x 29.5mm)
