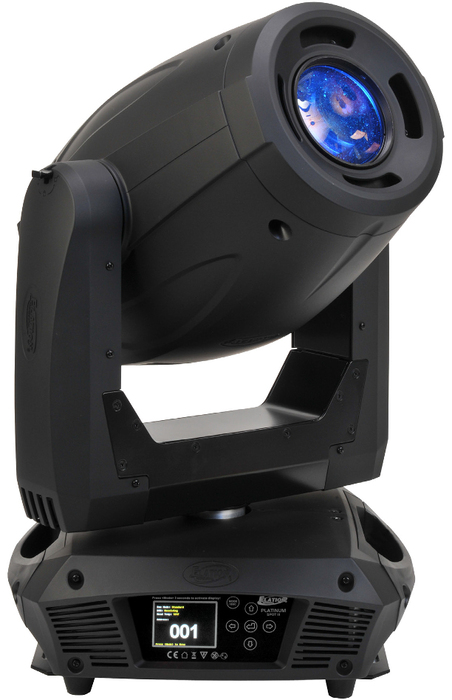

Elation Pro Lighting Platinum Spot III
250W LED Spot with Zoom Fixture

OUR PART #:  PLATINUM-SPOT-III

Elation Pro Lighting's feature-rich Platinum Spot III™ includes a new 230W 8,500K >79CRI Cool White LED engine, delivering a bright 7,200 lumens, 16° to 32° zoom...
Learn More
Our Price: $2,480.00
List Price: $3,100.00
You save 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Elation Pro Lighting Platinum Spot III
Qty:
In Stock

Similar Products

Elation Pro Lighting's feature-rich Platinum Spot III™ includes a new 230W 8,500K >79CRI Cool White LED engine, delivering a bright 7,200 lumens, 16° to 32° zoom, 8 dichroic colors, 7 rotating-interchangeable glass and 7 static-stamped metal gobos, a bi-directional variable speed animation wheel, 3-facet rotating prism, frost filter, motorized iris and focus, variable dimming curves, high speed mechanical shutter and strobe, hibernation mode, 3 and 5pin DMX in/out connections, RDM (Remote Device Management), full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).

Elation Pro Lighting Platinum Spot III Features:

  • Cool White LED Spot Luminaire
  • 230W, 8,500K, >79CRI, 7,200 Lumen, 60,000 Hours
  • 16° to 32° Motorized Zoom, eight Dichroic Colors
  • Seven Rotating-Interchangeable and seven Static-Stamped Gobos
  • Bi-Directional Variable Speed Animation Wheel
  • 3-Facet Rotating Prism and Frost Filter
  • High Speed Mechanical Shutter and Strobe
  • Motorized Iris and Focus and Variable Dimming Curves
  • Low Heat, Quiet Operation, Hibernation Mode
  • Flicker Free Operation For Broadcast TV and FILM

Elation Pro Lighting Platinum Spot III Specifications:

Source

  • 230W Cool White LED Engine
  • 60,000 Hour Average LED Life

Photometric Data

  • 8,500K, >79CRI, >7,200 Lumens
  • 17,500 LUX 1,626 FC @8.2’ (2.5m) (16° Full ON)
  • 5,373 LUX 499 FC @8.2’ (2.5m) (32° Full ON)

Effects

  • 16° - 32° Motorized Zoom
  • Bi-Directional Variable Speed Animation Wheel
  • 3-Facet Rotating Prism and Prism Macros
  • Frost Filter Hybrid Wash Effect
  • Motorized Zoom, Iris and Focus
  • High Speed Mechanical Shutter and Strobe
  • Variable Dimming Curves

Color

  • 8 Dichroic Colors

Gobos

  • 7 Interchangeable-Rotating / Indexing Glass Gobos
  • 7 Static-Stamped Metal Gobos

Control / Connections

  • (3) DMX Channel Modes (18 / 20 / 27)
  • RDM (Remote Device Management)
  • 6 Button Touch Control Panel
  • Full Color 180° Reversible LCD Menu Display
  • 8-, 16-Bit Resolution Adjustable Movement
  • 3-pin & 5-pin DMX In/Out

Physical

  • Length: 14.8” (375mm)
  • Width: 15.1” (384mm)
  • Vertical Height: 23.7” (601mm)
  • Weight: 46 lbs. (20.8 kg)

Electrical / Thermal

  • AC 100-240V - 50/60Hz
  • 350W Max Power Consumption
  • -13°F to 113°F (-25°C to 45°C)

Approvals / Ratings

  • CE | RoHs Compliant | IP20

Installation Informtion

  • Rigging: Clamps (sold separately)
  • Working Position: Flat Surface / Inverted (180°)

NOTE: Specifications and documentation subject to change without notice. More information located in the documents listed under the "Documentation" tab
