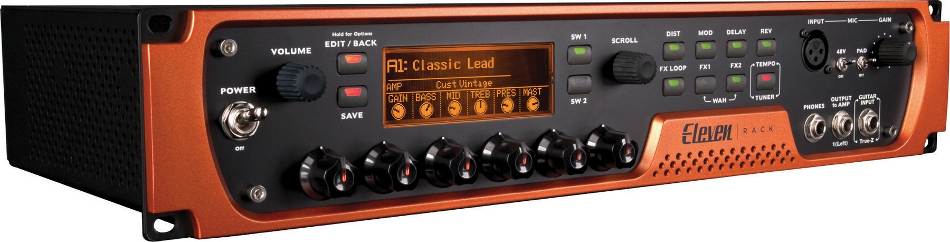

Avid Eleven Rack
Guitar Recording Effects Processing System w/Pro Tools Subscription


Eleven™ Rack is a revolutionary guitar recording and effects processing system designed to eliminate the challenges guitarists have faced in the studio and on stage.
Learn More
Our Price: $699.00
Write the first review.
Avid Eleven Rack
Usually ships in 7-14 business days.
Need it sooner? Call us!

Eleven™ Rack is a revolutionary guitar recording and effects processing system designed to eliminate the challenges guitarists have faced in the studio and on stage. Say goodbye to the lackluster guitar amp "models" of yesteryear: Eleven Rack utilizes a unique tone cloning design and one-of-a-kind, custom-designed True-Z input to re-create the experience of playing through a full guitar rig. By combining studio-standard Pro Tools® software with a DSP-accelerated high-resolution interface, Eleven Rack puts professional recording into the hands of every guitar player. Whether you’re tracking in the studio or playing on stage, Eleven Rack delivers fresh, mind-blowing, hyper-realistic guitar amp and effects tones that will inspire your best performances.

Eleven Rack in the Studio
Eleven Rack combines studio-standard Pro Tools software with a high-resolution, dual DSP-powered audio interface so you’ll never have to worry about latency when recording with its built-in amp/effects tones — nor will your computer have to carry the processing burden. Eleven Rack also takes re-amping to the next level by recording both dry and processed guitar signals simultaneously, allowing you to re-amplify later without patching a single cable. Digidesign even found a way to embed the Eleven Rack amp and effects settings into the audio tracks you record, enabling you to automatically recall those settings from your audio files on any Pro Tools system with Eleven Rack.

Eleven Rack On Stage
Eleven Rack also rocks onstage as a standalone amp tone and effects signal processor — Digidesign pulled out all the stops to make sure it sounds and feels just like playing through the real deal. It includes a classic collection of effects, from must-have stompboxes to world-class rackmount studio processors. Eleven Rack has all the I/O flexibility you need to integrate it into your existing rig, and easily incorporate the tones you’ve recorded with into your live setup — closing the gap between studio and stage. Eleven Rack also offers incredibly powerful control options using affordable MIDI controllers and expression pedals, giving you full foot control over everything from vintage wah effects to tempo-driven delays and more.

Eleven Rack Hardware:

  • Unique True-Z auto-impedance matching guitar input
  • Incredible emulations of classic guitar amp tones inspired byFender®,Vox®, Marshall®, Soldano, and Mesa/Boogie® amps*
  • Refined collection of sought-after classic stompbox tones inspiredbyeffects from MXR®, Electro-Harmonix®, Ibanez®, ProCo, Univox®, and more*
  • Powerful collection of studio-quality rackmount effects processors
  • Convolution-based cabinet emulations deliver unprecedented realismincabinet tones
  • Convolution-based microphone emulations inspired by classicdynamic,condenser, and ribbon mic designs
  • Integrated FX loop switchable to incorporate existing mono or stereorackand stompbox effects
  • Controllable via MIDI controllers and expression pedals
  • Built-in tuner
  • Tap-tempo control of time-based effects
  • High-speed USB 2.0 connection
  • Supports up to 8 simultaneous channels of high-resolution recording upto24-bit/96 kHz
  • Stereo balanced XLR outputs and dedicated 1/4” outputs
  • XLR mic input with 48V phantom power and pad switch
  • 2 x 1/4” line-level inputs
  • AES/EBU and S/PDIF digital I/O
  • Stereo 1/4” headphone jack
  • 1 x 1 MIDI I/O

Guitar amp emulations based on*:

  • ’59 Fender® Bassman®
  • ’59 Fender® Tweed Deluxe
  • ’64 Fender® Black Face Deluxe Reverb® Normal Channel
  • ’64 Fender® Black Face Deluxe Reverb® Vibrato Channel
  • ’66 VOX® AC30 Top Boost
  • ’67 Fender® Black Face Twin Reverb®
  • ’69 Marshall® 1959 100 Watt Super Lead Plexiglas Head
  • ’82 Marshall® JCM800 2203 100-Watt Head
  • ’85 Mesa/Boogie® Mark IIc+ Drive Channel
  • ’89 Soldano SLO100 Super Lead Overdrive Head Clean Channel
  • ’89 Soldano SLO100 Super Lead Overdrive Head Crunch Channel
  • ’89 Soldano SLO100 Super Lead Overdrive Head Overdrive Channel
  • ’92 Mesa/Boogie® Dual Rectifier® Head Vintage Channel
  • ’92 Mesa/Boogie® Dual Rectifier® Head Modern Channel
  • Digidesign Custom Vintage Crunch
  • Digidesign Custom Modern Overdrive
  • Speaker cabinet emulations based on*:
  • ’59 Fender® Bassman® 4x10” with Jensen P10Qs
  • ’59 Fender® Tweed Deluxe 1x12” with Jensen P12Q
  • ’64 Fender® Black Face Deluxe Reverb® 1x12” with Jensen P12N
  • ’66 VOX® AC30 2x12” with Celestion Alnico Blues
  • ’67 Fender® Black Face Twin Reverb® 2x12” with Jensen C12Ns
  • ’68 Marshall® 1960A with Celestion G12H “Greenbacks”
  • ’06 Marshall® 1960AV 4x12” with Celestion Vintage 30s

Microphone emulations based on*:

  • Shure SM7 Dynamic Microphone
  • Shure SM57 Unidyne III Dynamic Microphone
  • Sennheiser MD 409 Dynamic Microphone
  • Sennheiser MD 421 Dynamic Microphone
  • Neumann U67 Condenser Microphone
  • Neumann U87 Condenser Microphone
  • AKG C 414 EB Condenser Microphone
  • Royer 121 Ribbon Microphone

Effects emulations based on*:

  • Spring Reverb (based on the Fender® Deluxe Reverb*)
  • Green JRC Overdrive (based on the Ibanez TS-808*)
  • Tri-Knob Fuzz (based on the Electro Harmonix Big Muff Pi*)
  • Black Op Distortion (based on the ProCo Rat*)
  • Shine Wah (based on the VOX® V-846*)
  • C1 Chorus/Vibrato (based on the Boss CE-1*)
  • Orange Phaser (based on the MXR® Phase 90*)
  • EP Tape Echo (based on the Maestro Echoplex EP-3*)
  • BBD Delay (based on the Electro Harmonix Deluxe Memory Man*)
  • Grey Compressor (based on the Ross Compressor*)
  • Vibe Phaser (based on the Univox Uni-Vibe*)
  • Black Wah (based on the Thomas Organ CB-95 Crybaby*)
  • Flanger
  • Roto Speaker
  • Volume Pedal
  • Eleven SR (Stereo Reverb)
  • Graphic EQ
  • Tuner

*Digidesign Eleven Rack is not connected with, or approved or endorsed by, the owners of the AKG, Boss, Celestion, Electro Harmonix, Fender®, Ibanez, Jensen, Maestro, Marshall®, Mesa/Boogie®, MXR®, Neumann, ProCo, Ross, Royer, Sennheiser, Shure, Soldano, Thomas Organ, Univox, and VOX® names. These names are used solely to identify the guitar amplifiers, speaker cabinets, loudspeakers, effects, and microphones emulated by Eleven Rack.

Avid Pro Tools Eleven Rack Includes:

  • Eleven Rack interface
  • 1-year Pro Tools software subscription activation card - must renew annually to continue using (software download required)
  • Access to all Pro Tools upgrades, bonus plug-ins, and support throughout your subscription
  • Eleven Rack Expansion Pack (preinstalled in Eleven Rack)
  • Eleven Rack Editor (software download required)
  • Power supply
  • iLok 2 USB Key
  • USB cable
  • User documentation

Avid Pro Tools Eleven Rack Specifications:

  • System Requirements
    • For Pro Tools recording/mixing:
      • Avid-qualified Mac or PC
      • USB port: For Eleven Rack connection
      • USB port: For iLok authorization (iLok 2 included)
      • Internet connection: For software installation and authorization
    • For live performance:
      • No computer needed - just you, Eleven Rack, and your guitar or other instrument
    • Compatibility:
      • Eleven Rack: Works with Pro Tools software or use standalone for live performance
      • Pro Tools: Works with Eleven Rack, a third-party audio interface, or standalone
      • Eleven Rack Editor: Requires one of the following 64-bit operating systems:
        • OS X 10.8 and later
        • Windows 8
        • Windows 7
      • Plugins: Supports 64-bit AAX Native plug-ins in Pro Tools
  • Converters: 24-bit
  • Sample rates: 44.1, 48, 88.2 and 96 kHz
  • Analog input:
    • 1 x 1/4" TS True-Z
    • 2 x 1/4" TRS Line
    • 2 x 1/4" TRS FX Loop Return
  • Analog output:
    • 2 x XLR Main
    • 2 x 1/4" TRS FX Loop Send
    • 2 x 1/4" TS output to Amp
  • Digital input:
    • 1 x XLR AES/EBU
    • 1 x RCA coaxial S/PDIF
  • Digital output:
    • 1 x XLR AES/EBU
    • 1 x RCA coaxial S/PDIF
  • MIDI I/O: 2 x 5-pin, DIN MIDI In, MIDI out/thru
  • Sync I/O:
    • AES/EBU
    • S/PDIF
  • Headphone output: 1 x 1/4" TRS
  • Dimensions (WxHxD): 19 x 13.5 x 3.5 inches (48.3 x 34.3 x 8.9 cm)
