Tripp Lite B130-101A-WP-2 VGA with Audio over CAT5/CAT6 Extender Kit Wallplate

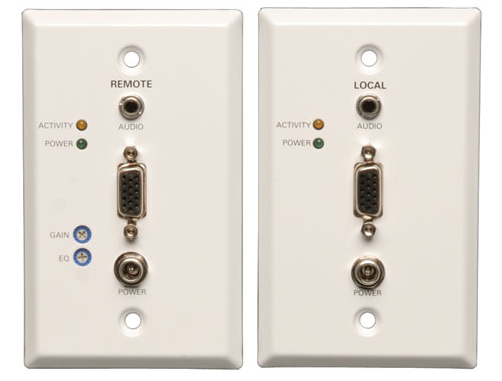

The transmitter and receiver wallplate units included with the Tripp Lite B130-101A-WP-2 VGA Wall Plate Extender Kit work in tandem to extend a VGA signal to to a projector, monitor or television. This kit is ideal for digital signs in schools, churches, or retail applications where the video source is located farther than conventional cables allow. Attractive wallplate units eliminate cable clutter.

Because compatibility issues can occur when EDID information is not properly communicated between the source and the display, the B130-101A-WP-2 includes an EDID copy feature. This enables the transmitter to store the display’s EDID information and send it to the video source, ensuring top-shelf compatibility.

The B130-101A-WP-2 can extend a 1024 x 768 (60 Hz) signal up to 1,000 feet and a 1920 x 1440 (60 Hz) signal up to 500 feet when using 24 AWG solid-wire Cat5e/6 cable (sold separately) to connect the two units. For optimal image quality between 500 and 1,000 feet, use zero-skew cable, such as Tripp Lite’s P524-01K (sold separately). The RJ45-type wallplate jacks accept standard Cat5e/6 patch cables, so no 110 punchdown connection is required, and you can also connect up to (3) B132-110 or B132-110A remote repeaters (all sold separately) in a chain (using Cat5e/6 cable-sold separately) for a total of (5) VGA displays (1 local and 4 remote) and full 1024 x 768(60 Hz) signal extension of 2,000 feet.

Tripp Lite B130-101A-WP-2 Includes:

• Transmitter wallplate unit
• Receiver wallplate unit
• VGA + audio “Y” splitter cable
• Screwdriver for adjusting
• equalization and gain
• (2) External Power Supplies with
• NEMA 1-15P Plug (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A)
• Wallplate screws
• Owner’s Manual

Tripp Lite B130-101A-WP-2 Features:

• Extended Display Identification Data (EDID) Copy Feature
• Transmitter stores monitor’s EDID information and sends it to video source, ensuring optimal display compatibility
• Monitor must be connected directly to transmitter’s VGA port to activate EDID copy feature
• Extends High-Definition VGA Video and Audio Signals
  • Extends a 1024 x 768 (60 Hz) signal up to 1,000 ft. and a 1920 x 1440 (60 Hz) signal up to 500 ft.
  • Connect up to three B132-110 or B132-110A remote repeaters to the chain for maximum 1024 x 768 (60 Hz) signal range of 2,000 ft.
  • Transmitter and receiver connect with one Cat5e/6 cable, such as Tripp Lite’s N022-01K-GY or N222-01K-GY 24 AWG solid-wire Cat5e/6 cable
  • No 110 punchdown connection required
  • For optimal image quality between 500 and 1,000 ft., use zero-skew cable, such as Tripp Lite’s P524-01K
• Easy to Set Up and Use
  • Plug-and-play engineering—no software or drivers to download and install
  • Wallplate units eliminate cable clutter
  • LEDs indicate at a glance when the unit is receiving power
  • Included VGA + audio “Y” splitter cable allows connection of local monitor and speakers
  • Built-in equalization and gain controls lets you adjust the image on the remote monitor
  • Wall-mounting screws included
  • Supports all operating systems, as well as HDCP
• TAA-Compliant
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
  • RoHS compliant

Tripp Lite B130-101A-WP-2 Specifications:

• Overview:
  • Accessories Type Extender
  • Cable Type VGA
• Shipping Weight (lbs.): 1.65
• Connections:
  • Connector A (Front): HD15 (FEMALE) (X2)
  • Connector B (Front): 3.5MM (FEMALE) (X2)
  • Connector C (Rear): RJ45 (FEMALE) (X2)
  • Ports: 2
• Warranty: Product Warranty Period (Worldwide) 1-year limited warranty (contact your Sales Professional for more details)
