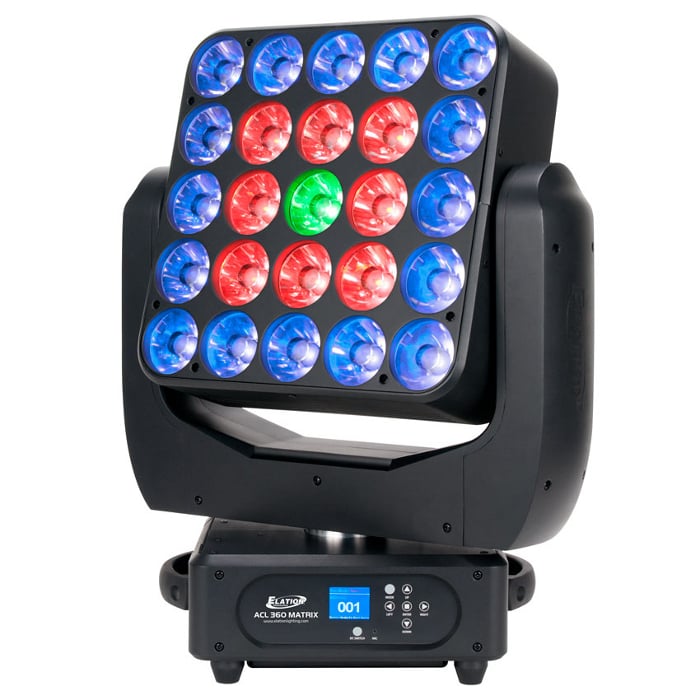

Elation Pro Lighting ACL 360 MATRIX
25 x 15W RGBW Quad LED Moving Head Luminaire

OUR PART #:  ACL-360-MATRIX

The ACL 360 MATRIX™ from Elation is a versatile moving head effect luminaire featuring (25) individual 15W RGBW 4-in-1 LEDs and the new advanced collimator optic lens...
Learn More
Our Price: $2,000.00
List Price: $2,500.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Elation Pro Lighting ACL 360 MATRIX
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ACL 360 MATRIX™ from Elation is a versatile moving head effect luminaire featuring (25) individual 15W RGBW 4-in-1 LEDs and the new advanced collimator optic lens, which combined produce a laser-like homogenized 4° color-changing beam from each lens. Features include fast and precise 16-bit continuous full 360° pan and tilt rotation, full individual pixel control, strobe, and selectable dimming curve effects. This model also includes DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support, 3/5pin XLR, powerCON, and RJ45 ethernet in/out connections. The ACL 360 MATRIX also comes with a (6) button control full color 180° reversible menu display, 425W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).

Elation ACL 360 Matrix Includes:

  • Omega Brackets
  • powerCON Cable

Elation ACL 360 Matrix Features:

  • Versatile 14° Moving Head Effect Luminaire
  • New Advanced Collimator Lens
  • (25) Pixel Control RGBW 4-in1 LEDs
  • Laser-Like Homogenized 4° Color Changing Beams
  • Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
  • Strobe and Selectable Dimming Curve Effects
  • DMX, RDM, KlingNET™ and Art-NET (DMX Over Ethernet) Support
  • Flicker Free Operation for Broadcast TV and FILM

Elation ACL 360 Matrix Specifications:

  • Source:
    • (25) 15W RGBW 4-in-1 LEDs
    • 100,000 Hour Average LED Life*
  • Photometric Data (14° Full ON):
    • 77,344 LUX 7,185 FC @3.3’ (1m)
    • 70,370 LUX 6,537 FC @6.6’ (2m)
    • 54,413 LUX 5,055 FC @9.8’ (3m)
    • 40,505 LUX 3,763 FC @13.1’ (4m)
    • 29,722 LUX 2,761 FC @16.4’ (5m)
  • Effects:
    • Individual Pixel Control
    • Strobe and Selectable Dimming Curves
  • Color:
    • RGBW
  • Control / Connections:
    • (3) DMX Channel Modes (17 / 19 / 115)
    • RDM (Remote Device Management)
    • 6 Button Touch Control Panel
    • Full Color 180° Reversible LCD Menu Display
    • 8 / 16 Bit Resolution Adjustable Movement
    • 3pin/5pin DMX In/Out
    • RJ45 Ethernet In/Out (Art-NET)
    • powerCON Power In/Out
  • Size / Weight:
    • Length: 19.0” (481mm)
    • Width: 13.8” (350mm)
    • Vertical Height: 23.0” (583mm)
    • Weight: 42.0 lbs. (19 kg)
  • Electrical / Thermal:
    • AC 100-240V - 50/60Hz
    • 425W Max Power Consumption
    • 5F to 113°F (-15°C to 45°C)
  • Approvals / Ratings:
    • CE | IP30
  • Installation:
    • Rigging: Clamps (Not Included)
    • Working Position: Flat Surface / Inverted (180°)

NOTE:  *LED Life may vary depending on several factors including but not limited to - Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
