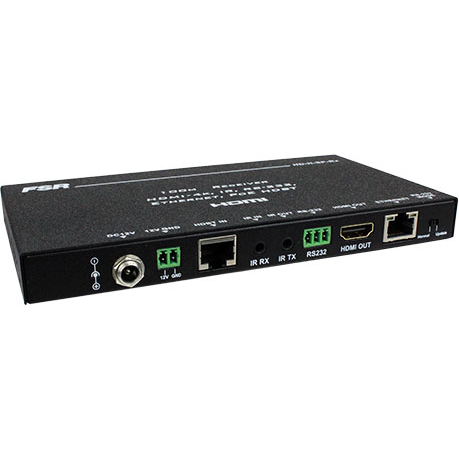

FSR HD-H-SP-Rx HD Base T Slim-Pack Receiver

HDBaseT delivers full HD / 3D and 2K / 4K uncompressed video to a network of devices or to a single device. HDBaseT audio is also passed through directly from the HDMI chipset. HDBaseT audio supports all standard formats, including Dolby Digital, DTS, Dolby TrueHD, and DTS HD-Master Audio.

HDBaseT supports 100Mb Ethernet, enabling communication between televisions, sound systems, computers, and other CE devices as well as access to any stored multimedia content (such as music or video streaming). HDBaseT also supports Ethernet Fallback Mode, which enables seamless integration between a HDBaseT device and an Ethernet-only infrastructure.

HDBaseT enables multiple control signals for multiple purposes: Consumer Electronic Controls (CEC), Recommended Standard (RS)-232, USB, and infrared (IR). IP control is also enabled due to the support of an Ethernet channel. HDBaseT’s wide range of control options provides manufacturers with virtually endless opportunities.

Up to 100W of DC power can also be delivered over the same CAT5e/6 cable. This major aspect of 5Play provides the freedom to place equipment where you want it and not where an available power source happens to be installed.

FSR Inc. HD-H-SP-Rx Includes:

• 12V 2A DC power supply

FSR Inc. HD-H-SP-Rx Features:

• HDMI Out
• RS-232 via 3-Pin Captive Screw Terminal (Tx, Rx, GND)
• IR RX & TX via 1/8" mini jacks
• Two Ethernet Ports (RJ-45)
• 12v Power via screw connector or 2-Pin Captive Screw Terminal (12v & GND)
• De-embedded Stereo Audio Out (1/8" Mini Jack)
• HDBaseT In (RJ-45)

FSR Inc. HD-H-SP-Rx Specifications:

• Dimensions (W x L x H): 9.13" x 3.67" x 0.71"
