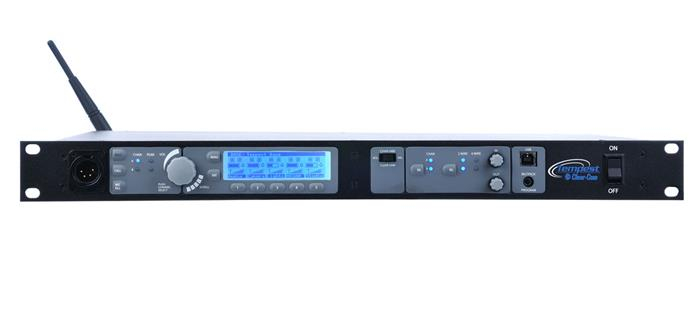

Tempest TMP-B224
2-Channel 2.4GHzTempest Base Station

OUR PART #  TMP-B224

Our Price: $4,495.50
List Price: $4,995.00
You save 10%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The CoachComm TMP-B224 is a 2-channel 2.4GHz Frequency Hopping Spread Spectrum (FHSS) digital wireless intercom BaseStation. The front panel LCD display provides real time status including attery monitoring of active beltbacks and easy access to the hardwire intercom settings and levels. Each BaseStation is capable of Call and Remote Mic Kill.

Versatility
The TMP-B224 BaseStation connections include a 2-wire interface with M/F 3-pin XLR loop thru and one 4-wire RJ45 port per channel. The 2-wire interface is compatible with Clear-Com,® RTS,® and Telex® intercom systems, and includes n auto-null circuit.

Expandability
Utilizing the Tempest system’s TDMA technology and proprietary ZSync synchronization, up to 11TMP-B224 BaseStations and 55 full-duplex wireless BeltStations (in Normal Mode) can be used simultaneously. By switching to Shared or Split Mode, an unlimited number of BeltStations can be registered to each BaseStation using shared resources.

RF Performance
The TMP-B224 BaseStation is supplied with a single whip antenna (RP-TNC RF connector). On the rear is a RJ45 connector for a (optional) remote transceiver. The remote transceiver can be located up to 1500ft (450m) away from the BaseStation over CAT-5/6 cable with no loss of RF signal.

Tempest2400 Seamless Roaming
The TMP-B224 BaseStations cover large areas with multiple zones by using Seamless Roaming. Seamless Roaming allows one or more Tempest2400 BeltStations to roam between as many as 16 different BaseStations (coverage areas or zones) without any intervention from the end user. BeltStations act as they normally do while roaming and there is no interruption of audio or control when a BaseStation switches from one BaseStation to another.

ZSync Technology
ZSync technology provides a zero sync reference that coordinates the hopping patterns of all connected BaseStations.ZSync ensures that there is a fixed relationship between all of the BaseStation radios, irrespective of random time variation in power up sequences.

CoachComm TMP-B224 Features:

  • 2-channel digital wireless BaseStation
  • 2.4GHz, license free operation
  • (2x) TX redundant data transmission
  • Lost Packet Concealment prevents “clicks” and “pops” when a data packet is lost
  • Connect an unlimited number of BeltStations per BaseStation
  • T-Desk software enables remote monitoring via LAN interface
  • Optional Remote Transceiver extends antenna coverage up to 1,500 ft (450m)from BaseStation

CoachComm TMP-B224 Specifications:

  • Tempest2400 2-Channel Wireless Intercom SystemSpecifications:
    • RF Frequency: 2400 to 2480 GHz
    • RF Scheme: FHSS with TDMA
    • Effective Radiated Power: 100mW using 2dBi antenna
    • Receiver Sensitivity: -93 dBm for 10-5 BER
    • Radio Certification: FCC Part 15.247 and ETS 300.328 rules, license free
    • Transmission Range: Up to 1,000ft (305m); 500 - 900ft (150 - 275m) typical
    • Audio Dynamic Range: >94dB
    • Audio Frequency Response: 300Hz - 3.8KHz with proprietary audio voice shaping
  • BaseStation Specifications:
    • Intercom Audio Channels: 2
    • Full-duplex BeltStations per BaseStation: 5 (in Normal Mode)
    • Half-duplex, Shared Beltstations per Base Station: Unlimited
    • Number of Antenna Ports per BaseStations: 1
    • Antenna Connector Type: RP-TNC
    • Number of Synchronized BaseStations: 10
    • Base Station/BeltStation Pairing: Mini-jack/cable
    • Programming Port: USB
    • Stage Announce and GPO Closures: 6 relays via DB15
    • 2-wire Intercom Interface: 2 channels via XLR-3F with XLR-3M loop
    • 2-wire Compatibility: Clear-Com, RTS and balanced compatible
    • 4-wire/Matrix Connection: 2 ports via RJ-45
    • Aux Input: 1/4” 3-conductor jack accepts -4 to +8dB, balanced, transformer isolated
    • Aux Output: 1/4” 3-conductor jack nominal -4 to +8dB, balanced, transformer isolated
    • Stage Announce Output: XLR-3M, nominal -4 to +8dB, balanced, transformer isolated
    • Front Panel Headset: 4-pin male XLR
    • MicrophoneType: Dynamic or Electret, Auto-Selected
    • Environmental: -4° – 122° F (-20° – 50° C)
    • Dimensions: 19 in W x 1.76 in H x 12 in D(483 mm x 44 mm x 190 mm)
    • Weight: 10.5 oz (4.75kg)
