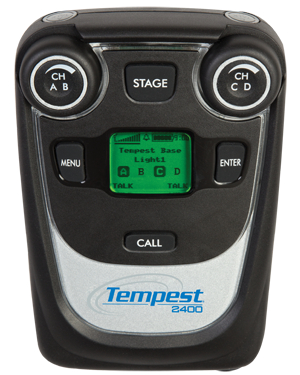

Tempest TMP-R424
4-Channel 2.4GHz Tempest BeltStation

OUR PART #  TMP-R424

Our Price: $1,921.50
List Price: $2,135.00
You save 10%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The CoachComm 2400 4-channel wireless BeltStation operates in conjunction with the Tempest2400BaseStations. Each Talk button has individual LED indicators. The Talk button can be latching or momentary. The Call button sends a 2-wire compatible call signal to  any wireless BeltStation and any hardwired intercom device on the intercom channel. BeltStations are provided with a rechargeable  Lithium-Polymer battery capable of  nine hours of operation or can be powered by three Standard AA Alkaline batteries. Each BeltStation has its own back-lit display and menu functions, which allow settings to be changed locally at the BeltStation.

Audio
Each full-duplex BeltStation establishes a unique audio path (point-to-point) with the associated  BaseStation delivering an individualized mix minus signal to other BeltStations in the system. Therefore, each BeltStation can monitor a unique mix of intercom channels and other audio sources.

Durability
The TMP-R424 BeltStations are made of a weather-resistant ABS co-polymer blend with a high performance polyurethane over-mold.

Tempest2400 Seamless Roaming
Tempest2400 Seamless Roaming is the ability for one or more Tempest2400 BeltStations to move freely from one BaseStation to another without any intervention from the end user. This allows the implementation of a Tempest2400 wireless intercom system which can cover large areas with multiple zones or areas in a facility that would not be adequately supported by a single antenna installation. A BeltStation can roam between as many as 16 different BaseStations (coverage areas or zones). In addition, all Tempest operational modes (Normal, Shared and Split) are supported for seamless roaming.

CoachComm TMP-R424 Features:

  • 4-channel, full-duplex BeltStation
  • 2.4GHz, license free operation
  • Dual Talk/Listen operation
  • Backlit LCD screen shows battery life, RF signalstrength, and more
  • Stage Announce Output with relay closure
  • 5 individually assignable relay closures atBaseStation
  • Lithium-Polymer Rechargeable battery  (or 3Alkaline AA batteries)
  • Weather-resistant enclosure
  • Roaming Features:
    • Seamless Roaming of BeltStation between BaseStations
    • Supports Normal, Shared and Split modes
    • Scalable architecture allows for seamless linked roaming zones
    • Seamless handoffs between roaming zones are automatic
    • RoHS compliant

CoachComm TMP-R424 System Specifications:

  • RF Frequency: 2,400 to 2,480 GHz
  • RF Scheme: FHSS with TDMA
  • Effective Radiated
  • Power: 100mW using 2dBi antenna
  • Receiver Sensitivity: -93 dBm for 10-5 BER
  • Radio Certification: FCC Part 15.247 and ETS 300.328rules, license free
  • Transmission Range:
    • Up to 1,000ft (305m)
    • 500 - 900ft (150 - 275m) typical
  • Audio Dynamic Range: >94dB
  • Audio Frequency Response: 300Hz - 3.8kHz withproprietary audio voice shaping
  • BeltStation Specifications:
    • Intercom Audio Channels: 4
    • Headset Connector: 4-pin male XLR
    • MicrophoneType: Dynamic or Electret, Auto-Selected
    • Antenna Internal: +2 dBi patch
    • Charger Input: 100-240V, 0.3A, 50-60Hz
    • Charger Output: 5V, 1.25A
    • Battery Charging: via mini USB connector using supplied charger
    • Battery Life, Rechargeable Lithium-Polymer: Up to 9+ hours
    • Charge Time, Rechargeable Lithium-Polymer:
      • 2 3/4 hours in BeltStation
      • 2 1/2 hours in charger (from empty)
    • Optional Power: 3 Standard AA alkaline cells
    • Battery Life, Alkaline: Approximately 4 hours
    • Environmental: -4º – 122º F (-20º – 50º C)
    • Dimensions (W x H x D): 4.0" x 6.1" x 1.75" (102 mm x 156 mm x 44.5 mm)
    • Weight: 14.3 oz. (0.41 kg)
