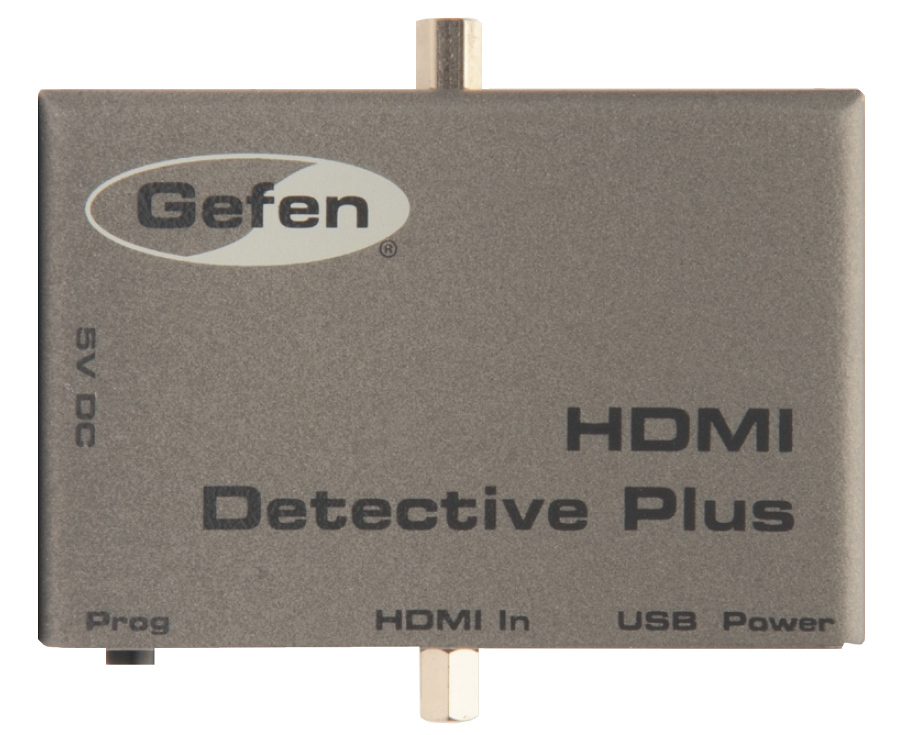

Gefen Inc EXT-HD-EDIDPN
HDMI Detective Plus

OUR PART #:  EXT-HD-EDIDPN

Keep your HDMI sources and displays in perfect sync with Gefen's HDMI Detective Plus.
Learn More
Gefen EXT-HD-EDIDPN - Example Diagram View
Gefen EXT-HD-EDIDPN - Side View
Gefen EXT-HD-EDIDPN - Rear View

Click a thumbnail to see more images. (5 total)

Our Price: $164.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Gefen Inc EXT-HD-EDIDPN
Qty:
In Stock

Similar Products

Keep your HDMI sources and displays in perfect sync with Gefen's HDMI Detective Plus. High Definition displays with HDMI inputs use EDID (Extended Display Identification Data) to ensure that a connected Hi-Def source sends compatible audio and video signals. In some scenarios, this data can be lost, resulting in an incorrect signal or complete loss of audio and/or video. The Gefen HDMI EDID Detective Plus has been designed specifically to address this issue by recording the display EDID date and making it available to the Hi-Def source reliably and on a continuous basis. With DDC re-clocking technology, the reliability of HDCP handshaking is improved, ensuring that the Hi-Def source always receives the correct EDID. Using the Gefen Syner-G PC software or terminal emulation via USB, the installer can also manipulate/modify the EDID data to meet installation-specific requirements and resolve system-specific compatibility issues. The HDMI EDID Detective Plus has been designed for quick and easy programming and installation.

Gefen HDMI Detective Plus Includes:

  • (1) HDMI Detective Plus (EXT-HD-EDIDPN)
  • (1) 1 ft. Locking HDMI Cable (CAB-HD-LCK-01MM)
  • (1) 6 ft. Mini USB to USB Cable (CAB-MUSB2USB-6-O)
  • (1) 5V DC Power Supply (EXT-PS526AIPN)
  • (1) Quick-Start Guide (QSG-HD-EDIDPN)

Gefen HDMI Detective Plus Features:

  • Supports resolutions up to 1080p Full HD, and 1920 x 1200 (WUXGA)
  • HDMI Features Supported:
    • HDCP
    • 12-bit Deep Color
    • LPCM 7.1 audio, Dolby® TrueHD, Dolby Digital® Plus,and DTS-HD® Master Audio™
    • 3DTV pass-through
    • Lip-Sync pass-through
    • CEC pass-through
  • USB port for advanced programming of features such as EDID management
  • Configurable EDID using Gefen Syner-G™ software suite, downloadable from Gefen website.
  • DDC Re-clocking
  • Records the EDID from a display
  • 6 pre-programmed EDID profiles
  • 6 user-programmable EDID banks for copying/uploading EDIDs
  • Selectable HDCP pass-through
  • Field updatable firmware via USB port
  • Compact and portable

Gefen HDMI Detective Plus Specifications:

  • Maximum Pixel Clock: 225 MHz**
  • Maximum TMDS Clock: Up to 225 MHz**

NOTE: ** Pass-through. Actual performance depends on cable length and quality.

  • Video Input Connector: (1) HDMI Type A 19-pin, female, locking
  • Video Output Connector: (1) HDMI Type A 19-pin, female, locking
  • USB port: (1) Mini-B
  • EDID Memory Size: 256 Bytes
  • EDID Write Protect Switch: (1) slide-type
  • EDID Program Button: (1) tact-type
  • EDID programming switches: (3) DIP-type
  • HDCP pass-thru/block switch: (1) DIP-type
  • Power Supply: 5V DC
  • Power Consumption: 5W (max.)
  • Dimensions (W x H x D): 2.7" x 1.3" x 1.8" (68mm x 33mm x 46mm)
  • Shipping Weight: 2 lbs (0.9kg)
