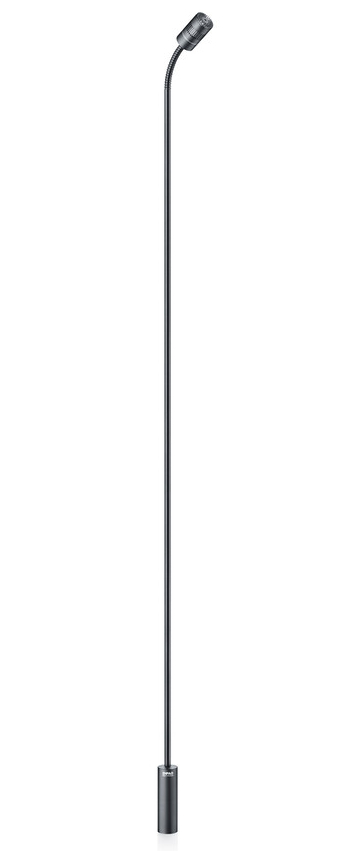

DPA Microphones 4018F75
Supercardioid Microphone with 75cm (30”) Floor-Stand Boom

OUR PART #:  4018F75

The DPA Microphones model 4018F75, part of their flexible d:dicate™ Microphones Series, has a highly-directional supercardioid pickup pattern delivering a smooth...
Learn More
DPA Microphones UA0639 Clip for d:dicate
DPA Microphones d:dicate Capsule Windscreen
DPA Microphones MMC4018 Mic Capsule

Click a thumbnail to see more images. (5 total)

Our Price: $1,909.95

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones 4018F75
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DPA Microphones model 4018F75, part of their flexible d:dicate™ Microphones Series, has a highly-directional supercardioid pickup pattern delivering a smooth, uniform off-axis frequency response, with this particular version sporting a 75cm (approx. 30") Floor-Stand Boom.

With their modular design, the DPA d:dicate series components can be combined and reconfigured to meet your needs (various other components sold separately, contact your Sales Pro for more information).

MMC4018 Microphone Capsule
The supercardioid pickup shape of the capsule is frequency independent, securing an identical sound color around the microphone. The usual rear pickup lobe heard on most supercardioids is minimized when using this capsule, providing much more acoustic isolation without sudden frequency-dependent peaks and dips.

A Truly Flexible Range
With no tools required, and at any time, it's possible to transform the d:dicate™ 4018F Supercardioid Microphone into a new and different configuration, including the capability to combine it with another d:dicate or d:facto™ Preamplifier or Microphone Capsule (all sold separately).

MMP-F Series Modular Active Boom
Along with its state-of-the-art preamplifier design and sleek appearance, you'll be able to combine this preamplifier with any modular capsule in the d:dicate Microphones Series (all sold separately). It also delivers excellent radio frequency rejection via DPA-designed impedance balancing with active drive.

DPA Microphones 4018F75 Includes:

  • MMC4018 Supercardioid Microphone Capsule
  • MMP-F75 Modular Active Boom
  • Clip for d:dicate™
  • Foam Windscreen for d:dicate:
    • Diameter: 19mm (.75")
    • Length: 56mm (2.2")

DPA Microphones 4018F75 Features:

  • Low noise and natural voice
  • Highly directional for high isolation
  • Most controlled supercardioid shape
  • Uniform, frequency independent directionality
  • Ultimate podium or floor mic
  • Modular flexibility

DPA Microphones 4018F75 Specifications:

  • Directional pattern: Supercardioid
  • Principle of operation: Pressure gradient
  • Cartridge type: Pre-polarized condenser
  • Frequency range: 20 Hz - 20 kHz
  • Frequency range, ±2 dB, at 30 cm (11.8"): 40 Hz - 18 kHz
  • Sensitivity, nominal, ±2 dB at 1 kHz: 12 mV/Pa; -38.4 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 16 dB(A) re. 20 µPa (max. 19 dB(A))
  • Equivalent noise level, ITU-R BS.468-4: Typ. 23 dB
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 78 dB(A)
  • Total harmonic distortion (THD): < 1% up to 137 dB SPL peak
  • Dynamic range: Typ. 121 dB
  • Max. SPL, peak before clipping: 142 dB
  • Output impedance: 100 Ohms
  • Minimum load impedance: 2 kOhms
  • Cable drive capability: 328ft (100m)
  • Output balance principle: Impedance balancing
  • Common mode rejection ratio (CMRR): > 40 dB
  • Power supply (for full performance): 48 V Phantom power (± 4 V)
  • Current consumption: 3.5 mA
  • Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
  • Color: Matte black
  • Microphone diameter: 19mm (0.75")
  • Capsule diameter: 19mm (0.75")
  • Microphone length:
    • Capsule: 23mm (0.9")
    • Boom pole: 75cm (approx. 30")
  • Maximum output voltage, RMS: 2.2 V
  • Polarity: +V at pin 2 for positive sound pressure
  • Temperature range: -40°F to 113°F (-40°C to 45°C)
  • Relative humidity (RH): Up to 90%
  • Matching tolerance (frequency response and sensitivity): ±1 dB
  • Phase deviation for kit: < 10
  • Capsule Polar Pickup Pattern:

  • Capsule Typical On-/Off-Axis Frequency Response:
