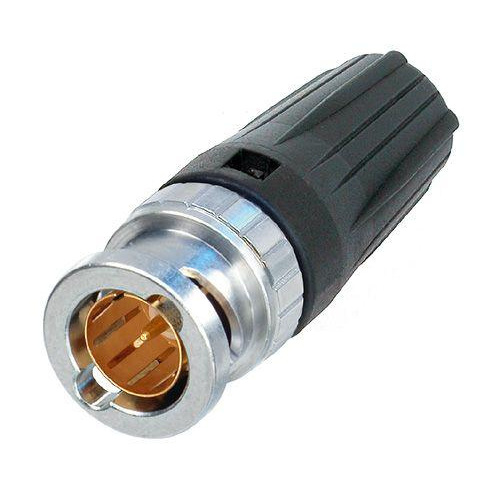

Neutrik NBNC75BQP11
BNC Cable Connector, Rear Twist

OUR PART #:  NBNC75BQP11

The Neutrik NBNC75BQP11 is a 75 Ohm rearTWIST HD BNC cable connector, bagged with black bushing. Suitable for cables: Belden 1695A and CommScope 2279V.
Learn More
Our Price: $2.43
List Price: $3.64
Save up to 44% when you order by quantity!
  • Buy 25: $2.20 each.
  • Buy 50: $2.12 each.
  • Buy 100: $2.04 each.
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NBNC75BQP11
Qty:
Similar Products

The Neutrik NBNC75BQP11 is a 75 Ohm rearTWIST HD BNC cable connector, bagged with black bushing. Suitable for cables: Belden 1695A and CommScope 2279V.

Neutrik NBNC75BQP11 Features:

  • “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
  • Ideal for recessed bulkheads where access to the“head” of the connector might be an issue. These connectors turn from the back and not the front
  • True 75 O design meets the stringent HDTV / DVD requirements
  • Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles
  • Snug-fit center pin insert provides tactile feedback
  • Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
  • Excellent cable protection and retention
  • Precise Swiss machined brass parts for outstanding durability

Neutrik NBNC75BQP11 Specifications:

Electrical Specifications:

  • Impedance: 75 ohm
  • Rated voltage: < 50 V
  • Insulation resistance: > 5 G ohm
  • Dielectric withstanding voltage: 1500 V dc
  • VSWR / Return Loss:
    • = 1.050 / > 32 dB up to 1 GHz
    • = 1.065 / > 30 dB up to 2 GHz
    • = 1.10 / > 26 dB up to 3 GHz
  • Inner contact resistance: = 3 m ohm (initial)
  • Outer contact resistance: = 2 m ohm (initial)

Mechanical Specifications:

  • Cable anchoring: jacket crimping
  • Durability: 1000 cycles minimum
  • Center contact retention: > 30 N
  • Engagement force: < 25 N
  • Crimp size: 6.47 mm
  • Crimp pin size: 1.6 mm
  • Contact crimpability: complies with IEC 60803 and IEC 60352-2

Material Specifications:

  • Shell: Brass CuZn39Pb3, OPTALLOY® coated
  • Contacts: Brass (CuZn35Pb2), 0.2 µm AuCo (Centercontact)
  • Insulator: Teflon PTFE
  • Temperature range: -30°C to +85°C
