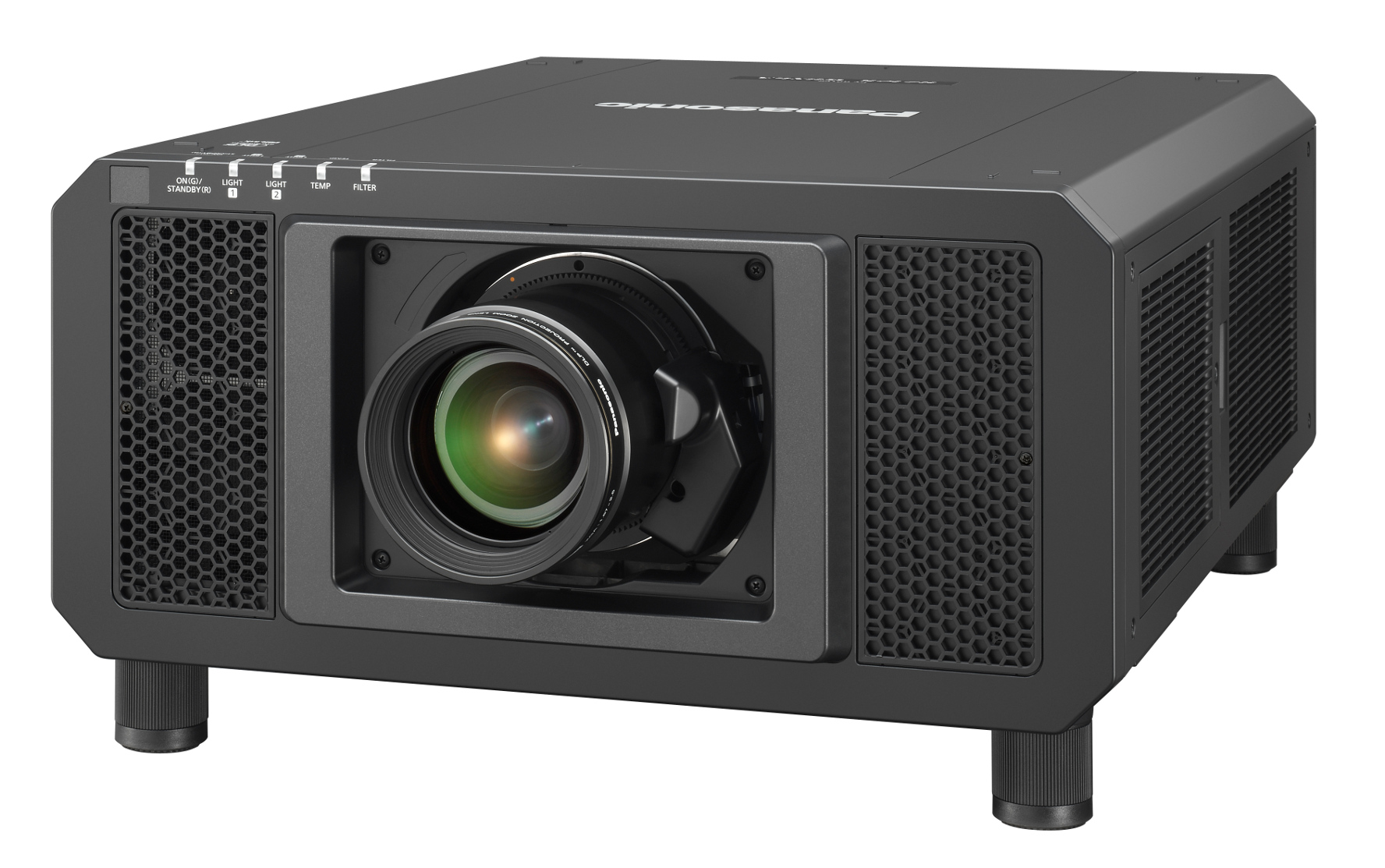

Panasonic PT-RZ12KU 12000 Lumens WUXGA 3DLP Laser Projector, No Lens

OUR PART #: PTRZ12KU MFR #: PT-RZ12KU

Copied to clipboard
Panasonic PT-RZ12KU 12000 Lumens WUXGA 3DLP Laser Projector, No Lens Image 1
Panasonic PT-RZ12KU 12000 Lumens WUXGA 3DLP Laser Projector, No Lens Image 2
Panasonic PT-RZ12KU 12000 Lumens WUXGA 3DLP Laser Projector, No Lens Image 3
Panasonic PT-RZ12KU 12000 Lumens WUXGA 3DLP Laser Projector, No Lens Image 4
Panasonic PT-RZ12KU 12000 Lumens WUXGA 3DLP Laser Projector, No Lens
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Panasonic's PT-RZ12KU allows you to take laser projection to a whole new level as this 12,000 lumen 3-Chip DLP™ Series projector combines class-leading imaging with the practical advantages of Panasonic SOLID SHINE Laser technology - minimal picture quality degradation over long periods in continuous use, 20,000-hour maintenance-free operation*, flexible installation, failsafe reliability, and a wealth of powerful features for creative visual presentations in large spaces.

With this model you'll experience improved image quality that will match the reliable operation - with a unique high-speed Real Motion Processer chip, Panasonic has refined the PT-RZ12K Series’ optical engine to enhance focus performance for a better sense of resolution, contrast, and fluidity. The Real Motion Processor creates supplemental frames and interpolates for a fast 120 Hz*6 frame-rate, resulting in incredibly smooth and realistic reproduction of motion. Further, images of up to 120 Hz*6 can be displayed with Dual-link 3G-SDI, DVI-D, and HDMI simultaneous inputs.

The PT-RZ12 series come with System Daylight View 3 - which improves color perception. This proprietary technology optimizes image quality to improve color perception of images projected onto external or internal walls and other surfaces or in environments with bright ambient light. With a brightness of 12,000 lumen, the PT-RZ12K Series delivers clear and comfortable viewing even with the lights on. And with generous connectivity options you'll be able to connect to any source device to the PT-RZ12K Series via its array of terminals including 3G-SDI, DIGITAL LINK, DVI-D, and HDMI.

NOTE: Some gear shown above are NOT INCLUDED and sold separately. Lens shown not included. For more information on this and other products, please contact your Sales Pro.

Includes

  • Power cord (×1) (x2 for PT-RZ12KE)
  • Wireless/wired remote control unit (× 1)
  • Batteries for remote control (AA/R6 type × 2)
  • Software
  • Lens drop-prevention screw (× 1)
  • CD-ROM (Logo Transfer Software, Multi Monitoring & Control Software)(× 1)

Features

  • Compact body outputs 12,000 lumens
  • Up to 20,000 hours maintenance-free at full power
  • Fully featured for single- or multi-mapping installations
  • 20,000:1 Geometric Adjustment
  • Selectable Operational Modes Maintain Image Quality Longer
  • Waveform Monitor Function
  • Active 3D Projection Capability
  • Backup Input Setting Assures Reliability and Optimizes Performance
  • Art-Net DMX Compatible

Specifications

  • Main unit:
    • Power supply: AC 100–240 V 50/60 Hz
  • Power consumption:
    • 1,200 W (1,280 VA) (0.3 W with STANDBY MODE set to ECO.*1 4W with STANDBY MODE set to NORMAL.)
  • NOTES
    • *Operating Temperature: 25 °C (77 °F), Altitude: 700m (22 ft 12 in), ICE627087: 2008 Broadcast contents.
    • *1 When the standby mode is set to eco, network functions such as power on over the LAN network will not operate, and the serial output terminal cannot be used. Also, only certain commands can be received for external control using the serial terminal.
    • Average power consumption:
      • NORMAL: 800W
      • ECO: 680W LONG
      • LIFE1: 620W
      • LONG LIFE 2: 590W
      • LONG LIFE 3: 550W
    • Picture mode: Dynamic, Dynamic Contrast3
    • BTU Value: Max 4,096 BTU
    • DLP™ chip:
      • Panel size: 24.4 mm (0.96 inches) diagonal (16:10 aspect ratio)
      • Display method: DLP™ chip × 3 (R, G, B), DLP™ projection system
      • Pixels: 2,304,000 (1,920 × 1,200) × 3, total of 6,912,000 pixels
    • Lens: Optional powered zoom/focus lenses
    • Light source:
    • Laser Diode (Laser class: Class 1)
    • Luminance life for set: 20,000 hours at half luminance (normal)/24,000 hours at half luminance (Eco)
    • *Temperature: 35°C (95°F), Altitude 700m (22ft 12in), Dust: 0.15mg/m3
  • NOTE *Operating Temperature: 25 °C (77 °F), Altitude: 700m (22 ft 12 in), ICE627087: 2008 Broadcast contents.
      • 43,800 hours at constant luminance (Longlife1)
      • 61,320 hours at constant luminance (Longlife2)
      • 87,600 hours at constant luminance (Longlife3)
    • Screen size:
      • 1.78–25.4 m (70–1,000 inches) (16:10 aspect ratio)
      • 1.78–15.24 m (70–600 inches) with the ET-D75LE8 (16:10 aspect ratio)
      • 3.05–15.24 m (120–600 inches) with the ET-D75LE90 (16:10 aspect ratio)
    • Brightness*2: 12,000 lumens
    • Center-to-corner uniformity*2: 90%
    • Contrast*2: 20,000:1 (full on/full off, in Dynamic Contrast 3 mode)
  • NOTE *2 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
    • Resolution: 1,920 × 1,200 pixels (Input signals that exceed this resolution will be converted to 1,920 × 1,200 pixels.)
    • Power cord length: 3.0 m (9 10 in)
    • Cabinet materials: Molded plastic
    • Dimensions (W × H × D):
    • 22-3/4 × 12-23/32*4 × 29-1/8 inches (without lens)
    • 578 × 323.5*4 × 740 mm
  • NOTE *4 With legs at shortest position.
    • Weight*5: 44 kg (97.0 lbs) (without lens)
  • NOTE *5 Average value (excluding the optional lens). May differ depending on mondels.
    • Operation noise*2: 43 dB
  • NOTE *2 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.

Notes

NOTE: * At this time the brightness will have decreased to approximately half of its original level (Dynamic Contrast Mode: 3, Image Mode: Dynamic). Usage environment affects light source lifespan. Panasonic recommends cleaning or replacing at point of purchase after approximately 20,000 hours. Light source lifetime may be reduced depending on environmental conditions. Replacement of parts other than the light source may be required in a shorter period.

NOTE: *6 Average value that may differ depending on the actual unit and enviornment.

NOTE: *6 Average value that may differ depending on the actual unit and enviornment.

Some gear shown above are NOT INCLUDED and sold separately. This model comes with no lens. For more information on this and other products, please contact your Sales Pro.

NOTES:

Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice. For additional info and specifications, please consult the documentation tab above.

*1 When the standby mode is set to eco, network functions such as power on over the LAN network will not operate, and the serial output terminal cannot be used. Also, only certain commands can be received for external control using the serial terminal.

*2 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.

*3 Up to a total of ±55° during simultaneous horizontal and vertical correction.

*4 With legs at shortest position.

*5 Average value (excluding the optional lens). May differ depending on mondels.

*6 Operation range differs depending on environments.

NOTE: *6 Average value that may differ depending on the actual unit and enviornment.
