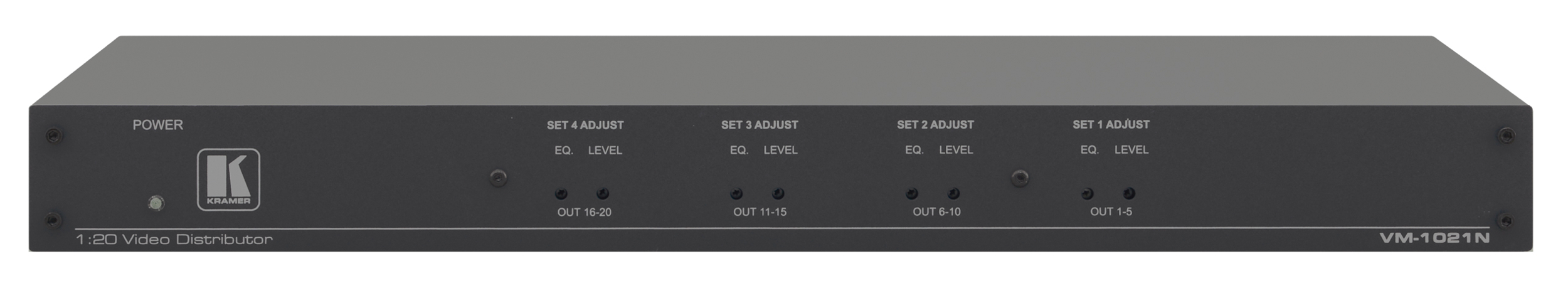

Kramer VM-1021N
1:20 Composite/SDI Video Distribution Amplifier

OUR PART #:  VM-1021N

The Kramer VM-1021N high-performance distribution amplifier is designed for composite or SD-SDI video signals.
Learn More
Our Price: $828.00
List Price: $1,035.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VM-1021N
Qty:
In Stock

Similar Products

The Kramer VM-1021N high-performance distribution amplifier is designed for composite or SD-SDI video signals. It provides controls to compensate for signal losses inherent in long cable runs. This distribution amplifier is great for applications such as broadcast, production, and editing facilities, retail stores and other point-of-sale systems, or any professional system requiring high quality signal distribution.

Kramer VM-1021N Features:

  • High bandwidth - 350 MHz (-3 dB)
  • Grouped Level (Gain) and EQ (Peaking) Controls
  • Looping input
  • DC coupling
  • Standard 19" 1RU size, rack ears included

Kramer VM-1021N Specifications:

  • Input: One (1) composite video/single component with loop, 1Vpp/75 Ohm on a BNC connector with termination switch
  • Outputs: 20 composite/component video, 1Vpp/75 Ohm on BNC conectors
  • Video Bandwidth (-3 dB): 350 MHz
  • Diff. Gain: 0.1%
  • Diff. Phase: 0.07 deg.
  • K-Factor: <0.05%
  • Video S/N Ratio: 74 dB
  • Control:
    • Level: -1.1 dB to +2.7 dB
    • EQ: 0 to 2.9 dB @ 4.4 MHz
  • Non-Linearity: 0.1%
  • Coupling: DC
  • Power Consumption: 230V AC, 50/60Hz (115V USA), 6.7VA
  • Operating Temperature: 32°F to 104°F
  • Storage Temperature: -40°F to 158°F
  • Humidity: 10% to 90%, RHL non-condensing
  • Included Accessories: Power cord
