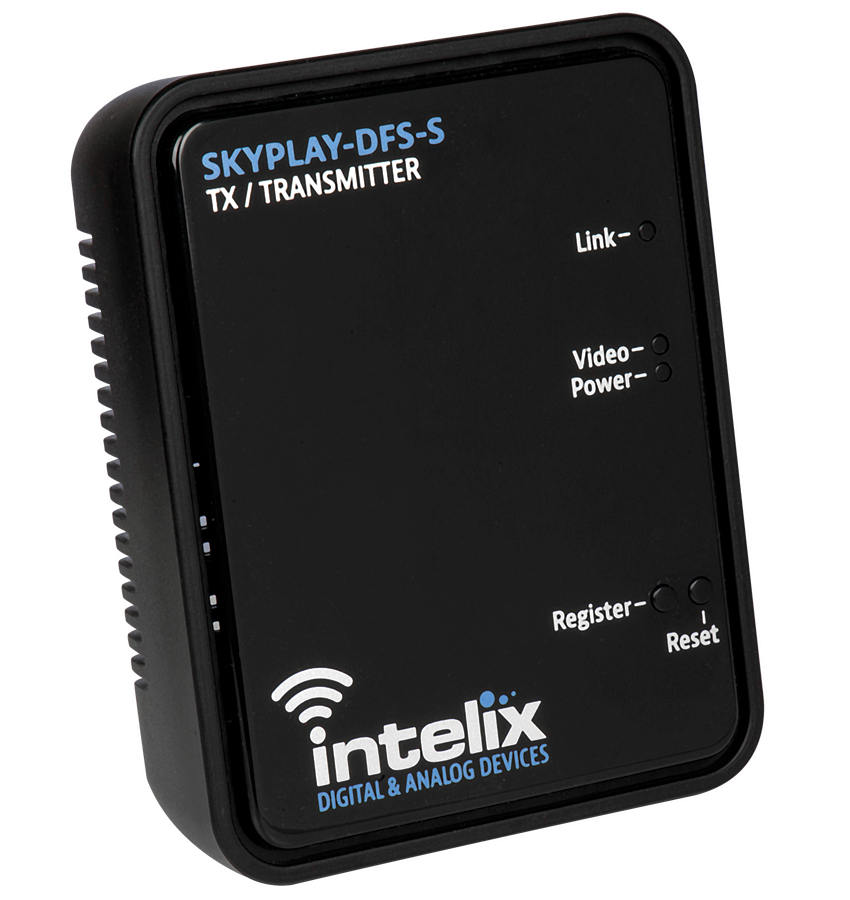

Product Overview
The SKYPLAY-DFS-S transmitter from Intelix distributes HDMI high-definition audio and video up to 30 meters (100 feet) in both point-to-point, point-to-many, and many-to-point configurations. Each transmitter is compatible with up to 4 receivers and each receiver can be paired to switch up to 4 transmitters.
The SKYPLAY-DFS-S can transmit 1080p video with stereo or multichannel audio. The SKYPLAY-DFS-R can transmit IR signals from the remote location to control the source device. The SKYPLAY-DFS transmitter and receiver must be paired together to pass video.
Applications:
- Ideal for residential,commercial, corporate A/V
- Send HDMI signal from a source to a destination device
- Wireless HDMI switcher - up to 4 transmitters
Intelix SKYPLAY-DFS-S Includes:
- Installation Guide
- IR remote
- Power supply with international adapters
- HDMI cable
Intelix SKYPLAY-DFS-S Features:
- Wirelessly distribute HDMI up to 100 feet; IR control of source
- Signals can go through standard sheet rock walls
- Up to 4 receivers per transmitter
- Less than 1 frame latency (17 milliseconds)
- HDCP 2.0 compliant, dynamic EDID passthrough, multichannel audio support
- DFS (Dynamic Frequency Selection) for improved density and reliability
Intelix SKYPLAY-DFS-S Specifications:
- I/O Connections:
- HDMI Input: One (1) HDMI Type A Receptacle
- IR Output: One (1) 2.5mm (3/16”) TS Male Connector
- 5V DC Power: One (1) 5.5mm Outside Diameter, 2.1mm Inside Diameter Barrel
- Supported Video, Audio, and Control:
- Video Resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p and VESA up to 1920X1080
- Color Depth: 30-bit
- Video Compliance: HDMI and HDCP
- Input Video Signal: 0.5 – 1.5 volts p-p
- Input DDC Signal: 5 volts p-p
- Embedded Audio: PCM 2.0, DTS (5.1) and Dolby Digital (5.1)
- IR Frequency: 38KHz
- Signal Characteristics:
- Wireless Transmission Technology: Amimon Pro
- Signal Bandwidth: 40MHz
- Maximum Transmission Distance: 100 ft (30.5 m)
- Trans mission Rate: 6.75 Gbps
- Operating Frequency (Non-DFS): 5.19-5.23 GHz and 5.755-5.795 GHz
- Operating Frequency (DFS): 5.27-5.59 GHz and 5.67 GHz
- System Latency:
- Chassis and Environmental:
- Material: Black Plastic
- Dimensions (HxWxD):
- With rubber feet: 1.14" x 3.19" x 4.02" (29 mm x 81 mm x 102 mm)
- Without rubber feet: 1.10" x 3.19" x 4.02" (28 mm x 81 mm x 102 mm)
- Shipping Weight: 2 lbs. (0.91 kg)
- Operating Temperature: +14° to +104° F (-10° to +40° C)
- Operating Humidity: 15% to 85%, Non-condensing
- Storage Temperature: -4° to +176° F (-20° to +80° C)
- Storage Humidity: 15% to 85%, Non-condensing
- Power, ESD, and Regulatory:
- Power Supply: 5VDC 2.6A
- Power Consumption: 9 watts
- ESD Protection: 15kV
- Regulatory: FCC, CE, RoHS
- Other:
- Warranty: 2 years
- Diagnostic Indicators: Power, Link, and Video
Note
The SKYPLAY-DFS radios are configured for US and Canada operation. For Europe and Australia operation, please select the SKYPLAY-DFS-S-EU.
