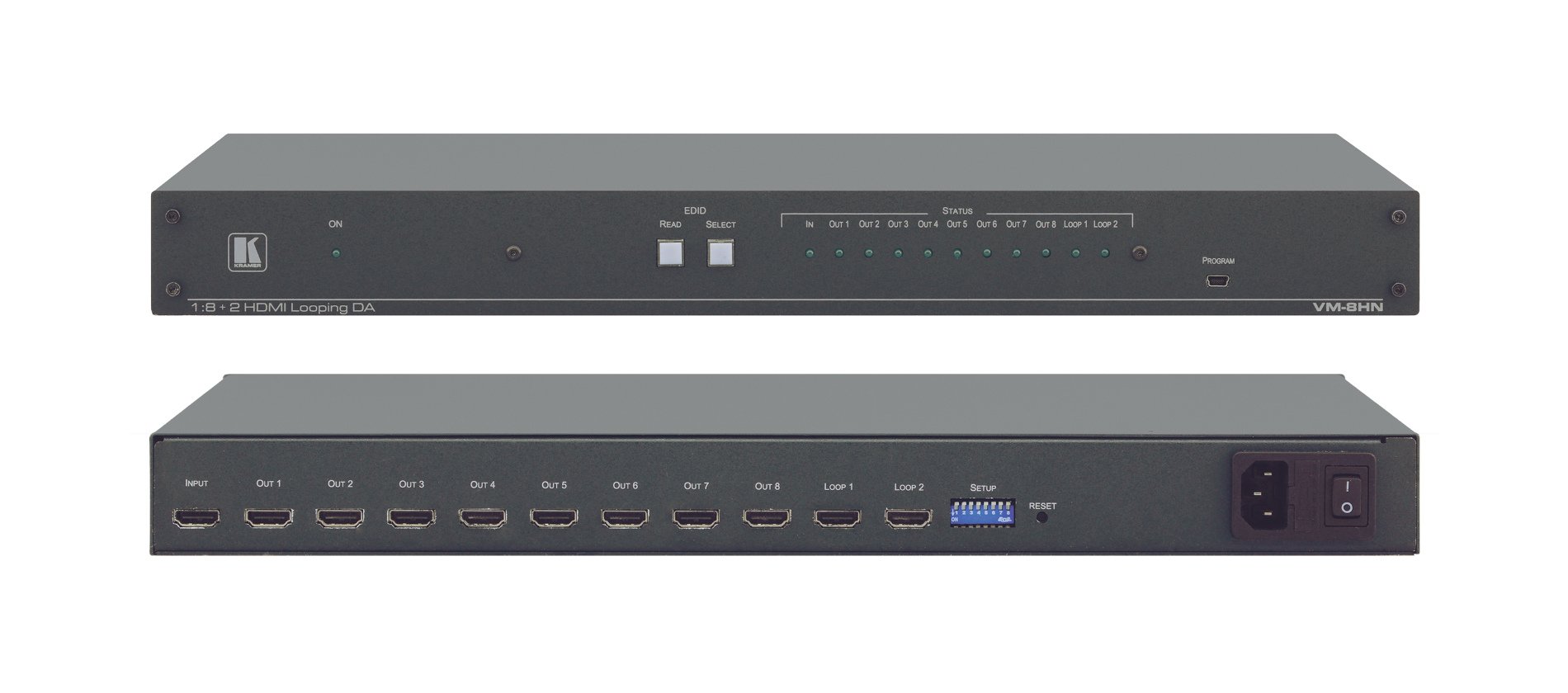

Kramer VM-8HN
1:8+2 HDMI 4K Distribution Amplifier


The Kramer VM-8HN is a looping 4K ultra-HD distribution amplifier for HDMI signals.
Learn More
Our Price: $840.00
List Price: $1,050.00
You save 20%!
Write the first review.
Kramer VM-8HN
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Kramer VM-8HN is a looping 4K ultra-HD distribution amplifier for HDMI signals. It reclocks and equalizes the signal and distributes it to eight identical outputs and two loops. Primary applications include rental and staging, retail stores, and digital signage.

Kramer VM-8HN Features:

  • Max. Data Rate - 8.91Gbps (2.97Gbps per datachannel).
  • HDTV Compatible.
  • HDCP Compliant.
  • HDMI Support - Deep Color, x.v.Color™, HDMIUncompressed Audio Channels, Dolby TrueHD, DTS-HD.
  • 3D Pass-Through.
  • Kramer Equalization & re-Klocking™ Technology -Rebuilds the digital signal to travel longer distances.
  • Default EDID - For fast and efficient connection ofthe unit.
  • Video Wall Support - With selectable output delay.
  • Automatic 5V Turn Off - For remotely powering offattached devices.
  • Active Output LED Indicators.
  • 2 Looping Outputs - Allow monitoring and cascading toadditional DAs.
  • Worldwide Power Supply - 100-240V AC.
  • Size - Standard 19" (1U). Rack "ears" included.

Kramer VM-8HN Specifications:

  • Input: 1 HDMI connector.
  • Outputs: 10 HDMI connectors (8 output, 2 loop).
  • Max. Data Rate: 8.91Gbps (2.97Gbps per data channel).
  • Compliance with HDMI Standard: Supports HDMI andHDCP.
  • Controls: EDID SELECT and READ buttons for selectingand storing EDID information.
  • Indicator LEDs: OUTPUTS 1 to 8, LOOP 1 and 2 andACTIVE input LED.
  • Operating Temperature:  0° to +40°C (32° to104°F).
  • Storage Temperature: -40° to +70°C (-40° to 158°F).
  • Humidity: 10% to 90%, RHL non-condensing.
  • Power Consumption: 100-240V AC, 50/60Hz 28VA.
  • Dimensions: 19" x 7" x 1U W, D, H, rack mountable.
  • Weight: 3.5kg (7.7 lbs.) approx.
  • Included Accessories: Power cord.
