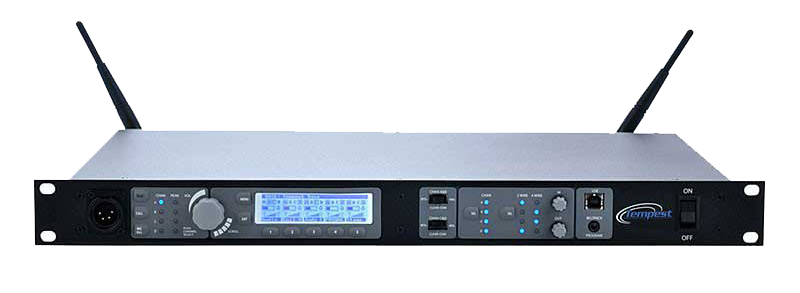

Pliant Technologies TMP-B409
4-Channel, 900MHz Tempest BaseStation


Call for price! Not available online.
List Price: $6,895.00

Similar Products

The Tempest900 BaseStation is a 4-channel frequency-hopping spread spectrum (FHSS) digital wireless intercom system operating in the 902 to 928 MHz band ensuring comprehensive coverage and wide reach while offering high resistance to multi-path interference. The front panel LCD display provides real time status including battery monitoring of active BeltStations and easy access to the hardwire intercom settings and levels. Each BaseStation is capable of Call and Remote Mic Kill.

CoachComm TMP-B409 Wireless System Features:

  • Up to 5 BeltStations can access all 4 intercomchannels and “Dual-Listen” to 2 of the 4 intercom channels on a singleBaseStation.
  • Compatible with all major 2-wire and Matrix intercomsystems
  • Capable of functioning in very high ambient noiseenvironments with extremely high audio dynamics range (>94dB)
  • Unique to Tempest, patented RF architecture allowsthe system to co-exist with Wi-Fi networks.
  • Utilizes Frequency Hopping Spread Spectrum (FHSS)technology to maintain the high possible voice audio quality
  • Enhanced with 2xTX technology that greatly increasesaudio intelligibility by significantly reducing the Effective Packet ErrorRate
  • Select On Command Roaming to allow users to move fromone coverage to another
  • Other base station features: Stage Announce, Unique GPIO Contact Closures, Remote Talk Kill and Auxiliary Input/Output

CoachComm TMP-B409 System Specifications:

  • RF Frequency: 902 to 928 MHz
  • RF Scheme: FHSS with TDMA
  • Effective Radiated Power: 100mW using 2dBi antenna
  • Receiver Sensitivity: -93 dBm for 10 -5 BER
  • Radio Certification: FCC Part 15.247 and ETS300.328 rules, license-free
  • Transmission Range:
    • Up to 1,000 feet (305m)
    • 500 ft to 900 ft (150-275m) typical
  • Audio Dynamic Range: >94dB
  • Audio Frequency Response: 300Hz – 3.8kHz withproprietary audio voice shaping
  • Base Station Specifications:
    • Intercom Audio Channels: 4
    • Full Duplex BeltStations per BaseStation: 5 (in Normal Mode)
    • Half-Duplex, Shared BeltStations per base station: Unlimited
    • Number of Antenna Ports per BaseStation: 2
    • Antenna Connector Type: RP-TNC
    • Number of Synchronized BaseStations: 10
    • BaseStation/BeltStation pairing: Mini-jack/cable
    • Programming Port: USB
    • Stage Announce and GPO Closures: 6 relays via DB15
    • 2-Wire Intercom Interface: 4 channels via XLR-3F with XLR-3M loop
    • 2-Wire Compatibility: Clear-Com, RTS, and balanced compatible
    • 4-Wire/Matrix Connection: 4 ports via RJ-45
    • Aux Input: ¼“ 3-conductor jack accepts -4 to +8 dB, balanced, transformer isolated
    • Aux Output: ¼“ 3-conductor jack nominal -4 to +8 dB, balanced, transformer isolated
    • Stage Announce Output: XLR-3M, nominal -4 to +8 dB, balanced, transformer isolated
    • Front-Panel Headset: 4-pin male connector
    • Microphone Type: Dynamic or Electret, Auto-selected
    • Dimensions (W x H x D): 19" x 1.76" x 12" (483 mm x 44 mm x 190 mm); 1RU unit
    • Weight: 10.5 oz (4.75 kg)
    • Environment:  -4° to 122° F (-20° to 50° C)
