Yamaha PSR-S770
61 Keyboard Arranger Workstation


Yamaha's PSR-S770 Arranger Workstation Keyboard is equipped with a host of powerful performance features, flexible audio playback functions and a Mic/Guitar input...
Learn More

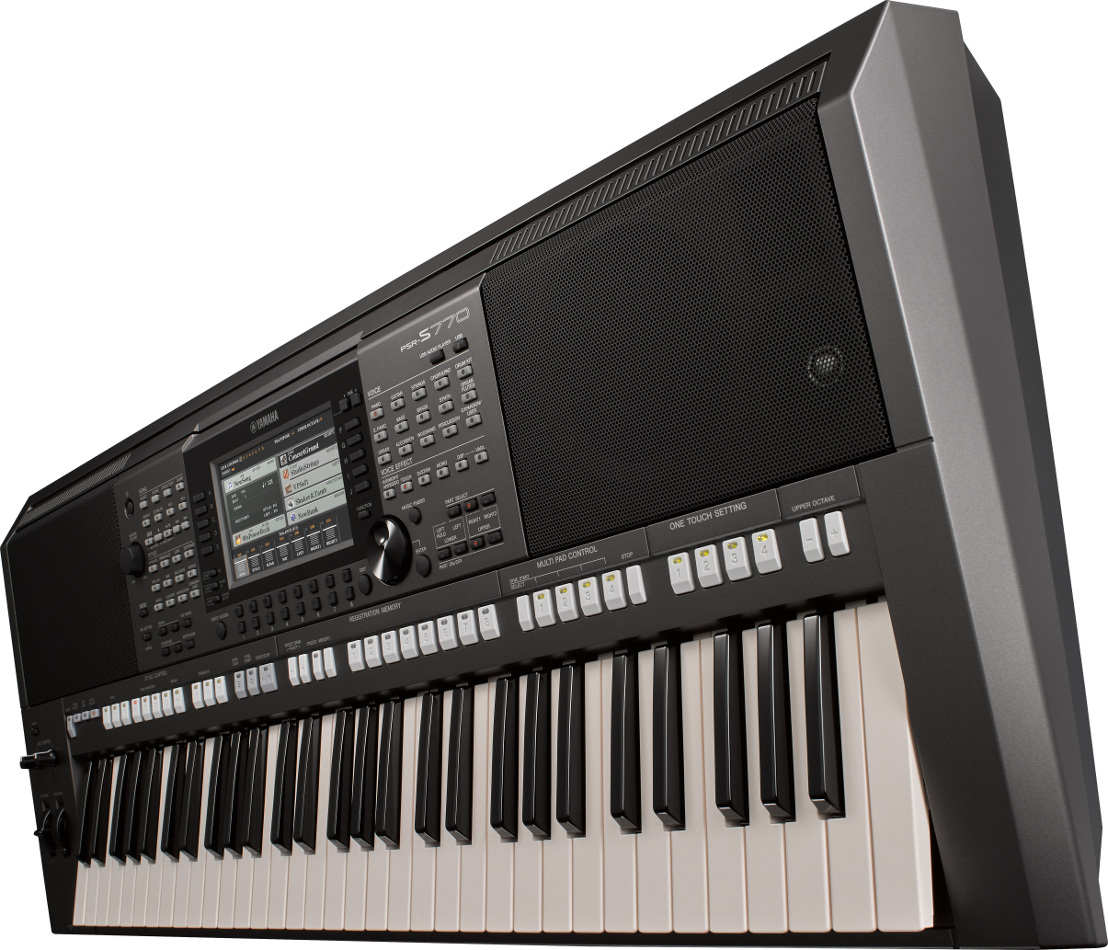

Yamaha PSR-S770 - Top Angle View
Yamaha PSR-S770 - Rear Panel View
Yamaha PSR-S770 - Rear Angle View

Click a thumbnail to see more images. (6 total)

Our Price: $1,299.99
List Price: $1,699.00
You save 23%!
Write the first review.
Yamaha PSR-S770
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

Yamaha's PSR-S770 Arranger Workstation Keyboard is equipped with a host of powerful performance features, flexible audio playback functions and a Mic/Guitar input, making it ideal for live use on stage, in the studio or at home.

Enjoy realistic Super Articulation Voices, Organ flutes and many other sounds from the legendary Tyros series. The PSR-S770's superb sonic quality, meticulously sampled voices, and a comprehensive suite of effects will take your performances to a new level of authenticity that is sure to satisfy even the most demanding audience.

Powerful features for live performance

The PSR-S770 features two assignable live controllers, a modulation wheel and two assignable foot pedal inputs, ensuring that you have total control over voices, styles, effects and other functions during live performance. Also, DJ Styles are a new live performance concept, featuring a collection of chord progressions that eliminate the need for continuous chord changes with the left hand. Now you've got both hands free to play melody lines, use the Live Controllers, or even trigger additional external audio with the Multi Pads to add a unique flair to your performance.

For simple intuitive control of the powerful features and capabilities of this advanced keyboard, the PSR-S770 comes equipped with a large color LCD that allows you to monitor the status of your instrument at a glance, and gives you easy access to valuable performance functions.

More memory, more sounds

Voice & Style Expansion Packs enable you to customize the PSR-S770 with a wide range of additional content from all over the world. When loaded into the keyboard, you can instantly access authentic new sounds, rhythms and backing in the musical style of your choice. For even more versatility, use Yamaha Expansion Manager version 2.3 (or later) to link the PSR-S770 to your computer.* Yamaha Expansion Manager allows you to create individual expansion data sets containing content from various packs and utilize the 160MB memory capacity on the instrument. You can even create your own voices based on your samples.

Great for singers & guitarists

The PSR-S770 comes equipped with a Mic/Guitar input that allows you to add vocals or guitar to your live performance with ease. Simply plug in a microphone and you can effortlessly assign any of the PSR's versatile effects to the vocals. Or, connect a guitar and adjust the parameters to suit your preference and emulate the sound of your favorite artists or create a sound that's all your own.

USB audio playback with flexible functions

Whether you're enhancing a live performance with backing tracks from your music library or just livening up a party with some Karaoke, the time stretch, pitch shift, and vocal cancel functions of the PSR-S770's USB audio player will add depth and versatility to any musical event. Identify the chord sequence from an audio track instantly with the Yamaha Chord Tracker app. The Yamaha Chord Tracker app for iPhone and iPad helps practicing and performance by extracting the chord sequence of an audio song stored on your device.

Yamaha PSR-S770 Includes:

  • Owner's Manual
  • Online Member Product Registration
  • Music Rest
  • AC Adaptor (may not be included, depending on your area)

Yamaha PSR-S770 Specifications:

    • Dimensions (WxHxD): 1002 x 148 x 437 mm
    • Weight: 11.1 kg
    • Keyboard:
      • Number of Keys: 61
      • Type: Organ, Initial Touch
      • Touch Response: Hard1, Hard2, Medium, Soft1, Soft2
    • Other Controllers:
      • Pitch Bend: Yes
      • Modulation: Yes
      • Control Knobs: 2 (assignable)
    • Display:
      • Type: TFT Color Wide VGA LCD
      • Size: 7 inch
      • Color: Color
      • Language: English
    • Tone Generation: AWM Stereo Sampling
    • Polyphony (Max Number): 128
    • Preset: 830 Voices + 36 drum/SFX Kits + 480 XG Voices
    • Compatibility:
      • XG: Yes
      • GS: Yes (for Song playback)
      • GM: Yes
      • GM2: Yes
    • Expandability:
      • Expansion Voice: Yes (approx. 160MB max.)
      • Editing: Voice Set
      • Part: Right 1, Right 2, Left
    • Reverb: 52 Presets + 3 User
    • Chorus: 106 Presets + 3 User
    • DSP: 295 Presets + 10 User
    • Master Compressor: 5 Presets + 5 User
    • Master EQ: 5 Presets + 2 User
    • Part EQ: 27 parts
    • Others: Mic/Guitar effects (Noise Gate x1, Compresssor x1, 3Band EQ x 1)
    • Arpeggio: Yes
    • Preset:
      • Number of Preset Styles: 360
      • Featured Styles: 322 Pro Styles, 27 Session Styles, 10 DJ Styles, 1 Free Play
      • Fingering: Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Finger, Full Keyboard AI Full Keyboard
      • Style Control: INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3
    • Other Features:
      • Music Finder: 1,200 Records
      • One Touch Setting (OTS): 4 for each Style
      • Expandability: Expansion style (Yes)
      • Compatibility: Style File Format, Style File Format GE
    • Number of Preset Songs: 5 Sample Songs
    • Recording:
      • Number of Songs: Unlimited (depends on the drive capacity)
      • Number of Tracks: 16
      • Data Capacity: approx. 300 KB/Song
      • Recording Function: Quick Recording, Multi Recording, Step Recording
      • Compatible Data Format:
        • Playback: SMF (Format 0 & 1), XF
        • Recording: SMF (Format 0)
    • Registration:
      • Number of Buttons: 8
      • Control: Registration Sequence, Freeze
    • Lesson/Guide:
      • Lesson/Guide: Follow Lights, Any Key, Karao-Key, Your Tempo
      • Performance Assistant Technology (PAT): Yes
      • Demo/Help Demonstration: Yes
    • Overall Controls:
      • Metronome: Yes
      • Tempo Range: 5-500, Tap Tempo
      • Transpose: -12 - 0 - +12
      • Tuning: 414.8-440-466.8 Hz
      • Octave Button: Yes
      • Scale Type: 9 types
    • Miscellaneous:
      • Direct Access: Yes
      • Text Display Function: Yes
      • Wallpaper Customization: Yes
    • Voices:
      • Harmony/Echo: Yes (with Arpeggio)
      • Panel Sustain: Yes
      • Mono/Poly: Yes
      • Voice Information: Yes
    • Styles:
      • Style Creator: Yes
      • Style Recommender: Yes
      • OTS Information: Yes
    • Songs:
      • Song Creator: Yes
      • Score Display Function: Yes
      • Lyrics Display Function: Yes
      • Multi Pad Creator: Yes
    • Audio Recorder/Player:
      • Recording Time (max.): 80 minutes/song
      • Recording: .wav (WAV format: 44.1 kHz sample rate, 16-bit resolution, stereo)
    • Playback:
      • .wav (WAV format: 44.1 kHz sample rate, 16-bit resolution, stereo)
      • .mp3 (MPEG-1 Audio Layer-3: 44.1/48.0 kHz sample rate, 64-320 kbps and variable bit rate, mono/stereo)
      • Time Stretch: Yes
      • Pitch Shift: Yes
      • Vocal Cancel: Yes
    • Storage:
      • Internal Memory: approx. 13 MB
      • External Drives: USB Flash Memory (via USB to DEVICE)
    • Connectivity:
      • Headphones: Yes
      • Foot Pedal: 1 (SUSTAIN), 2 (ARTICULATION), Function Assignable
      • Microphone: Microphone/Guitar x 1
      • MIDI: IN, OUT
      • Aux In: Stereo mini jack
      • Line Out: L/L+R, R
      • USB to Device: Yes
      • USB to Host: Yes
    • Amplifiers: 15W x 2
    • Speakers: 13cm x 2 + 5cm  x 2
    • Power Supply: PA-300C or an equivalent recommended by Yamaha
    • Power Consumption: 19 W
    • Auto Power Off Function: Yes
    • Number of Multi Pad Banks: 188 banks x 4 Pads
    • Audio Link: Yes
