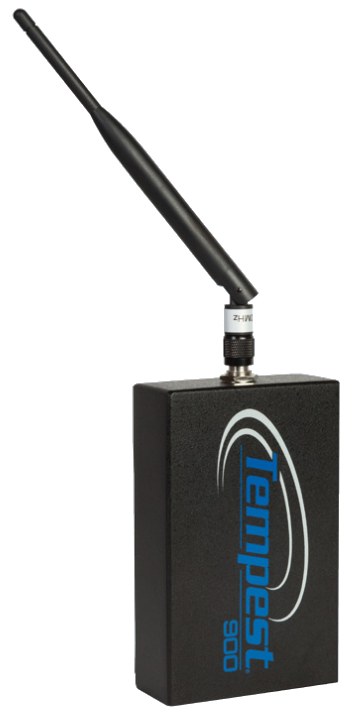

Tempest TMP-RT09
Tempest 900MHz Remote Transceiver

OUR PART #  TMP-RT09

Our Price: $2,065.50
List Price: $2,295.00
You save 10%! (Low Price Guarantee)
In Stock

The Tempest900 Remote Transceiver (RT) allows the Tempest900 BaseStation antenna to be located up to 1500 ft. (450 m) from the BaseStation without any loss of RF signal. The RT is connected to the BaseStation via a standard CAT 5/6 cable using RJ-45 connectors. Power is provided over the CAT 5/6 cable so that no local power is required for the RT to operate normally. The RT is constructed of aluminum alloy. It comes with a universal mounting plate that can be used to mount the transceiver to poles, walls, or other desired areas.

One Remote TMP-RT09 Transceiver can be connected to a single Tempest BaseStation (2- or 4-channel) to provide RF coverage where it is needed. A direct connection is required, and onceconnected, the Base Radio is disabled. (The transceiver will not operate properly if connected to a Local Area Network (LAN) or routed through a network device such as a router or switch.) The transceiver has one RP-TNC antenna connector on top of the enclosure that can attach the standard 2 dBi omni-directional antenna, or employ an optional directional antenna via low loss coaxial cable.

The Remote Transceiver is equipped with five LED indicators so that the user can ensure proper operation of the transceiver:

  • Power LED illuminates whenever the BaseStation isproviding adequate power to the transceiver over the CAT 5/6 cable.
  • Sync and Config LEDs indicate that the transceiver hasbeen properly initialized and is communicating with the BaseStation.
  • Receive (Rx) and Transmit (Tx) LEDs indicate proper data transfer to andfrom the BaseStation and wireless BeltStation.

The Remote Transceiver is weather resistant and is intended for use outdoors. It is recommended, however, that in extreme weather conditions appropriate measures are taken to ensure that no water enters into the enclosure.

CoachComm TMP-RT09 Features:

  • Allows remote location of antenna from the base withno RF signal loss
  • Cable runs of up to 1,500 ft. (450 m)
  • Operates on standard CAT 5/6 cable
  • Power is provided over the cable from BaseStation
  • Durable aluminum alloy enclosure
  • Weather-resistant for outdoor use
  • Rx, Tx, Sync, Config, and Power LED indicators
  • RP-TNC antenna connectors
  • Includes one omni-directional 2 dBi antenna
  • Can remote antenna from the Transceiver with low-loss coaxial cable
  • Only available in US and Canada

CoachComm TMP-RT09 Specifications:

  • System Specifications:
    • RF Frequency: 902 to 928 MHz
    • RF Scheme: FHSS with TDMA
    • Effective Radiated Power: 250mW using 2dBi antenna
    • Receiver Sensitivity: -100 dBm for 10-5 BER
    • Radio Certification: FCC Part 15, Canadian RSS-210,license free
    • Transmission Range:
      • 1,000 ft. (304.8 m) under ideal conditions
      • 500 ft. to 900 ft. (152.4 m to 274.3 m) typical
    • Audio Dynamic Range: >94 dB
    • Audio Frequency Response: 300Hz – 3.8kHz with proprietary audio voice shaping
    • System Latency: Less than 60 ms direct
  • Transceiver Specifications:
    • Maximum Cable Length, Base to Transceiver: 1,500 ft.(457.2 m), powered from the BaseStation
    • Connection to BaseStation: CAT-5 standard wiring
    • BaseStations Supported per Transceiver: 1
    • Number of Antenna Ports per Transceiver: 1
    • Antenna Connector Type: RP-TNC
    • Supplied Antenna: Whip antenna
    • Dimensions with Antennas (H x W x D): 12 in. × 3.7in. × 1.7 in. (304.8 mm × 94 mm × 43.2 mm)
    • Weight: 11 oz. (312 g)
    • Operating Environment:
      • -20° to 50° C (-4° to 122° F)
      • 10% to 90% Humidity

Tempest TMP-RT09
Tempest 900MHz Remote Transceiver

OUR PART #  TMP-RT09

Product Information:

The Tempest900 Remote Transceiver (RT) allows the Tempest900 BaseStation antenna to be located up to 1500 ft. (450 m) from the BaseStation without any loss of RF signal. The RT is connected to the BaseStation via a standard CAT 5/6 cable using RJ-45 connectors. Power is provided over the CAT 5/6 cable so that no local power is required for the RT to operate normally. The RT is constructed of aluminum alloy. It comes with a universal mounting plate that can be used to mount the transceiver to poles, walls, or other desired areas.

One Remote TMP-RT09 Transceiver can be connected to a single Tempest BaseStation (2- or 4-channel) to provide RF coverage where it is needed. A direct connection is required, and onceconnected, the Base Radio is disabled. (The transceiver will not operate properly if connected to a Local Area Network (LAN) or routed through a network device such as a router or switch.) The transceiver has one RP-TNC antenna connector on top of the enclosure that can attach the standard 2 dBi omni-directional antenna, or employ an optional directional antenna via low loss coaxial cable.

The Remote Transceiver is equipped with five LED indicators so that the user can ensure proper operation of the transceiver:

  • Power LED illuminates whenever the BaseStation isproviding adequate power to the transceiver over the CAT 5/6 cable.
  • Sync and Config LEDs indicate that the transceiver hasbeen properly initialized and is communicating with the BaseStation.
  • Receive (Rx) and Transmit (Tx) LEDs indicate proper data transfer to andfrom the BaseStation and wireless BeltStation.

The Remote Transceiver is weather resistant and is intended for use outdoors. It is recommended, however, that in extreme weather conditions appropriate measures are taken to ensure that no water enters into the enclosure.

CoachComm TMP-RT09 Features:

  • Allows remote location of antenna from the base withno RF signal loss
  • Cable runs of up to 1,500 ft. (450 m)
  • Operates on standard CAT 5/6 cable
  • Power is provided over the cable from BaseStation
  • Durable aluminum alloy enclosure
  • Weather-resistant for outdoor use
  • Rx, Tx, Sync, Config, and Power LED indicators
  • RP-TNC antenna connectors
  • Includes one omni-directional 2 dBi antenna
  • Can remote antenna from the Transceiver with low-loss coaxial cable
  • Only available in US and Canada

CoachComm TMP-RT09 Specifications:

  • System Specifications:
    • RF Frequency: 902 to 928 MHz
    • RF Scheme: FHSS with TDMA
    • Effective Radiated Power: 250mW using 2dBi antenna
    • Receiver Sensitivity: -100 dBm for 10-5 BER
    • Radio Certification: FCC Part 15, Canadian RSS-210,license free
    • Transmission Range:
      • 1,000 ft. (304.8 m) under ideal conditions
      • 500 ft. to 900 ft. (152.4 m to 274.3 m) typical
    • Audio Dynamic Range: >94 dB
    • Audio Frequency Response: 300Hz – 3.8kHz with proprietary audio voice shaping
    • System Latency: Less than 60 ms direct
  • Transceiver Specifications:
    • Maximum Cable Length, Base to Transceiver: 1,500 ft.(457.2 m), powered from the BaseStation
    • Connection to BaseStation: CAT-5 standard wiring
    • BaseStations Supported per Transceiver: 1
    • Number of Antenna Ports per Transceiver: 1
    • Antenna Connector Type: RP-TNC
    • Supplied Antenna: Whip antenna
    • Dimensions with Antennas (H x W x D): 12 in. × 3.7in. × 1.7 in. (304.8 mm × 94 mm × 43.2 mm)
    • Weight: 11 oz. (312 g)
    • Operating Environment:
      • -20° to 50° C (-4° to 122° F)
      • 10% to 90% Humidity
