Tempest TMP-R209
Tempest 900MHz 2-Channel Wireless BeltStation


Our Price: $1,660.50
List Price: $1,845.00
You save 10%! (Low Price Guarantee)
In Stock

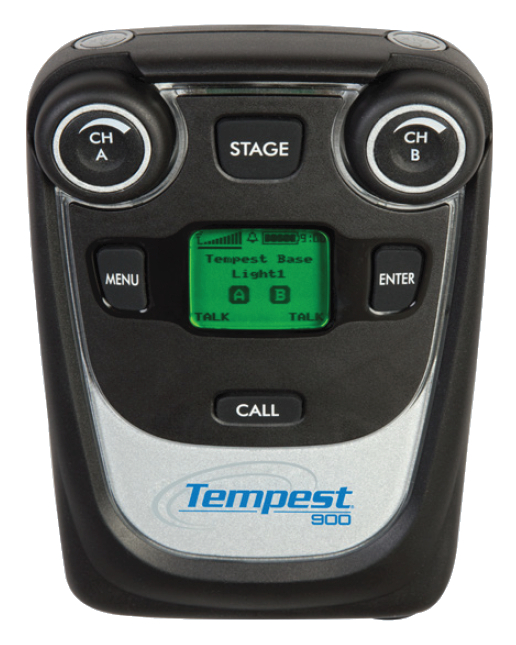

The Tempest900 2-channel wireless BeltStation operates in conjunction with the Tempest900 BaseStations. Each Talk button has individual LED indicators. The Talk button can be latching or momentary. The Call button sends a 2-wire compatible call signal to any wireless BeltStation and any hardwired intercom device on the intercom channel. BeltStations are provided with a rechargeable Liithium-Polymer battery capable of nine hours of operation or can be powered by three Standard AA Alkaline batteries. Each BeltStation has its own back-lit display and menu functions, which allow settings to be changed at the BeltStation locally.

Each TMP-R209 BeltStation user may simultaneously Talk/Listen on A and B or toggle between A and B in “Single Listen” mode. Volume is set by rotating the CH A or CH B rotary control. There are two Talk buttons on each BeltStation, one for each channel. The Talk button enables the microphone signal for the assigned intercom.

The BeltStation comes with an advanced Planar Inverted-F Antenna (PIFA), providing increased range. The BeltStations are fully compatible with all versions of Tempest900 BaseStations and BeltStations.

Each of up to five full-duplex wireless BeltStations establishes a unique audio path (point-to-point) with the associated Tempest900 BaseStation, delivering an individualized mix minus signal to other BeltStations in the system. Therefore, each BeltStation can monitor a unique mix of intercom channels and other audio sources.

CoachComm TMP-R209 Features:

  • 2-channel, full-duplex BeltStations
  • 900MHz, license-free operation
  • Increased range with PIFA Antenna
  • Dual Talk/Listen operation
  • iSelect™ On-Command Roaming
  • Hard-wired Remote Mic Kill and Call
  • Backlit LCD screen shows battery life, RF signal strength, and more
  • Stage Announce output with relay closure
  • 5 individually assignable relay closures at BaseStation
  • 2000 mAh Lithium-Polymer rechargeable battery (or 3 Alkaline AA batteries)
  • Weather-resistant enclosure
  • Only available in US and Canada

CoachComm TMP-R209 Specifications:

System Specifications

  • RF Frequency: 902 to 928 MHz
  • RF Scheme: FHSS with TDMA
  • Effective Radiated Power: 250mW using 2dBi antenna
  • Receiver Sensitivity: -100 dBm for 10-5 BER
  • Radio Certification: FCC Part 15, Canadian RSS-210, license-free
  • Transmission Range:
    • 1,000 ft. (304.8 m) under ideal conditions
    • 500 ft. to 900 ft. (152.4 m to 274.3 m) typical
  • Audio Dynamic Range: >94 dB
  • Audio Frequency Response: 300Hz – 3.8kHz with proprietary audio voice shaping
  • System Latency: Less than 60ms direct

BeltStation Specifications

  • Intercom Audio Channels: 2
  • Simultaneous Listen Paths: True DualListen
  • Headset Connector: 4-pin male XLR
  • Microphone Type: Dynamic or Electret, auto-selected
  • LCD Display: 102 × 80 pixels
  • Antenna: PIFA
  • USB BeltStation Power Supply:
    • Input: 100–240 V, 0.3 A, 50–60 Hz
    • Output: 5 V, 1.25 A
    • Battery Life: Rechargeable Up to 9 hours
    • Battery Charge Time: Lithium-Polymer Battery Under 3 hours
    • Optional Power: 3 Standard AA alkaline cells
    • Battery Life: Alkaline Batteries Approximately 4 Hours
  • Dimensions & Weight:
    • Dimensions (H x W x D): 6.1 in. × 4.0 in. × 1.75 in. (156 mm × 102 mm × 44.5 mm)
    • Weight (with Lithium-Polymer Battery): 14.3 oz. (1.17 kg)
  • Operating Environment:
    • -20° to 50° C (-4° to 122° F)
    • 10% to 90% Humidity
