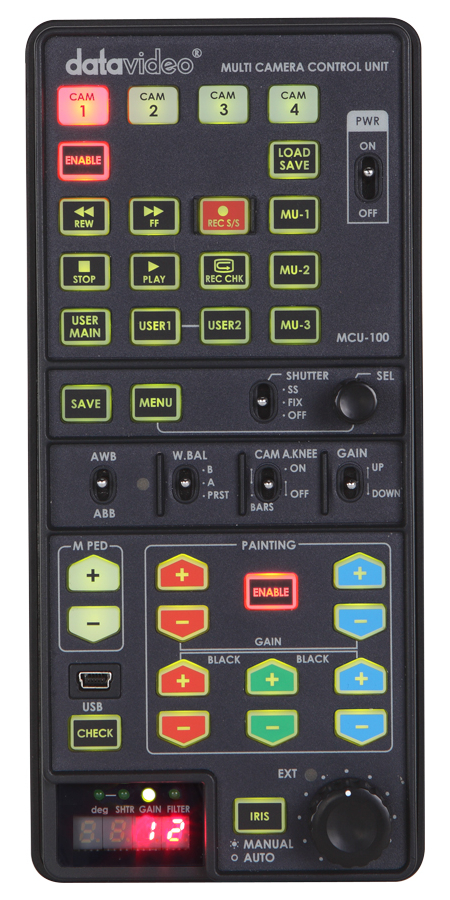

Datavideo Corporation MCU-100S
Multi Camera Controller for Sony Cameras

OUR PART #:  MCU-100S

The MCU-100S from Datavideo allows you to control up to 4 Panasonic or Sony video cameras remotely using the MCU-100 (Hand-Held) or MCU-200 (Rack-Mounted) Multi-Camera Controller.
Learn More
Our Price: $2,000.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Datavideo Corporation MCU-100S
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The MCU-100S from Datavideo allows you to control up to 4 Panasonic or Sony video cameras remotely using the MCU-100 (Hand-Held) or MCU-200 (Rack-Mounted) Multi-Camera Controller. With this version, the MCU-100S you can control up to 4 Sony video cameras using the Hand-Held (MCU-100) multi-camera controller from a distance of up to 984 feet (300 meters). The controller allows a distance achieved using the included AD-1 Adapters. The interface between the controller & AD-1 is a RS-422 differential line. You can also use CAT-5e/6 cable.

With the MCU-100S you can make all the camera adjustments yourself without having to leave your multi-view monitor - thanks to the Special Rotary Knob for Iris feature. On some other camera controllers, a single knob stores a position value. The problem is that it’s impossible to control individual iris settings between cameras. However, on the MCU-100, the iris knob is not a position knob, but instead it’s a rotary knob that increases or decreases the current setting. So for example, with the MCU-100, you can have camera1 selected, which is at iris position 1, then switch to camera2. Camera2 will be at whatever setting it is at currently, and the knob will be used to increase or decrease the setting. Then, you can switch to the next camera and do the same. In this way, you can tune each camera to have their own individual iris settings.

This model is compatible with the following cameras:

  • Sony EX350
  • Sony F55
  • Sony PMW 320
  • Sony PMW 400
  • Other Sony Models (TBD)

Datavideo MCU-100S Includes:

  • 1x MCU-100/200 Controller
  • 4x AD-1 Adapters
  • 1x Power Adapter (DC 12V 0.3A)
  • 1x Quick Start Guide

Datavideo MCU-100S Features:

  • Remote Control 4 Cameras: MCU-100/200 can control up to 4 cameras up to 1000 meters away using an ethernet cable.*
  • Save/Recall Memory: MCU-100/200 can store 3 setup configurations. It can also recall memories saved within each connected camera (typically user1 / user2).
  • Iris Control Knob: MCU-100/200's iris control knob allows independent iriscontrol between cameras.

NOTE: *RJ-45 cabling allows unit to be placed up to 984 feet / 300m (Sony) away from the cameras.

  • Additional features include:
    • Four RJ-45 connections allow remote setup of up to four Panasonic or Sony cameras.
    • Control of Record and Playback functions
    • Control of Camera User Memory functions
    • Control of OSD Menu Navigation
    • Control of Shutter speed and degree functions
    • Control of Iris adjustment
    • Control of AWB and ABB functions
    • Control of White Balance A, B, and Preset functions
    • Control of Camera Knee and Bar functions
    • Control of Camera Gain adjustment
    • RGB / R & B gain and Master Pedestal Controls

Datavideo MCU-100S Specifications:

  • Connection:
    • CAM/BS (From Panasonic Camera to AD-1 Adapter)
    • RJ45 (From AD-1 Adapter to MCU-100/200)*
    • CVBS (From AD-1 Adapter to Preview Screen)

NOTE: *Although MCU-100 uses an RJ45 connector, it uses the RS-422 protocol to control the camera. Therefore, wired or wireless Ethernet cannot be used on the MCU-100.

  • Dimensions: 3.75in. x 8.19in. x 2.13in. (MCU-100)
  • Weight: 0.6 lbs (MCU-100)

Sony Camera Control Adapter for MCU-100S/200
Datavideo Corporation AD-1S Sony Camera Control Adapter for MCU-100S/200
The Datavideo AD-1S is a Sony camera control adapter for the MCU-200S control unit.
