Azden PRO-XD
2.4 GHz Digital Wireless Microphone System


The Azden® i-Coustics™ PRO-XD is an easy-to-use and affordable digital wireless lavalier microphone system for camera mounting and mobile video applications.
Learn More
Our Price: $199.00
List Price: $250.00
You save 20%!

4.0 / 5

★★★★★ 1 Review. Write Yours
Azden PRO-XD
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Azden® i-Coustics™ PRO-XD is an easy-to-use and affordable digital wireless lavalier microphone system for camera mounting and mobile video applications. Its compact and lightweight design is a great solution for capturing audio on the go. Perfect for video production, electronic news gathering and even mobile devices, the PRO-XD includes an adapter cable for compatibility with headset inputs on most modern smartphones and tablets.

Utilizing digital wireless technology, the PRO-XD operates in the 2.4GHz range which is completely free of TV and radio interference. The PRO-XD out performs similarly priced VHF systems with better than CD quality digital audio and delivers dependable operation out to a distance of 100 feet or beyond with direct line of sight. Set up is a breeze with automatic syncing between receiver and transmitter. Internal, rechargeable lithium-ion batteries provide long lasting operation and easy charging via USB.

Designed to delivery high-fidelity audio, the receiver’s high gain output with volume control alleviates noise and hiss produced by low-quality camera preamps and eliminates the need for big adjustments in post-production. The PRO-XD’s transmitter uniquely includes an auxiliary line input, allowing you to wirelessly transmit any stereo, line level audio source and mix it with the microphone source if desired.
With its incredibly small form factor, the PRO-XD is the first viable digital wireless audio solution for use with action cameras, such as the popular Hero® series from GoPro® (3rd party cable may be required for connection).

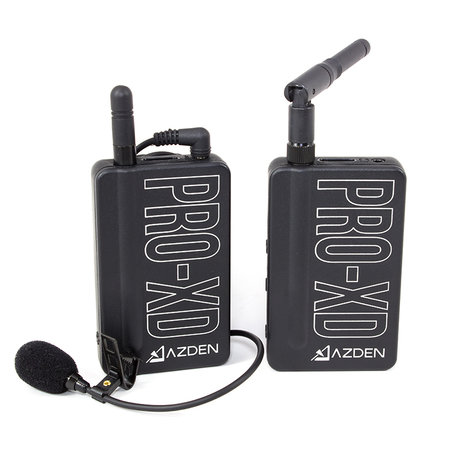

The complete PRO-XD system includes the transmitter, receiver and specially designed lapel microphone as well as an adapter cable for mobile devices, an audio output cable, USB cable and AC adapter for charging.

Azden PRO-XD Digital Wireless Lavalier Microphone System Includes:

  • PRO-XDR receiver
  • PRO-XDT transmitter
  • EX-503XD lavalier microphone
  • Stereo audio output cable
  • TRRS audio adapter cable for mobile devices
  • USB charging unit (cable + AC adapter)
  • Manual

Azden PRO-XD Digital Wireless Lavalier Microphone System Features:

  • Operates in 2.4 GHz wireless range
  • High gain output alleviates noise and hiss produced bylow-quality camera preamps
  • Mobile device compatible
  • Auto sync between transmitter and receiver
  • Operating range of 35 meters or more in optimalconditions
  • Rechargeable internal batteries
  • Wide frequency response and low internal noise
  • Headphone monitor output
  • Line in aux input

Azden PRO-XD Digital Wireless Lavalier Microphone System Specifications:

  • PRO-XD:
    • Operating Freq.: 2.4GHz ISM Band
    • Dynamic Range: 90dB
    • Signal-To-Noise: 80dB
    • Operating Range: 35m typical; up to 120m in ideal conditions.
    • Freq. Response: 20Hz - 20kHz, ± 1dB
    • Digital Sampling: 48kHz/16bit
    • System Latency: 14ms
    • Battery Life Span: 300 cycles
    • Battery Type: Lithium-ion
    • Power Supply: USB 5V
    • Warranty: 2 Years (Registration Required)
    • Accessories: shoe mount, belt clip, lapel clip, TRRS adapter, USB mini to USB-A cable, AC adapter.
  • Transmitter (PRO-XDT):
    • RF Output Power: 10mW
    • Mic Input: F3.5mm mono TRRS
    • Aux Input: F3.5mm stereo, line level
    • Input Impedance:
      • Mic: 2.2kOhms
      • Aux: 10kOhms
    • Max Input: 300mV RMS
    • Battery Life: 11 hours
    • Battery Charge Time: 3 hours 30 min
    • Dimensions: 48x79x14mm (W/H/D)
    • Weight: 62g
  • Receiver (PRO-XDR):
    • RF Output Power: 10mW
    • Max Output Level: -14dBV
    • Mic Output: F3.5mm dual-mono/stereo
    • Headphone Output: F3.5mm stereo
    • Output Impedance:
      • Mic: 600 Ohms
      • Headphone: 16 Ohms
    • Battery Life: 16 hours
    • Battery Charge Time: 3 hours
    • Dimensions: 48x79x14mm (W/H/D)
    • Weight: 68g
  • Microphone (EX-503XD):
    • Mic Element: Electret Condenser
    • Polar Pattern: Omni-Directional
    • Freq. Response: 30Hz - 20kHz
    • Sensitivity: -46dB at 1kHz (0dB=1V/Pa)
    • Impedance: 2.2k-Ohm (at 1kHz)
    • Power Requirement: Plug-in power DC 1-10V
    • Connector Type: F3.5mm TRRS
    • Cord Length: 105cm

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
