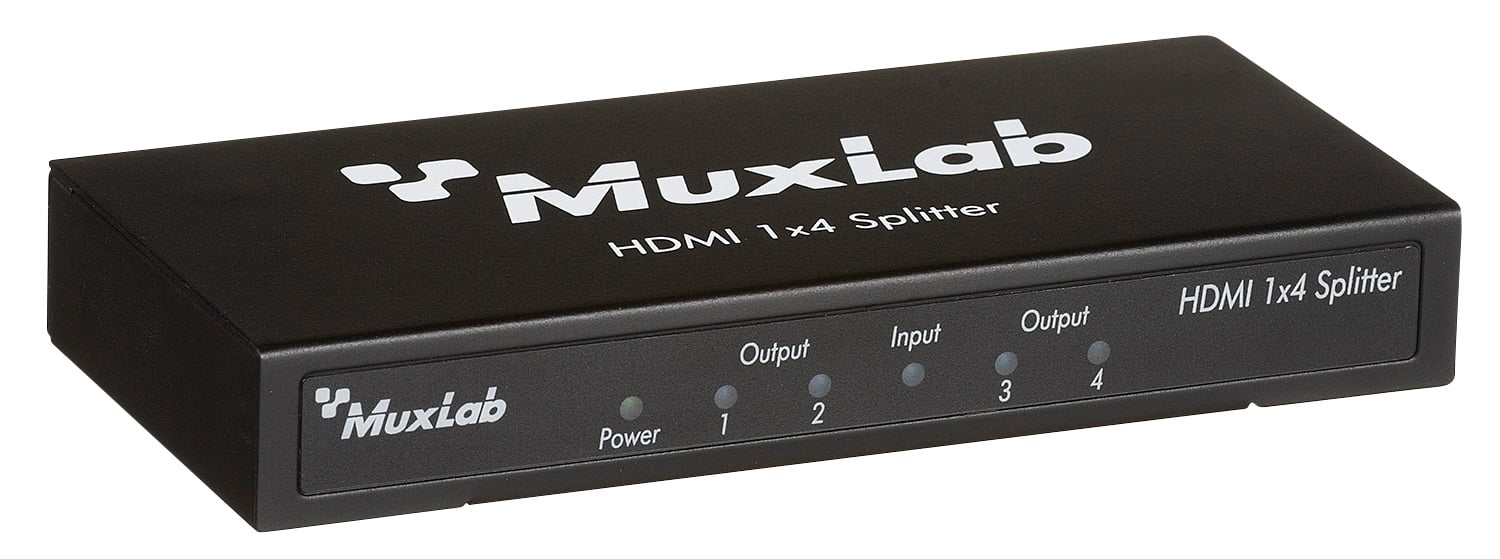

MuxLab 500421
HDMI 4K 1x4 Splitter

OUR PART #:  MUX-500421

The HDMI 1×4 Splitter allows one HDMI source to be distributed to up to four HDMI displays. The splitter supports up to 1080p, 12-bit Deep color and HD audio.
Learn More
Our Price: $105.59
List Price: $115.50
You save 9%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

MuxLab 500421
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Similar Products

The HDMI 1×4 Splitter allows one HDMI source to be distributed to up to four HDMI displays. The splitter supports up to 1080p, 12-bit Deep color and HD audio. The splitter is HDCP 1.3 compliant and features LED diagnostics. Additionally, all HDMI connectors are on the rear panel for neater cabling.

MuxLab 500421 Applications:

  • Commercial and residential AV systems
  • Classroom training systems
  • Digital signage
  • Boardroom systems
  • Medical video systems

MuxLab 500421 Features:

  • Distributes one HDMI source to four displays
  • Supports up to 1080p @ 60Hz, Deep color 12-bit and 4K 3840x2160 @ 24, 25 & 30hz
  • Supports Dolby TrueHD and DTS-HD Master Audio
  • Connectors on rear panel for neater cabling
  • Supports 3D
  • LED diagnostics
  • HDMI 1.4
  • HDCP 1.3 compliant
  • Supports 4K (UHD) Resolutions at 24fps and 30fps (4:4:4)

MuxLab 500421 Specifications:

  • Environment: HDMI 1.4 (3D)
  • Devices: DVD/Blu-Ray, plasma, projectors, monitors, TV, PC, laptops
  • Transmission: Transparent to the user
  • Frequency: 25 to 340 MHz
  • Signals: HDMI 1.4 protocol
  • Connectors:
    • 1 HDMI Type A Input
    • 4 HDMI Type A Output
  • LEDs:
    • Power: Green
    • Input & Output Link: Blue
  • Resolution:
    • 480i to 1080p @ 50/60 FPS
    • 1080p @ 24/50/60 FPS
    • VGA to UXGA
  • Color: 8, 10 & 12 bit
  • Audio: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
  • HDCP: Revision 1.3
  • Cable: HDMI Cable
  • Temperature:
    • Operating: 0° to 40°C
    • Storage: -20° to 60°C
    • Humidity: up to 90% non-condensing
  • Enclosure: Metal enclosure
  • Dimensions: 6.06” x 2.76” x 1.00” (154 mm x 70 mm x 24 mm)
  • Weight: 1.4 lbs (0.64 Kg)
  • Compliance:
    • Regulatory: FCC, CE, RoHS
  • Warranty: 2 years
  • Order Information:  500421 HDMI 1X4 Splitter (UPC Code 627699004210)
