Audio Engineering Assoc N22 Nuvo Stereo Kit
Stereo Mic Kit with Template Bar, Windscreens and Carrying Case

OUR PART #:  N22-NUVO-STEREO-KIT

The Audio Engineering Association (AEA) N22 is the first member of AEA's NUVO series of microphones, and this stereo microphone kit includes two AEA N22s...
Learn More
Our Price: $1,980.00
List Price: $1,998.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Audio Engineering Assoc N22 Nuvo Stereo Kit
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Audio Engineering Association (AEA) N22 is the first member of AEA's NUVO series of microphones, and this stereo microphone kit includes two AEA N22s, laser-engraved template bar, two custom Nuvo windscreens and carrying case. Rooted in the RCA tradition just like other AEA ribbons, all NUVO microphones are designed to offer a fresh approach to the ribbon transducer.

The AEA N22 was made with the singer-songwriter musician in mind, hard-working artists that have honed their musical craft for years feel strongly about their personal tone. They need a microphone that translates their signature sound in a recording, and the N22 delivers on those key points - providing a great ribbon tone without the need for EQ in most applications. Just like the RCA 44, the N22 bridges the gap between vintage and modern, ribbon and condenser, studio and live, and it’s the perfect companion for musicians and engineers alike.

Featuring the same Big Ribbon TM technology that has earned AEA its reputation, the N22 offers an incredible sound in close-mic applications like acoustic and electric guitars, piano, vocals, and drums. With phantom-powered JFET electronics and a custom German transformer, the N22 achieves optimal performance with a wide range of preamps including USB or Firewire audio interfaces in home or project studio setups. The highly protected pure aluminum ribbon allows for using the N22 in live sound applications and vocal recording without the need for an additional pop-filter. The simplicity and ease of use of the entire package allows the focus to be on capturing a great performance even in tight and difficult recording environments.

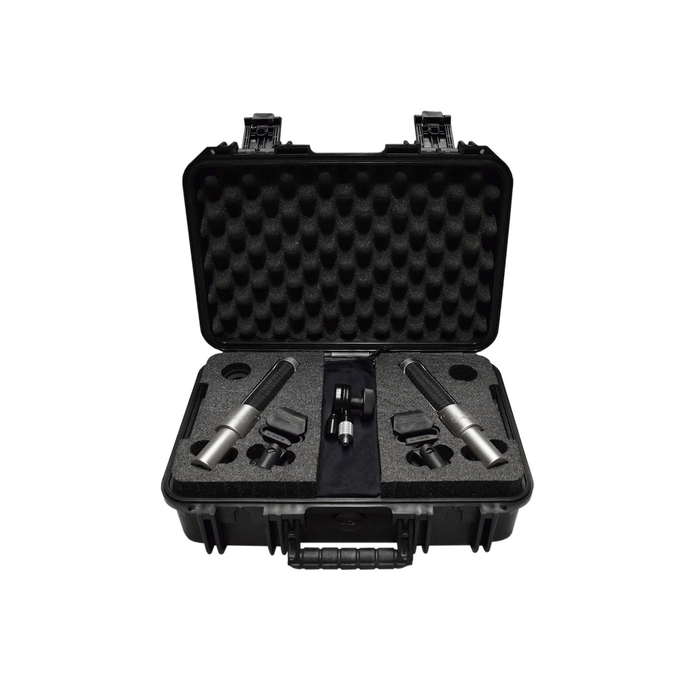

AEA NUVO-STEREO-KIT-N22 Includes:

  • Two N22 microphones
  • Laser-engraved template bar with all the hardwareneeded to set up Blumlein or other stereo configurations
  • Two custom Nuvo windscreens made by Windtech
  • High-quality SKB carrying case with foam inserts
  • Storage/shipping case
  • Microphone stand clip
  • Custom protective mic sleeve

AEA N22 Features:

  • Specifically designed for singer-songwriters,musicians, and home studios
  • Top end clarity of a condenser with a ribbon’ssmoothness
  • Custom German toroidal transformer for 12dB more gain
  • Highly protected ribbon for close-up use and live usewith minimal proximity effect
  • Phantom powered electronics for optimal performancewith any preamp
  • User manual

AEA N22 Specifications:

  • Operating Principle: Pressure gradient microphone
  • Directional Pattern: Bidirectional or Figure-8
  • Frequency Range: 20 Hz to 20 kHz
  • Maximum SPL: 141 dB SPL (1% third harmonic > 1 kHz)
  • Output Sensitivity: 6.2 mV/Pa (-33.5 dBV) intounloaded circuit
  • Output Impedance: 92 Ohm broadband
  • Recommended Load Impedance: 1.0 kOhm or greater
  • Powering: P48 phantom power, 7 mA
  • Polarity: Pin 2 high for positive pressure at thefront of the microphone.
  • Connector: XLR-3M
  • Off Axis Response:
    • Polar Pattern: Native bidirectional pattern
    • Horizontal: Level changes with angle, frequency response is consistent, –35 dB null at 90° / 270°
    • Vertical: Level changes with angle, reduced HF response above and below 0° / 180° axis, –35 dB null at 90° / 270°
  • Transducer element:
    • Ribbon Thickness: 1.8 µ (0.0000018 m) of pure aluminum
    • Ribbon Width: 0.185” (4.7 mm)
    • Ribbon Length: 2.35” (59.7 mm)
  • Accessories:
    • Optional: Matched stereo pair
    • Limited Warranty: One year parts and labor, shipping not included.
    • Three year extended warranty if the product is registered.
  • Weight with Cable: 1 lb. 13 oz (810 g)
  • Weight with case: 12 oz (335 g)
  • Height: 8.83” (32.4 cm)
  • Width: 1.62” (4.1 cm)
  • Depth: 1.62” (4.1 cm)
