Draper Shade and Screen 300273
110V SL10 Scissor Lift

OUR PART #:  300273

Draper’s SL10 Scissor Lift (part number 300273) not only conceals your projector above the ceiling and sets it exactly where you need it for a presentation...
Learn More
Our Price: $5,120.00
List Price: $6,400.00
You save 20%!
Draper Shade and Screen 300273
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

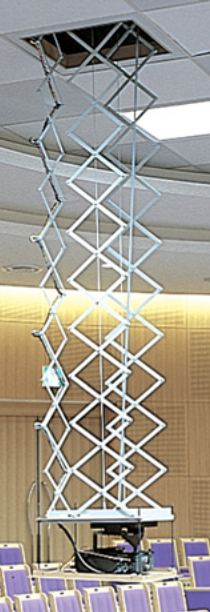

Draper’s SL10 Scissor Lift (part number 300273) not only conceals your projector above the ceiling and sets it exactly where you need it for a presentation, it also brings it down to within easyreach for service. This projector lift offers three positions: store, show and service. The Scissor Lift stabilizes projector both laterally and front-to-back with 3 sets ofscissors, a patented feature. This model, the 300273 has a maximum traveling range of 10 feet (3 m) and a 100 pound (45 kg) lifting capacity. The Scissor Lift is the first and only scissor lift certified to the new UL 2442 and CSA C22.2 No. 60065-03 standards and is CE approved.

Some gear shown above are NOT INCLUDED and sold separately. For more information on this and other products, please contact your Sales Pro.

Draper 300273 Features:

  • White finish is standard, black finish is available
  • Scissor Lifts are available as UL listed. Certified to the new UL 2442 and CSA C22.2 No. 60065-03 standards.
  • This lift will cut power to the projector when in stored position as part of the UL requirement
  • Easily adjust projector's center of gravity for perfect alignment and leveling of lift
  • Includes 3 Position Switch for show position and KeyOperated Switch for service position
  • Warranted for one year against defects in materials and workmanship
  • US Patent No. D395,909

Draper 300273 Specifications:

  • Part No. / 110V: 300273
  • Model: SL10
  • Max. Lowering Distance: 10'
  • Retracted Height: 14"
  • Shipping Weight: 146 lbs.
  • Factory Installed Cables: Draper will factory installcables for RGBHV with BNC or 15pin HD connectors, S-Video, Composite and Component Video with BNC or RCA connectors, Serial Communication for projector control with DB9 connectors, CAT 5e, CAT 6, and HDMI. This option is available on the LCD lift, Micro Projector Lift, and Scissor Lifts. This option saves installation time in the field since installer does not have to attach cables to the lift.
  • Can be independently operated using Draper's motorized lift controls. The SL includes low voltage control for easy interface with secondary systems.
  • SL Series Scissor Lifts fit in 24" x 24" (60cm x 60cm) grid ceiling
  • SL model has lifting capacity of 100 lbs. (45kg)
  • Certified to the new UL 2442 and CSA C22.2 No.60065-03 standards. This lift will cut power to the projector when in stored position. Optional current sensor available.
  • CE Approved
  • U.S. Patent No. D395,909
  • Warranted for one year against defects in materials and workmanship.
  • US Patent No. D395,909
