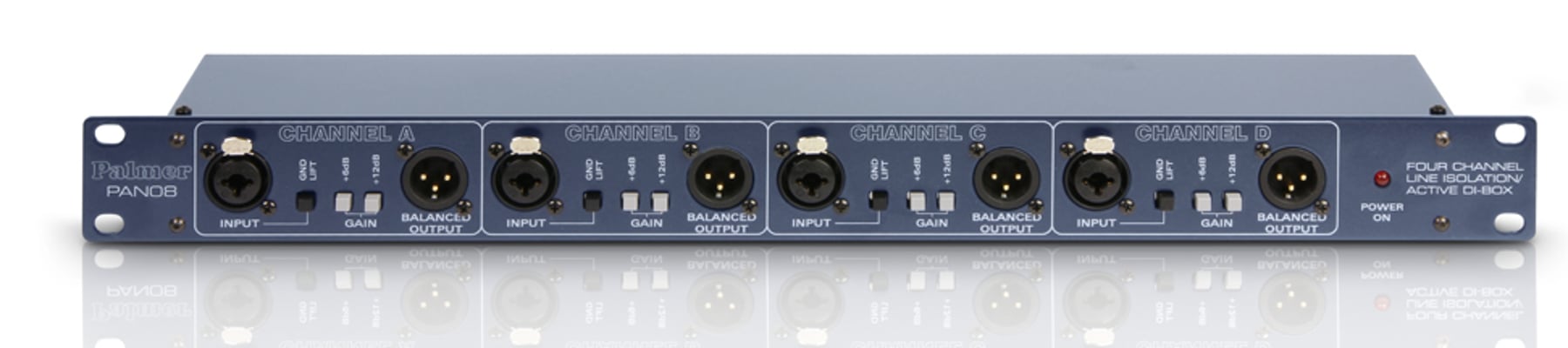

Palmer PAN 08
19" 4 Channel DI/Line Isolation Box

OUR PART #  PAN-08

Our Price: $499.99
List Price: $824.95
You save 39%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Palmer PAN 08 is a multifunctional device. The four channels can be used independently as an active DI box, line isolation box, or booster. The combination socket input accepts both unbalanced and balanced signals, and the output has dual transformer balanced XLR jacks.

The signal level can be attenuated by 20 dB for microphone inputs, but can also be boosted in three stages by up to 18 dB for LINE inputs.  The unit meets even high professional standards with it's +12 dBu output on a load of 600 Ohms with 0.05% THD / 40Hz, and an output noise level of less than -110 dBu. With a supply voltage that may range from 9 - 18 V, the PAN 08 can be used without mains power outdoors.

Palmer PAN 08 Features:

  • Product type: DI box
  • Type: Active
  • Channels: 4
  • Inputs: 4
  • Input Connectors: 6.3 mm Jack, XLR
  • Max. Input Level: +12 dBu
  • Input Impedance: Balanced: 20k Ohm(s)
  • Outputs: 8
  • THRU outputs/channel: 0
  • Output Connectors: XLR
  • Max. Output level: +12 dB
  • Output Impedance: 600 Ohm(s)
  • Frequency Response: 20 - 20000 Hz
  • Transformer Balanced: Yes
  • Ratio: Variable
  • Indicators: Power
  • Controls: 2 x gain, attenuator, ground lift
  • Operating Voltage: 9 V DC power supply
  • Cabinet Material: Sheet Steel
  • Cabinet Surface: Powder coated
  • Width: 480 mm
  • Width: 19"
  • Depth: 90 mm
  • Height: 45 mm
  • Height: 1 U
  • Weight: 3.505 lbs (1.59 kg)



Palmer PAN 08
19" 4 Channel DI/Line Isolation Box

OUR PART #  PAN-08

Product Information:

Palmer PAN 08 is a multifunctional device. The four channels can be used independently as an active DI box, line isolation box, or booster. The combination socket input accepts both unbalanced and balanced signals, and the output has dual transformer balanced XLR jacks.

The signal level can be attenuated by 20 dB for microphone inputs, but can also be boosted in three stages by up to 18 dB for LINE inputs.  The unit meets even high professional standards with it's +12 dBu output on a load of 600 Ohms with 0.05% THD / 40Hz, and an output noise level of less than -110 dBu. With a supply voltage that may range from 9 - 18 V, the PAN 08 can be used without mains power outdoors.

Palmer PAN 08 Features:

  • Product type: DI box
  • Type: Active
  • Channels: 4
  • Inputs: 4
  • Input Connectors: 6.3 mm Jack, XLR
  • Max. Input Level: +12 dBu
  • Input Impedance: Balanced: 20k Ohm(s)
  • Outputs: 8
  • THRU outputs/channel: 0
  • Output Connectors: XLR
  • Max. Output level: +12 dB
  • Output Impedance: 600 Ohm(s)
  • Frequency Response: 20 - 20000 Hz
  • Transformer Balanced: Yes
  • Ratio: Variable
  • Indicators: Power
  • Controls: 2 x gain, attenuator, ground lift
  • Operating Voltage: 9 V DC power supply
  • Cabinet Material: Sheet Steel
  • Cabinet Surface: Powder coated
  • Width: 480 mm
  • Width: 19"
  • Depth: 90 mm
  • Height: 45 mm
  • Height: 1 U
  • Weight: 3.505 lbs (1.59 kg)
