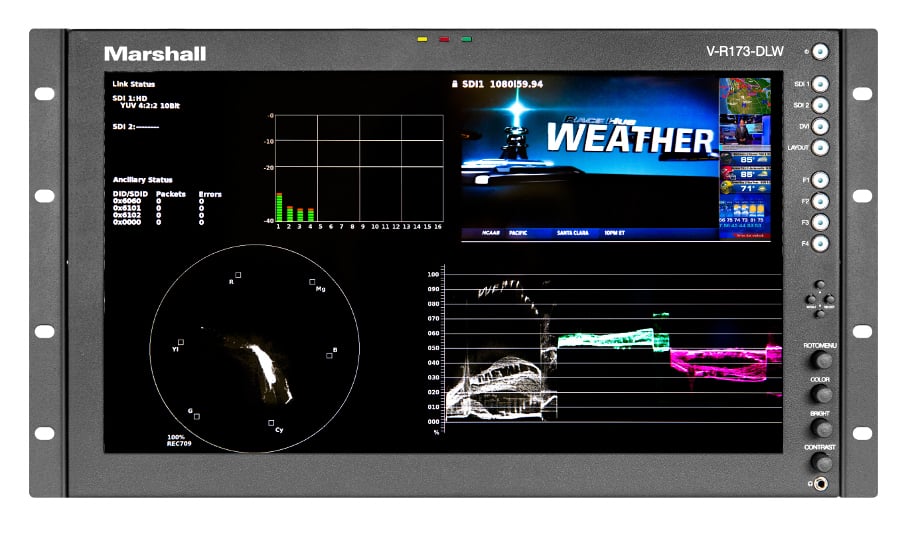

Marshall Electronics V-R173-DLW
17.3" Desktop-Rack Mount Monitor with Digital Analytics

OUR PART #:  V-R173-DLW

The 17.3" V-R173-DLW monitor from Marshall Electronics features 3G, Dual Link and DVI inputs and displays Waveform & Vectorscope...
Learn More
Our Price: $2,623.75
List Price: $3,087.00
You save 15%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics V-R173-DLW
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The 17.3" V-R173-DLW monitor from Marshall Electronics features 3G, Dual Link and DVI inputs and displays Waveform & Vectorscope, Digital Audio and a host of additional information in a 10 bit "no compromise" video path. In Quad-View mode, the input signal can be broken into four quadrants that simultaneously displays all of the critical information needed to keep your signal path within all critical specifications. Additional features include IMD protocol support for TSL, NVISION, Image Video, and MEI (Marshall Electronics) tricolor tally and in- monitor text systems via RS-485. Other display features include full CEA-608-B and CEA-708-B Closed Captioning, Timecode and VANC data.

Marshall Electronics V-R173-DLW Features:

  • 1920 x 1080 LED-backlit panel: The V-R173-DLW features an all-digital 1920x1080 LED-Backlit display. The LCD panel features a brightness of 400 cd/m² and a 600:1 contrast ratio making it ideal in a variety of environments and lighting conditions.
  • Multi mode, Vectorscope and Waveform Monitor mode: The DLW monitor series includes a real-time Waveform monitor and Vectorscope along with support for SDI, HD-SDI, 3G-SDI and Dual Link SDI. With the monitor in Multi mode, the monitor will break into four quadrants and display Signal Input information (Link Status), Embedded Audio levels, a Waveform monitor, a Vectorscope and live video simultaneously. Additional layouts provide the ability to view the Waveform monitor, Vectorscope, SDI Link status and Video individually.
  • Closed Captioning Decoding: The DLW monitor allows for decoding of Closed Captioning in the EIA-608 or EIA-708.
  • OSD Features (On-Screen Display): Embedded time code and an embedded audio presence indicator can be displayed on the screen in a variety of configurations. Closed Caption presence indication is also provided for 608/708 captions.
  • Advanced Features:
    • In-Monitor Display allows on-screen text and tally indication, controlled locally or remotely via a variety of industry standard protocols. Color temperature adjustment, aspect ratio settings, blue-only mode, and monochrome mode are a few of the advanced features allowing the V-R173-DLW to be at home in any broadcast environment. Pixel-to-Pixel mode also allows native display of any incoming image format.
    • Four User-Definable Function Buttons: Four user-definable function buttons allow quick access to numerous settings and features including aspect ratio, monochrome mode, color temperature, and more.

Marshall Electronics V-R173-DLW Specifications:

  • Panel:
    • Panel: Size 17.3" Diagonal
    • Resolution 1920 x 1080
    • Aspect Ratio 16:9
    • Active Area 381.88 x 214.81 mm / 15.04 x 8.46 in.
    • Type LCD Panel
    • Brightness 400 cd/m²
    • Contrast 600:1
    • Viewing Angles (CR>=10) 160° x 160°
    • Backlight type LED
    • Adjustable Backlight
  • Inputs:
    • 2 x 3G-SDI inputs with loop-through and SD-SDI, HD-SDI, & 3G-SDI support.
    • SDI inputs can be used in tandem to do dual link
    • 1 x DVI-I input: supports digital DVI, HDMI (without audio), Analog video (RGB, YPbPr) to 162MHz
  • Outputs:
    • SD-SDI
    • HD-SDI
    • 3G-SDI
    • Audio Meters
    • Embedded audio from SDI
    • Input Status Display
  • Processing:
    • 10-bit image processor
    • 4x3 and 16x9 aspect ratios
    • High quality motion adaptive deinterlacer
    • Time-code (LTC / VITC)
    • 608/708 closed captioning
    • Waveform monitor
    • Vectorscope
    • Ancillary data window
    • 16 channels of audio metering (SDI inputs only)
    • Standard Marshall IMD processing
    • RotoMenu controlled OSD
    • Four programmable function buttons
    • System statistics monitoring in OSD
    • Variety of markers
  • Control Inputs:
    • Tally / GPI Tally
    • RS-485/422 w/ Loop-Through
    • Controls on front Panel
    • User-Defined Function Buttons
    • RotoMenu™ Control
    • Pivot Angle
    • Handles/Rack Ears
    • Power Voltage: 12 VDC
  • Power:
    • Consumption 3.0A @ 12VDC (36 W)
    • Power Switch
    • Connector 4-Pin XLR Connector
  • Compliance:
    • Compliance CE approved
  • Environmental:
    • Operating Temperature: (C°) 32°F to 104°F (0°C to 40°C)
    • Storage Temperature: (C°) -14° F to120° F (-20°C to 50°C)
    • Rack Unit dimensions: 17.15" W x 10.45" H x 2.00" D
    • Weight (Main Body): 7 lbs
    • Vesa Mount 75mm
  • Miscellaneous:
    • Hard TALLY (Red, Yellow, Green LEDs)
    • Soft TALLY (in IMD)
    • RS-485 interface supports Marshall, Image Video and TSL protocols
    • System supports color calibration
    • RS-485 based firmware update
