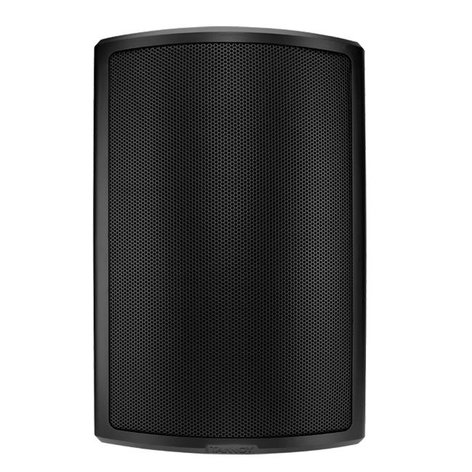

Tannoy AMS 6DC
6" Surface Mount Speaker, Black

OUR PART #  AMS6DC-BLK

Call for price! Not available online.


The Tannoy AMS 6DC is a wide bandwidth, high power-handling and high sensitivity surface mount loudspeaker designed with an aesthetic that is perfect for the architectural considerations of building design. The elegantly styled moulded enclosures blend beautifully into any décor with custom color available on special order. Additionally the AMS 6DC has undergone the most punishing environmental testing of any product in Tannoy’s history – achieving an IP65 rating, which is among the highest for outdoor use.

Behind the unobtrusive, smoothly formed, weather-resistant zinc-plated nickel grilles and higher temperature polymer mouldings lies the technical heart of Tannoy’s Dual Concentric Driver’s revolutionary Omnimagnet™ technology and a unique patent-pending Torus Ogive Waveguide™ device. Together these innovations provide more consistent and controlled directivity along with improved high frequency response, as well as much improved time alignment and greater coherence between the low frequency and high frequency drivers.

This latest generation of Dual Concentrics has their genesis in many of the world’s high end recording studios, with Tannoy technology being used to mix and master a rich history of recordings - including The Beatles’ treasured Abbey Road recordings in London. By extension, the AMS models ensure that playback of recorded material sounds exactly as the engineer intended when it was mixed in the studio, making them ideal for entertainment and hospitality venues, as well as areas where true sonic clarity and reliability is required.

The AMS range utilizes a 16 ohm driver, making it ideal for use in high performance low-impedance systems (with optimized performance when used in conjunction with Lab.gruppen LUCIA amplifiers). Alternatively, for constant voltage systems, Tannoy have specified as standard, high quality low insertion loss 60 W transformers featuring switching for taps at 60 W, 30 W and 15 W, with an additional 7.5 W tap for traditional systems.

Tannoy AMS 6DC Features:

  • Dual Concentric driver featuring Omnimagnet technology
  • Torus Ogive waveguide for improved broadbanddirectivity
  • 16-ohm drivers optimized for use with Lab.gruppenLUCIA amplifiers
  • Yoke bracket included; optional any-angle accessorybracket available
  • Weather resistant rated IP65 to EN60529 (IEC529)
  • Thickened 4 mm high-temperature molded cabinets
  • Custom color options

Tannoy AMS 6DC Specifications:

Performance

  • Frequency Response (-3 dB): 75 Hz - 30 kHz
  • Frequency Range (-10 dB): 55 Hz - 40 kHz
  • System Sensitivity (1 W @ 1 m): 89 dB (1 W = 4 V for16 Ohms)
  • Nominal Coverage Angle: 90 degrees conical
  • Power Handling:
    • Average: 80 W
    • Programme: 160 W
    • Peak: 320 W
  • Recommended Amplifier Power: 160 W @ 16 Ohms
  • Rated Maximum SPL:
    • Average: 108 dB
    • Peak: 114 dB
  • Transformer Taps (via front rotary switch):
    • 70 V: 60 W / 30 W / 15 W / 7.5 W / OFF & low impedance operation
    • 100 V: 60 W / 30 W / 15 W / OFF & low impedance operation

Transducers

  • Dual Concentric point source driver: 1 x 165 mm (6.5")Dual Concentric driver, using Omnimagnet technology
  • Low Frequency: 44 mm (1.75"?) voice coil, treatedmulti fiber paper pulp cone
  • High Frequency: 25 mm (1.00") PEI dome

Physical

  • Enclosure: ABS
  • Grille: Weather-resistant zinc nickel-plated steelgrille
  • Connectors: Removable locking connector with screwterminals
  • Transformer setting: Rotary switch
  • Dimensions (H x W x D): 364.8 x 230.0 x 268.8 mm(14.36 x 9.05 x 10.58")
  • Net Weight (ea): 6.08 kg (13.4 lbs.)
  • Shipping Weight: 6.76 kg (14.9 lbs.)
  • Included Accessories: Yoke bracket
  • Packed Quantity: 2
  • Color(s): White or Black

Tannoy AMS 6DC
6" Surface Mount Speaker, Black

OUR PART #  AMS6DC-BLK

Product Information:

The Tannoy AMS 6DC is a wide bandwidth, high power-handling and high sensitivity surface mount loudspeaker designed with an aesthetic that is perfect for the architectural considerations of building design. The elegantly styled moulded enclosures blend beautifully into any décor with custom color available on special order. Additionally the AMS 6DC has undergone the most punishing environmental testing of any product in Tannoy’s history – achieving an IP65 rating, which is among the highest for outdoor use.

Behind the unobtrusive, smoothly formed, weather-resistant zinc-plated nickel grilles and higher temperature polymer mouldings lies the technical heart of Tannoy’s Dual Concentric Driver’s revolutionary Omnimagnet™ technology and a unique patent-pending Torus Ogive Waveguide™ device. Together these innovations provide more consistent and controlled directivity along with improved high frequency response, as well as much improved time alignment and greater coherence between the low frequency and high frequency drivers.

This latest generation of Dual Concentrics has their genesis in many of the world’s high end recording studios, with Tannoy technology being used to mix and master a rich history of recordings - including The Beatles’ treasured Abbey Road recordings in London. By extension, the AMS models ensure that playback of recorded material sounds exactly as the engineer intended when it was mixed in the studio, making them ideal for entertainment and hospitality venues, as well as areas where true sonic clarity and reliability is required.

The AMS range utilizes a 16 ohm driver, making it ideal for use in high performance low-impedance systems (with optimized performance when used in conjunction with Lab.gruppen LUCIA amplifiers). Alternatively, for constant voltage systems, Tannoy have specified as standard, high quality low insertion loss 60 W transformers featuring switching for taps at 60 W, 30 W and 15 W, with an additional 7.5 W tap for traditional systems.

Tannoy AMS 6DC Features:

  • Dual Concentric driver featuring Omnimagnet technology
  • Torus Ogive waveguide for improved broadbanddirectivity
  • 16-ohm drivers optimized for use with Lab.gruppenLUCIA amplifiers
  • Yoke bracket included; optional any-angle accessorybracket available
  • Weather resistant rated IP65 to EN60529 (IEC529)
  • Thickened 4 mm high-temperature molded cabinets
  • Custom color options

Tannoy AMS 6DC Specifications:

Performance

  • Frequency Response (-3 dB): 75 Hz - 30 kHz
  • Frequency Range (-10 dB): 55 Hz - 40 kHz
  • System Sensitivity (1 W @ 1 m): 89 dB (1 W = 4 V for16 Ohms)
  • Nominal Coverage Angle: 90 degrees conical
  • Power Handling:
    • Average: 80 W
    • Programme: 160 W
    • Peak: 320 W
  • Recommended Amplifier Power: 160 W @ 16 Ohms
  • Rated Maximum SPL:
    • Average: 108 dB
    • Peak: 114 dB
  • Transformer Taps (via front rotary switch):
    • 70 V: 60 W / 30 W / 15 W / 7.5 W / OFF & low impedance operation
    • 100 V: 60 W / 30 W / 15 W / OFF & low impedance operation

Transducers

  • Dual Concentric point source driver: 1 x 165 mm (6.5")Dual Concentric driver, using Omnimagnet technology
  • Low Frequency: 44 mm (1.75"?) voice coil, treatedmulti fiber paper pulp cone
  • High Frequency: 25 mm (1.00") PEI dome

Physical

  • Enclosure: ABS
  • Grille: Weather-resistant zinc nickel-plated steelgrille
  • Connectors: Removable locking connector with screwterminals
  • Transformer setting: Rotary switch
  • Dimensions (H x W x D): 364.8 x 230.0 x 268.8 mm(14.36 x 9.05 x 10.58")
  • Net Weight (ea): 6.08 kg (13.4 lbs.)
  • Shipping Weight: 6.76 kg (14.9 lbs.)
  • Included Accessories: Yoke bracket
  • Packed Quantity: 2
  • Color(s): White or Black
