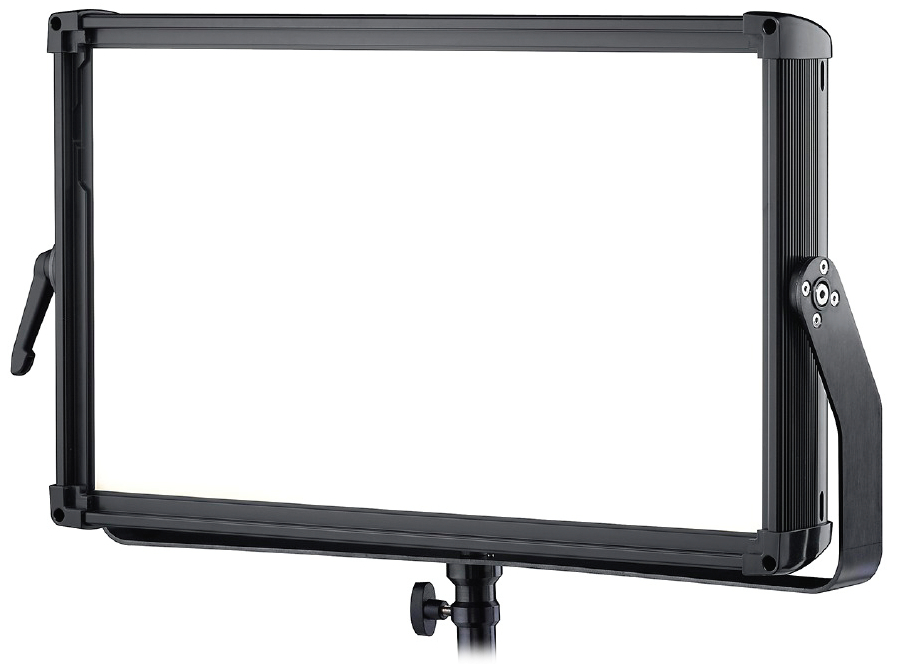

Rosco Silk 210 Bi-Color LED Soft Light Fixture

Uncompromising light output for film and broadcast professionals is what Rosco's Silk™ 210 LED fixture provides. Designed to meet the requirements of the most discerning filmmaker, the Silk LED lighting system has been specifically developed for film and video applications that demand extremely color-accurate, high-quality light.

About Silk LED Fixtures

Uncompromising Color Quality - Utilizing proprietary, state-of-the-art, tungsten & daylight balanced LEDs, Silk LED fixtures produce a high volume of broad-spectrum white light. With TLCI, CRI and R9 metrics in the high 90's, the fixture is capable of producing a high volume of light output at color temperatures ranging from 2800K - 6500K.

The output from Rosco Silk LED fixtures has been validated using TLCI test algorithms and validated as a source of the highest quality. The resulting metrics indicate that Rosco Silk fixtures will need negligible correction in post-production, save for subjective adjustments.

The diagrams below show, histogram, spectral power distribution and chip chart images gathered using a standard Silk 210 at the 3200K and 5600K set points.

Flattering Light - Rosco Silk LED fixtures create enticingly soft, diffused light that gently embraces its subjects. The unit features a non-glare diffuser to provide a uniform, single-source light. Optional barn doors & magnetic egg crates are available for additional beam control.

Ready to Work, Wherever and Whenever Needed - The fixture has on-board dimming and color temperature controls for filmmakers to control the fixture on-location, as well as DMX options for integration into broadcast studios. It ships with a 100 - 240 AC power supply, enabling it for worldwide use. V-Lock, Anton/Bauer, and 4-Pin XLR input are available (sold separately) to enable maximum portability.

Approvals

• ETL/UL1573 and 8750, CE, RoHS, IP20 Rated

Rosco Silk 210 Includes:

• Silk 210 LED Fixture
• 100-240VAC power supply
• 3m power cord

Rosco Silk 210 Features:

• High-volume light output – 2400 lux @ 1m @ 5600K
• Color-correct, attractive and soft
• DMX and local control
• Non-glare diuser provides uniform, single source light

Rosco Silk 210 Specifications:

• Manufacturer Part Number:
• Physical Properties
  • Housing: Anodized Aluminum (Black)
  • Silk 210 Physical Characteristics:
    • Dimensions excluding yoke: 20.5" W x 11.9" L x 3.9" L (98 mm x 520 x 98mm)
    • Weight excluding yoke: 11.2 lbs (5.1 kg)
    • Dimensions including yoke: 21.9" W x 13.9" L x 3.9" D (352 x 98 x 557 mm)
    • Weight including yoke: 13 lbs (5.9 kg)
    • Dimensions in the case: 24" W x 16" L x 8" D (609.6 x 406.4 x 203.2 mm)
    • Weight in the case: 21.8 lbs. (9.9 kg)
  • Optical Properties
    • Color Temperature Range: 2800K - 6500K
    • Photometrics @ 5600K:
      • Distance 1m: 2400 Lux
      • Distance 2m: 900 Lux
      • Distance 3m: 380 Lux
    • Color Metrics:
      • Parameter TLCI: 97 @3200K, 98 @5600K
      • Parameter CRI Ra: 98 @3200K, 94 @5600K
      • Parameter R9: 98 @3200K, 95 @5600K
      • Parameter CQS: 96 @3200K, 91 @5600K
    • Electrical Properties
      • Input Voltage: 12-36 VDC
      • Power Supply: Universal 100-240 VAC, 50/60 Hz
      • Power Consumption: 120 watts max (DC)
      • Data: DMX 512 via 5-pin XLR
