Neutrik NE8MX6-B
Cable Carrier etherCON CAT6A, Black

OUR PART #:  NE8MX6-B

Neutrik NE8MX6-B: etherCON CAT6A cable connector self-termination, black plating The set NE8MX6-B includes a cable plug carrier offering a robust metal shell...
Learn More
Our Price: $14.07
List Price: $17.99
Save up to 34% when you order by quantity!
  • Buy 25: $12.71 each.
  • Buy 50: $12.26 each.
  • Buy 100: $11.80 each.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NE8MX6-B
Qty:
Similar Products

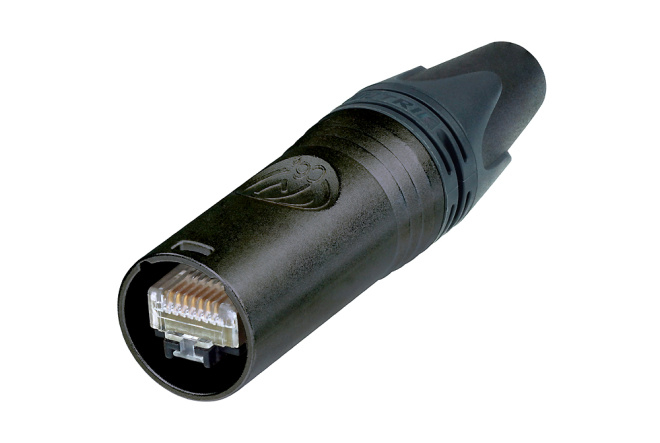

Neutrik NE8MX6-B: etherCON CAT6A cable connector self-termination, black plating

The set NE8MX6-B includes a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and gauge of AWG24 - AWG22/1 (solid) or AWG24 - AWG22/7 (stranded). Does not intermate with CAT6 chassis connectors.

Neutrik NE8MX6-B Features:

  • Ruggedized connector with CAT6A component compliance according to ISO / IEC 11801 and TIA / EIA 568-C.2
  • PoE+ compliant according to 802.3at Type2IP 65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
  • Rugged latch lock system million fold proven
  • Intermateable with the existing etherCON CAT5 range
  • Unique Neutrik chuck-type strain relief

Neutrik NE8MX6-B Specifications:

  • Product:
    • Title: NE8MX6-B
    • Gender: Male
  • Electrical:
    • Dielectric strength: 1 kVdc
    • Insulation resistance: > 0.5 G-Ohm
    • Rated current per contact: 1.5 A
    • Transmission performance:
      • CAT6A, acc. TIA/EIA rating
      • CAT6A, acc. IEC/ISO/EN rating
    • Power over Ethernet: PoE+ acc. IEEE 802.3at
  • Mechanical:
    • Cable O.D.: 7.0 - 9.5 mm
    • Lifetime: > 1,000 mating cycles
    • Wiresize:
      • solid: AWG 24 - AWG 22/1
      • stranded: AWG 24 - AWG 22/7
    • Locking device: Latch lock
    • Insulation diameter: > 1.1 - 1.6 mm
  • Material:
    • Bushing: PA / PU
    • Contact plating: Au
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Black
    • Strain relief: POM
  • Environmental:
    • Protection class: IP 65 (in combination with NE8FDX-*6-W)
    • Temperature range: -40 °C to +70 °C
