Sonnet Tempo SSD Pro Plus
SSD Expansion PCI Express Card with Dual eSATA Ports, 6 Gb/s

OUR PART #  TSATA6-SSDPS-E2

Our Price: $299.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

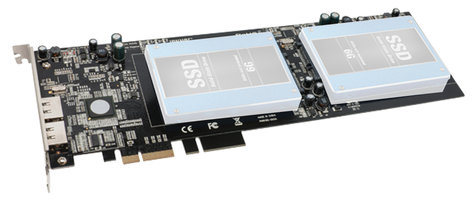

Sonnet's Tempo™ SSD Pro Plus is a fast 6 Gb/s SATA PCI Express adapter card that allows you to attach 2.5" SSDs and install them into a single PCIe slot without the need for any cables or drivers, allowing you to greatly enhance the speed of your older Mac Pro® or Windows ® desktop computer.

SSDs shown in photos above are sold separately. Please contact your Sales Pro for more information on this and other products.



Sonnet Tempo SSD Pro Plus Features:

  • Adds Fast SSDs to Your System: Mounts twohigh-performance 6 Gb/s SSDs (sold separately) in your Mac Pro's, desktopPC's, or Thunderbolt expansion chassis' PCIe slot
  • Adds eSATA Connectivity to Your System: Cost-effectivesolution for adding high-performance 6 Gb/s eSATA ports to your Mac Pro ordesktop PC with PCIe slots, or Thunderbolt expansion chassis with PCI Expressslots
  • High-Performance PCIe Interface: PCI Express 2.0 x4host bus interface for high-performance applications
  • Superior Performance: Data transfers speeds up to 960MB/sec
  • Optimized for Maximum Performance Over Thunderbolt:Perfect for use in Sonnet's Echo™ Express III-D, Echo ExpressIII-R, xMac Pro Server, and xMac™ mini Server Thunderbolt expansion systems
  • RAID Support: Supports OS X and Windows RAID features
  • Boot Support: Supports booting from attached drivesunder OS X or Windows 7 and 8
  • Supports S.M.A.R.T. data reporting
  • Supports Sonnet-exclusive locking eSATA data cables

Sonnet Tempo SSD Pro Plus Specifications:

  • Hardware
    • Warranty: 5-year
    • Drives Supported
      • SATA 6 Gb/s
      • SATA 3 Gb/s
      • SATA 1.5 Gb/s
    • Drives Supported (External): Up to 10 (5 per port)
    • Data Transfer Rate: Up to 960 MB/s(1) (1700 MB/s with two cards)
    • Firmware: Flash-ROM upgradeable to latest firmware version
    • Boot Support:
      • Single SSD or up to six SSDs in a RAID 0:
        • Mac Pro [early 2008 (3,1) through mid 2012(5,1)]
        • Any Thunderbolt Mac(2)
      • Single SSD only:
        • Windows 10, 8, 7, or Server 2012 PCs(3)
    • AHCI Support
      • System;
        • Boot Support:
          • OS X
          • Windows 10, 8, 7
          • Windows Server 2012
        • Port Multiplier Aware:
          • OS X
          • Windows 10, 8, 7
          • Windows Server 2012
        • Hot Plug Drive
          • OS X
    • Advanced Features
      • Supports S.M.A.R.T. status data reporting
      • Supports Spread Spectrum Clocking for compatibility with all SATA drivers and for lower EMI emissions
    • RoHS Compliant: Yes
    • Package Contents:
      • Tempo SSD Pro 6 Gb/s SATA Dua 2.5" SSD PCIe 2.0 Card with eSATA Ports
      • SSD mounting screws
      • Documentation
      • (Note: SSDs sold separately)
    • Mac Compatibility:
      • Mac Pro (with card slots)
      • Mac with a Thunderbolt or Thunderbolt 2 port via a Thunderboltto-PCIe Card Expansion System
      • OS X 10.6.8+
      • OS X El Capitan compatible
    • PC Compatibility:
      • PC (with PCIe slots)
      • Windows 10, Windows 8, Widows 7, Windows Vista®
      • Windows Server 2012, 2008 R2, 2008
    • Thunderbolt Compatibility:
      • Mac or PC with a Thunderbolt or Thunderolt 2 port via a Thunderbolt-to-PCIe Card Expansion System



Sonnet Tempo SSD Pro Plus
SSD Expansion PCI Express Card with Dual eSATA Ports, 6 Gb/s

OUR PART #  TSATA6-SSDPS-E2

Product Information:

Sonnet's Tempo™ SSD Pro Plus is a fast 6 Gb/s SATA PCI Express adapter card that allows you to attach 2.5" SSDs and install them into a single PCIe slot without the need for any cables or drivers, allowing you to greatly enhance the speed of your older Mac Pro® or Windows ® desktop computer.

SSDs shown in photos above are sold separately. Please contact your Sales Pro for more information on this and other products.



Sonnet Tempo SSD Pro Plus Features:

  • Adds Fast SSDs to Your System: Mounts twohigh-performance 6 Gb/s SSDs (sold separately) in your Mac Pro's, desktopPC's, or Thunderbolt expansion chassis' PCIe slot
  • Adds eSATA Connectivity to Your System: Cost-effectivesolution for adding high-performance 6 Gb/s eSATA ports to your Mac Pro ordesktop PC with PCIe slots, or Thunderbolt expansion chassis with PCI Expressslots
  • High-Performance PCIe Interface: PCI Express 2.0 x4host bus interface for high-performance applications
  • Superior Performance: Data transfers speeds up to 960MB/sec
  • Optimized for Maximum Performance Over Thunderbolt:Perfect for use in Sonnet's Echo™ Express III-D, Echo ExpressIII-R, xMac Pro Server, and xMac™ mini Server Thunderbolt expansion systems
  • RAID Support: Supports OS X and Windows RAID features
  • Boot Support: Supports booting from attached drivesunder OS X or Windows 7 and 8
  • Supports S.M.A.R.T. data reporting
  • Supports Sonnet-exclusive locking eSATA data cables

Sonnet Tempo SSD Pro Plus Specifications:

  • Hardware
    • Warranty: 5-year
    • Drives Supported
      • SATA 6 Gb/s
      • SATA 3 Gb/s
      • SATA 1.5 Gb/s
    • Drives Supported (External): Up to 10 (5 per port)
    • Data Transfer Rate: Up to 960 MB/s(1) (1700 MB/s with two cards)
    • Firmware: Flash-ROM upgradeable to latest firmware version
    • Boot Support:
      • Single SSD or up to six SSDs in a RAID 0:
        • Mac Pro [early 2008 (3,1) through mid 2012(5,1)]
        • Any Thunderbolt Mac(2)
      • Single SSD only:
        • Windows 10, 8, 7, or Server 2012 PCs(3)
    • AHCI Support
      • System;
        • Boot Support:
          • OS X
          • Windows 10, 8, 7
          • Windows Server 2012
        • Port Multiplier Aware:
          • OS X
          • Windows 10, 8, 7
          • Windows Server 2012
        • Hot Plug Drive
          • OS X
    • Advanced Features
      • Supports S.M.A.R.T. status data reporting
      • Supports Spread Spectrum Clocking for compatibility with all SATA drivers and for lower EMI emissions
    • RoHS Compliant: Yes
    • Package Contents:
      • Tempo SSD Pro 6 Gb/s SATA Dua 2.5" SSD PCIe 2.0 Card with eSATA Ports
      • SSD mounting screws
      • Documentation
      • (Note: SSDs sold separately)
    • Mac Compatibility:
      • Mac Pro (with card slots)
      • Mac with a Thunderbolt or Thunderbolt 2 port via a Thunderboltto-PCIe Card Expansion System
      • OS X 10.6.8+
      • OS X El Capitan compatible
    • PC Compatibility:
      • PC (with PCIe slots)
      • Windows 10, Windows 8, Widows 7, Windows Vista®
      • Windows Server 2012, 2008 R2, 2008
    • Thunderbolt Compatibility:
      • Mac or PC with a Thunderbolt or Thunderolt 2 port via a Thunderbolt-to-PCIe Card Expansion System
