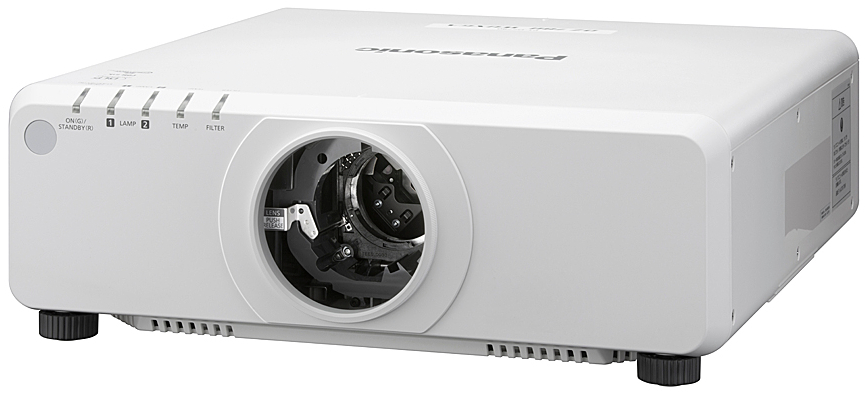

Panasonic PTDW750LWU WXGA
7000 Lumen DLP Projector Body Only in White (Lens Sold Separately)

OUR PART #  PTDW750LWU

Our Price: $4,999.00
List Price: $8,999.00
You save 44%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Panasonic's PT-DW750LWU DLP™ projector (part of the Panasonic PT-DZ780 series) shines bright, outputting high-quality images, and offering advanced functionality for application versatility. With operating noise of only 30 dB*, it's ideal for exhibitions, museums, auditoriums, and other noise-critical situations. Lens(es) sold separately.
* 28 dB with the lamp power set to Eco.

Panasonic PT-DW750LWU Includes:

  • PT-DW750LBU Projector Body Only (Lens[es] sold separately) in White Cabinet
  • Power cord with secure lock
  • Wireless/wired remote control unit
  • Batteries (R03/AAA type x 2)
  • Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software)

Panasonic PT-DW750LWU Features:

  • High Brightness of 7,000 Lumens
  • Virtually Un-noticeable Operation with 30dB in Normal Mode*
  • Dynamic RGB Booster Enhances Both Brightness and Color Reproduction
  • Detail Clarity Processor Brings Depth and Clarity to Details
  • System Daylight View 2 for Enhanced Color Perception
  • DICOM Simulation Mode**
  • Waveform Monitor Function
  • Full 10-Bit Image Processing
  • Long-Lasting Lamp Life - up to 4,000 hours (Usage environment affects lamp life)
  • Dust-Resistant Optical Block
  • Dual-Lamp System Prevents Image Interruptions
  • DIGITAL LINK - Transmits Digital Signals up to 492' (150m) on a Single Cable
    * 28 dB with the lamp power set to Eco.
    ** This product is not a medical instrument. Do not use it for actual medical diagnosis.

Panasonic PT-DW750LWU Specifications:

  • Model  PT-DW750LWU
  • Power supply: 100-240 V AC, 9.0-4.0 A, 50/60 Hz
  • Power consumption: 790 W (810 VA)
    (0.3 W when STANDBY MODE set to ECO*1, 3 W when STANDBY MODE set to NORMAL)
  • Dissipation BTU: 2,696 BTU/hour (without light output: 2,601 BTU/hour)
  • DLP™ chip:
    • Panel size: 16.5 mm (0.65 in) diagonal (16:10 aspect ratio)
    • Display method: DLP™ chip x 1, DLP™ projection system
    • Pixels: 1,024,000 (1,280 x 800) pixels
  • Lens: Powered zoom (throw ratio 1.7-2.4:1), powered focus F 1.7-1.9, f 25.6-35.7 mm
    Optional powered zoom/focus lenses and fixed-focus lens available separately
  • Lamp: 310 W UHM lamp x 2
  • Screen size (diagonal):
    • 1.27-15.24 m (50-600 in)
    • 1.27-5.08 m (50-200 in) with the ET-DLE055
    • 2.54-8.89 m (100-350 in) with the ET-DLE030
    • 16:10 aspect ratio
  • Brightness*2: 7,000 Lumens (dual-lamp, LAMP MODE: NORMAL)
  • Center-to-corner uniformity*2: 90 %
  • Contrast*2: 3,000:1 (full on/full off)  2,400:1 (full on/full off)
  • Resolution: 1,280 x 800 pixels (Input signals that exceed this resolution will be converted to 1,280 x 800 pixels.)
  • Scanning frequency:
    • SDI:
      • 3G-SDI: SMPTE ST 424 compliant, [RGB 4:4:4 12-bit/10-bit] 1125(1080)/60i, 1125(1080)/50i, 1125(1080)/25p, 1125(1080)/24p, 1125(1080)/24sF, 1125(1080)/30p, [YPBPR 4:2:2 10-bit] 1125(1080)/60p, 1125(1080)/50p
      • HD-SDI: SMPTE ST 292 compliant, [YPBPR 4:2:2 10-bit] 750(720)/60p, 750(720)/50p, 1125(1035)/60i, 1125(1080)/60i, 1125(1080)/50i, 1125(1080)/25p, 1125(1080)/24p, 1125(1080)/24sF, 1125(1080)/30p
      • SD-SDI: SMPTE ST 259 compliant, [YCBCR 4:2:2 10-bit] 525i(480i), 625i(576i)



  • HDMI*3/DVI-D: fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 25-162 MHz
  • RGB: fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 20-162 MHz
  • NOTE: Illustration below shown in Black Cabinet Finish

  • YPBPR (YCBCR):
    • fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
    • fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
    • fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
    • fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i]
    • fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
    • fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
    • fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
    • fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]
    • fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
    • fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
    • fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
    • fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
    • fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
    • fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
    • fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
  • Video/YC:
    • fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
    • fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
  • Optical axis shift*4:
    • Vertical: +60%, -16% from center of screen (powered)
    • Horizontal: +30%, -10% (+28%, -10% with the ET-DLE085) from center of screen (powered)
  • Keystone correction range  Vertical ±40°*6*7, Horizontal ±15°
  • Keystone correction range with the optional upgrade kit ET-UK20*8:
    • Vertical ±45°*6*7*9,
    • Horizontal ±40°*10  -
  • Installation: Ceiling/floor, front/rear
  • Terminals:
    • SDI IN: BNC x 1 (3G/HD/SD-SDI)  -
    • HDMI IN: HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
    • DVI-D IN: DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
    • RGB 1 IN: BNC x 5 (RGB/YPBPR/YCBCR/YC/Video x 1)
    • RGB 2 IN: D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
    • SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
    • SERIAL OUT: D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
    • REMOTE 1 IN: M3 x 1 for wired remote control
    • REMOTE 1 OUT: M3 x 1 for link control (for wired remote control)
    • REMOTE 2 IN: D-sub 9-pin (female) x 1 for external control (parallel)
    • LAN / DIGITAL LINK: RJ-45 x 1 (for network and DIGITAL LINK (video/network/serial control) connection, 100Base-TX, compatible with Art-Net, compliant with PJLink™,
      Deep Color, compatible with HDCP)
    • USB: DC OUT (5 V, 0.9 A)
  • Cabinet Materials: Molded plastic
  • Dimensions: (without lens) 19-19/32 W x 6-7/8"*11 H x 20" D (498 x 175*11 x 508 mm)
  • Weight*12: (without lens) approximately 37.5 lbs (17.0 kg)
  • Operation noise*2:
    • 30 dB (dual lamp operation, lamp mode: NORMAL)
    • 28 dB (dual lamp operation, lamp mode: ECO)
  • Operating temperature: 32°F - 113°F (0°C - 45°C) (less than 4,593 ft [1,400 m] above sea level), 32°F-104°F (0°C-40°C) (between 4,593 ft and 8,858 ft [1,400 m and 2,700 m] above sea level)*13
  • Operating humidity: 10-80 % (no condensation)
  • Applicable software: Logo Transfer Software, Multi Projector Monitoring & Control Software, Geometry Manager Pro (included in the ET-UK20), ET-CUK10*14  Logo Transfer Software, Multi Projector Monitoring & Control Software

*1 When the STANDBY MODE is set to ECO, network functions such as power on over the LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
*2 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*3 DIGITAL LINK input compatible signal is the same as HDMI input compatible signal.
*4 Optical axis shift cannot be operated with the ET-DLE055, and the optical axis is fixed with the ET-DLE030.
*5 +45 %, -13% from center of screen with the ET-DLE085.
*6 ±22° with the ET-DLE085/DLE055.
*7 +5° with the ET-DLE030.
*8 Up to a total of ±55° during simultaneous horizontal and vertical correction.
*9 ±40° with the ET-DLE150/DLE250/supplied lens.
*10 ±15° with the ET-DLE085/DLE055.
*11 With legs at shortest position.
*12 Average value. May differ depending on models.
*13 When using the projector at elevations lower than 2,700 m (8,858 ft) above sea level, and the operating environment temperature becomes 35 °C (95 °F) or higher, the light output may be reduced to protect the projector. When using the projector at elevations between 2,700 m (8,858 ft) and 4,200 m (13,780 ft), and the operating environment temperature becomes 25 °C (77 °F) or higher, the light output may be reduced to protect the projector.
*14 Available worldwide except in the United States.

NOTES ON USE
    1. Do not install the projector in locations that are subject to excessive water, humidity, steam, or oily smoke. Doing so may result in fire, malfunction, or electric shock.
    2. The projector uses a high-voltage mercury lamp that contains high internal pressure. This lamp may break, emitting a loud sound, or fail to illuminate, due to impact or extended use.
    3. The projector uses of high-wattage lamp that becomes very hot during operation. Please observe the following precautions:
    • Never place objects on top of the projector while it is in operation.
    • Make sure there is an unobstructed space of 500 mm (19-11/16 in) or more around the projector's exhaust openings.
    • Do not stack projector units directly on top of one another for the purpose of multiple (stacked) projection. When stacking projector units, be sure to provide the amount of space indicated between them. These space requirements also apply to installation where only one projector unit is operating at one time and the other unit is used as a backup.
    • If the projector is placed in a box or enclosure, the temperature of the air surrounding the projector must be between 0 °C (32 °F) and 40 °C (104 °F). Also, make sure the projector's intake and exhaust openings are not blocked. Take particular care to ensure that hot air from the exhaust openings is not sucked into the intake.
    4. If the projector is to be operated continuously 24 hours a day / 7 days a week, use the multi-lamp optical system's alternating lamp operation function (Lamp Relay mode). The projector can be operated continuously 24 hours a day / 7 days a week in dual-lamp operation mode. Allow a minimum of two hours per week of non-operation time per lamp if using the dual-lamp operation mode.
    5. The lamp replacement cycle duration becomes shorter if the projector is operated repeatedly for short periods.
    • The length of time that it takes for the lamp to break or fail to illuminate varies greatly depending on individual lamp characteristics and usage conditions.
    • The brightness of the lamp will gradually decrease with use.
    • The usage environment affects the lamp replacement cycle.
    6. Because the ET-DLE055/DLE030 is a fixed short-throw lens, the lens shift function cannot be used with it.
    7. Due to natural characteristics of lamps, screen brightness may vary (flicker). This is not an indication of faulty lamp performance.
