Aviom MIX320-Y Personal Mixing System with Yamaha Interface

Aviom's Mix320-Y Personal Mixing System is a complete personal mixing system for six performers who have their own in-ear monitors, designed for users of Yamaha® digital mixing consoles.

The Y1 A-Net Card plugs into any open MY expansion slot on your Yamaha console. There's nothing to configure—just assign sources from the Yamaha user interface to the card's 16 channels and they will appear on the Personal Mixer's channel buttons. The A320 Personal Mixers get their digital data and power over the same cable, so all you need to do is connect a Cat-5 cable and you're ready to start using the system.

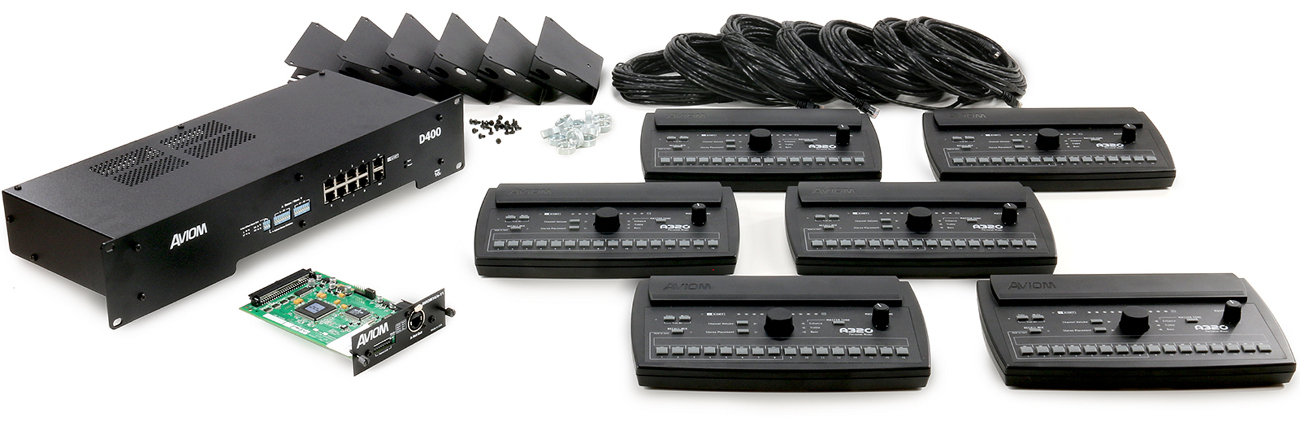

The Mix320-Y Personal Mixing System gets its inputs from a Y1 A-Net card installed in your Yamaha digital mixing console. A D400 A-Net Distributor is used to supply A-Net digital data and DC power to the mixers, and the system includes six A320 Personal Mixers for the performers. It also includes six MT-1a Mic Stand Mounts for attaching the A320 mixers to mic stands, as well as all the Cat-5e cables you'll need to connect the products.

Intuitive Mixing: The A320 Personal Mixer gives performing and recording musicians simple, intuitive control over their monitor mixes. It features 16 mono or stereo mix channel buttons, individual volume controls, and easy-to-use Stereo Placement controls. Plug headphones, ear buds, or a wireless in-ear monitoring system into the Personal Mixer and you're ready to start mixing.

A Simple Digital Console Interface : The Y1 A-Net Card for Yamaha allows up to 16 sources from the console to be assigned as inputs to the personal mixing system. Assign any combination of channels, direct outputs, aux sends, groups, or sub-mixes from the Yamaha console user interface to the Y1 card.

Power and Audio Over Cat-5 : For distributing the A-Net digital data and DC power to the A320 Personal Mixers, the system includes the D400 A-Net Distributor. Just connect the console card to the distributor's A-Net In and use the D400's powered A-Net ports for connecting Personal Mixers.

System Options: The Mix320-Y system is designed specifically for user of Yamaha® digital consoles. If you have a Dante™-enabled console or network, the Mix320-D Personal Mixing System is what you need. It includes the D400-Dante A-Net Distributor instead of the D400 and does not require a separate input device or console card. if you have an analog console or recording system, the Mix320-A Personal Mixing System is what you need. It includes the 16-channel, line-level AN-16/i Input Module as its front end.

The mixing system packages are also easy to expand when you're ready—just add more Personal Mixers and A-Net Distributors as needed.

Note: The Mix320-Y system does not come with in-ear monitors.

Includes

• (1) Y1 A-Net Card for Yamaha
• (1) D400 A-Net Distributor
• (6) A320 Personal Mixers
• (6) MT-1a Mic Stand Mounts
• (7) Cat-5e cables

A320 Specifications

• Audio Output: 1/4" TRS stereo, headphone or line level
• Stereo Mix Output, Headphone/Line:
  • Tip: Audio Left
  • Ring: Audio Right
  • Sleeve: Ground
• A-Net I/O: 1 A-Net In, RJ45 connector; Supports Pro16 and Pro16e
• D/A Conversion: 44.1/48 kHz, 24-bit
• Stereo Operation:
  • Stereo Link, per channel pair
  • Set at the input module
  • Variable pan per mono channel or pan/spread per stereo channel pair
• Headphone Output: 275 mW per side into 50 Ω (both sides driven)
• Output Impedance: 5 Ω
• Freq. Response: 3 Hz - 22 kHz +0.2 dB/-3 dB at 50 Ω
• THD +N: < 0.003%
• Output Voltage for Personal Mixers:
  • 24VDC, 0.5 amp
  • Transmitted over the Cat-5e cable
• Signal to Noise (unweighted): -106 dB (measured with zero data into all channels)
• Latency: 0.880 msec (measured from analog input to analog output)
• Pro16e A-Net:
  • Use Cat-5e (or better) cable
  • Maximum 400ft (122m) between devices
  • Supports Power Over A-Net
• Cat-5 cable: Use shielded Cat-5e (or better) cable to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits.
• Power:
  • 24 VDC, 0.5 amp
  • Power is supplied over the Cat-5 cable when connected to an Aviom A-Net Distributor
• Dimensions (W x D x H): 10.26" x 6.14" x 1.91" (260.6 x 155.95 x 48.51mm)
• Weight: 1.3 lbs. (0.59 kg)
• Options: MT-1a Mic Stand Mount

Y1 A-Net Card Specifications

• A-Net Pro16 Output: 16 channels of A-Net digital data; 8 channels on PM1D
• Interface Format: Yamaha mini-YGDAI (MY) Expansion Card
• Maximum Expansion: Limited only by the number of available MY expansion slots in the digital mixer
• Sample Rate: 44.1 kHz to 48 kHz, +/-10%
• Digital Conversion: 24-bit
• A-Net Output: A-Net Out: 1; EtherCon® RJ45 connector
• DIP Switch:
  • Switch 1-8: Stereo Link on/off
  • Switch 9-10: A-Net mode
• A-Net Modes: 8-channel, 16-channel, Aviom, Test
• A-Net Pro16:
  • A-Net allows 16 channels of audio to be transmitted over one Cat-5e cable
  • use unshielded Cat-5e UTP (or better) cable
  • max. length 500ft (150m) between devices
• Latency:
• Power Supply: none required; uses Yamaha host device as source of power
• Dimensions (W x D x H): 4.75" x 6.25" x 1.5" (120.7 x 158.8 x 38.1mm)
• Weight: 0.8 lbs. (0.36 kg)
• Options: SB4 System Bridge; used to combine up to four A-Net streams for transmission over one Cat-5e cable (requires D800 or D800-Dante A-Net Distributor)

D400-Dante Specifications

• Dante Interface: 32 channels (44.1/48 kHz Sample Rate)
• Dante Primary I/O: RJ45 connector
• Dante Secondary I/O: RJ45 connector
• Dante LEDs: Network Activity (green); 1GB Network Connection Active (yellow)
• A-Net Out to Personal Mixers: Eight RJ45 connectors, powered
• A-Net Out:
  • Pro16e A-Net
  • RJ45 connector, unpowered
• LEDs: Power On (red); Network Sync (green)
• Stereo Link: Two 8-position DIP switch blocks (1-16,17-32)
• Output Voltage for Personal Mixers:
  • 24VDC, 0.5 amp
  • Transmitted over the Cat-5e cable
  • A-Net Cables: Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits. Unshielded Cat-5e cable may be used on all rear panel connections
• Power Supply: Internal, IEC connector
• Input Voltage: 100-120 VAC or 200-240 VAC (with selector switch); 50-60Hz @220 W max
• AC Fuse Types:
  • 115V range: T2.5AL/250V
  • 230V range: T1.25AL/250V
• Dimensions (W x D x H): 19" x 7.386" x 3.5" (2U) (482.6 x 88.9mm)
• Weight: 12 lbs. (5.44 kg)
