Product Overview
Aviom’s Mix320-A Personal Mixing System includes everything you need to create a 16-input personal mixing system for six performers who have their own in-ear monitors.. Connect its balanced analog inputs to a mixing console for live use or to the outputs of your DAW recording interface or console to create a studio cue system. The A320 Personal Mixers get their digital data and power over the same cable, so all you need to do is connect a Cat-5 cable and you're ready to start using the system.
The Mix320-A Personal Mixing System features the analog AN-16/i v.2 Input Module as the front end of the system, a D400 A-Net Distributor to supply A-Net digital data and DC power to the mixers, and six A320 Personal Mixers for the performers. It also includes six MT-1a Mic Stand Mounts for attaching the A320 mixers to mic stands, as well as all the Cat-5e cables you'll need to connect the products.
Intuitive Mixing - The A320 Personal Mixer gives performing and recording musicians simple, intuitive control over their monitor mixes. It features 16 mono or stereo mix channel buttons, individual volume controls, and easy-to-use Stereo Placement controls. Connect headphones, ear buds, or a wireless in-ear monitoring system to the Personal Mixer and you're ready to start mixing.
Analog Front End - The analog AN-16/i v.2 Input Module allows up to 16 line-level signals to be connected as the inputs to the personal mixing system. Each channel features a 1/4-inch TRS balanced input and thru jack that make it easy to interface with direct outs, aux sends, or insert points on your mixing console or recording interface. Analog audio is converted to 48kHz, 24-bit A-Net digital data for distribution to the Personal
Mixers - Power and Audio Over Cat-5. For distributing the A-Net digital data and DC power to the A320 Personal Mixers, the Mix320-A system includes the D400 A-Net Distributor. The D400 has A-Net In and Out jacks plus eight powered A-Net ports for Personal Mixers.
System Options - The Mix320-A system is designed around an analog front end, the AN-16/i v.2. If you use a digital console, check out the Mix320-Y Personal Mixing System which includes a Y1 card for Yamaha® consoles instead of the analog inputs. Or, if you have a Dante™-enabled console or network, the Mix320-D Personal Mixing System is what you need. It includes the D400-Dante A-Net Distributor instead of the D400 and does not require a separate input device or console card. The mixing system packages are also easy to expand when you're ready—just add more Personal Mixers and A-Net Distributors as needed.
Note: The Mix320-A does not come with in-ear monitors.

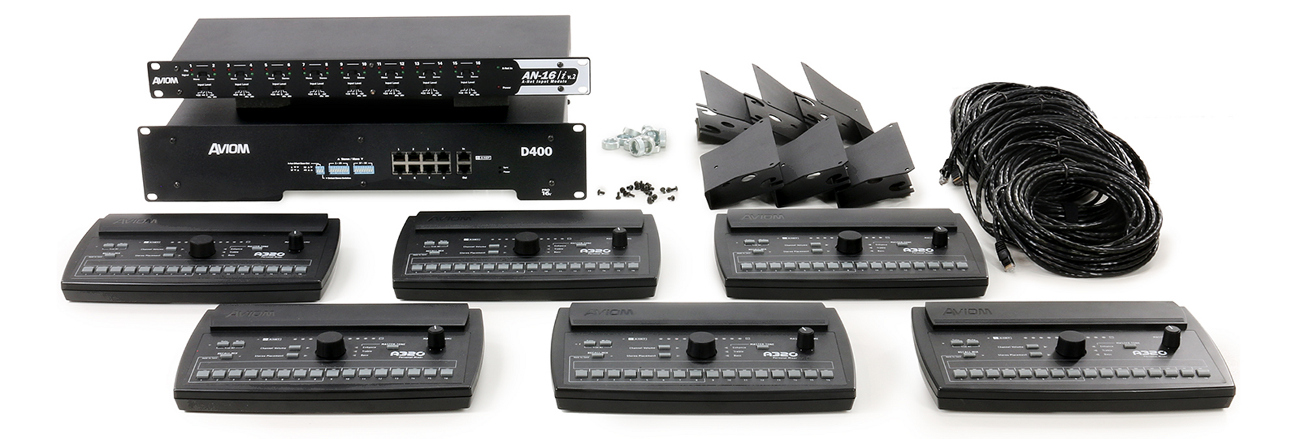

Includes
- (1) An-16/i v.2 Input Module
- (1) D400 A-Net Distributor
- (6) A320 Personal Mixers
- (6) MT-1a Mic Stand Mounts
- (7) Cat-5e cables
A320 Specifications
- Audio Output: 1/4" TRS stereo, headphone or line level
- Stereo Mix Output, Headphone/Line:
- Tip: Audio Left
- Ring: Audio Right
- Sleeve: Ground
- A-Net I/O: 1 A-Net In, RJ45 connector; Supports Pro16 and Pro16e
- D/A Conversion: 44.1/48 kHz, 24-bit
- Stereo Operation:
- Stereo Link, per channel pair
- Set at the input module
- Variable pan per mono channel or pan/spread per stereo channel pair
- Headphone Output: 275 mW per side into 50 Ω (both sides driven)
- Output Impedance: 5 Ω
- Freq. Response: 3 Hz - 22 kHz +0.2 dB/-3 dB at 50 Ω
- THD +N: < 0.003%
- Output Voltage for Personal Mixers:
- 24VDC, 0.5 amp
- Transmitted over the Cat-5e cable
- Signal to Noise (unweighted): -106 dB (measured with zero data into all channels)
- Latency: 0.880 msec (measured from analog input to analog output)
- Pro16e A-Net:
- Use Cat-5e (or better) cable
- Maximum 400ft (122m) between devices
- Supports Power Over A-Net
- Cat-5 cable: Use shielded Cat-5e (or better) cable to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15
- Class B emissions limits
- Power:
- 24 VDC, 0.5 amp
- Power is supplied over the Cat-5 cable when connected to an Aviom A-Net Distributor
- Dimensions (W x D x H): 10.26" x 6.14" x 1.91" (260.6 x 155.95 x 48.51 mm)
- Weight: 1.3 lbs. (0.59 kg)
- Options: MT-1a Mic Stand Mount
AN-16/i v.2 Specifications
- Audio Inputs: 16, balanced line-level, 1/4-inch TRS connector
- Inputs:
- Tip: Audio +
- Ring: Audio -
- Sleeve: Ground
- TRS Thru: Impedance matched output
- Analog to Digital Conversion: 48 kHz sample rate, 24-bit
- Frequency Response: 4 Hz - 22 kHz
- A- Net In:
- One Category 5 (RJ45 connector)
- Four-position slot range selector switch for use with Pro16e A-Net
- A-Net Out One Category 5 (RJ45 connector)
- Gain Settings: Four-position switch, -10 dBv, 0 dBu,+4 dBu, and +22 dBu
- Channel LED Indicators: Signal Present and Clip, per channel
- Line Inputs Impedance: 48k ohms
- Metering: LEDs; green: Signal Present, red: Clip; per channel
- Stereo Operation:
- Stereo Link, per channel pair;
- Two-position switch (Normal, Link)
- Maximum Input Level: +22 dBu
- Input Impedance: 17.8 kΩ
- Freq. Response: 4 Hz - 22 kHz +0.2 dB/-3 dB
- THD +N: < 0.003%
- Crosstalk: -90dB
- Bit Error Rate (BER): 10 (-12)
- Signal to Noise (unweighted):
- 90dB typical, A/D to D/A
- Measured from AN-16/i to AN-16/o Output Module
- Digital Outputs: A-Net: 1; RJ45 connector
- Pro16e A-Net: Use unshielded Cat-5e UTP (or better) cable
- Latency:
- Power Supply
- Input Voltage: 100-240 volts, 50/60Hz, 30VA
- Output Voltage: 18-24 VDC, 0.5 amp
- Plug Size: 2mm
- Power: 18-24 VDC, 500mA
- Dimensions (W x D x H): 19" x 5.75" x 1.75" (1U ) (482.6 x 146 x 44.5mm)
- Weight: 6.8 lbs. (3.08 kg)
D400 Specifications
- A-Net Input:
- Pro16 or Pro16e A-Net
- RJ45 connector
- A-Net Offset Base Slot:
- 2-position DIP switch selects the starting channel that Personal Mixers will receive from the network (1, 17, 33, or 49)
- Defeat Stereo Switches: Chooses between local (front panel) stereo links (up) or network stereo links (down)
- A-Net Out to Personal Mixers: Eight RJ45 connectors, powered
- A-Net Out:
- Pro16e A-Net
- RJ45 connector, unpowered
- LEDs: Power On (red); Network Sync (green)
- Stereo Link: Two 8-position DIP switch blocks (1-16, 17-32)
- Output Voltage for Personal Mixers:
- 24VDC, 0.5 amp
- Transmitted over the Cat-5e cable
- A-Net Cables: Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits. Unshielded Cat-5e cable may be used on all rear panel connections
- Power Supply: Internal, IEC connector
- Input Voltage: 100-120 VAC or 200-240 VAC (with selector switch); 50-60Hz @220 W max
- AC Fuse Types:
- 115V range: T2.5AL/250V
- 230V range: T1.25AL/250V
- Dimensions (W x D x H): 19" x 7.386" x 3.5" (2U) (482.6 x 187.6 x 88.9mm)
- Weight: 12.0 lbs. (5.44 kg)
