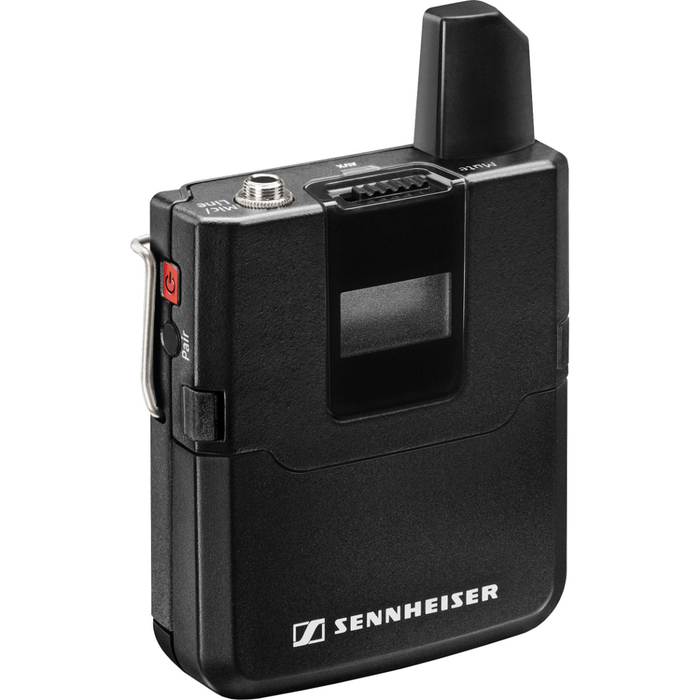

Sennheiser SK AVX
Bodypack Transmitter (505865)

OUR PART #:  SK-AVX-4

The Sennheiser SK AVX Bodypack Transmitter features self configuring digital transmission which eliminates time-consuming radio frequency setup.
Learn More
Our Price: $349.95
List Price: $436.95
You save 20%!
Write the first review.
Sennheiser SK AVX
Qty:
Usually ships in 7-14 business days.

Related Products

The Sennheiser SK AVX Bodypack Transmitter features self configuring digital transmission which eliminates time-consuming radio frequency setup. The AVX matches perfectly to your camera's input sensitivity without having to adjust the audio level on the microphone.

Sennheiser SK AVX Body Transmitter Features:

  • Very fast setup
  • Plugs directly into XLR audio input
  • Ultra compact receiver
  • Switches on/off by P48 Phantom power
  • Optimized dynamic range
  • Auto frequency management
  • AES 256 encryption
  • License free
  • Accesories included for DSLR use
  • Metal housing
  • Made in Germany

Sennheiser SK AVX Body Transmitter Specifications:

System

  • Frequency Response:
    • Mic: 50 to 20 kHz
    • Line: 20 to 20 kHz
  • Dynamic Range: > 120 dB (A)
  • THD: Typical 0.1%
  • Audio Sampling: 24-bit at 48 kHz
  • Signal-to-noise Ratio: > 90 dB (A)
  • RF Frequency Range: 1880 to 1930 MHz (country-specific)
  • Modulation: GFSK with return channel
  • Diversity: TDMA fast switching antenna diversity
  • Latency: 19 ms
  • Temperature Range:
    • Operation: 14 to 131°F (-10 to 55°C)
    • Storage: -4 to 158°F (-20 to + 70°C )

Transmitter

  • Transmission Power:100 mW average (250 mW peak), country specific
  • Frequency Response:
    • Mic: 50 Hz to 20 kHz
    • Line: 20 Hz to 20 kHz
  • Microphone Max Input Level  Mic: 2.2 V RMS
  • Line Max Input Level  3.3 V RMS
  • Input Impedance  1 MOhm
  • Input Sensitivity  Automatic sensitivity adjustment
  • Power Supply  Energy pack BA 30 (Li-ION 3.7 V)
  • Operating Time  Typical: 15 hour with Energy pack
  • Input Connector  1/8" (3.5 mm) jack
  • Weight  3.1 oz. (87 g) excluding energy pack

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at www.fcc.gov/wireless-microphones-guide or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
